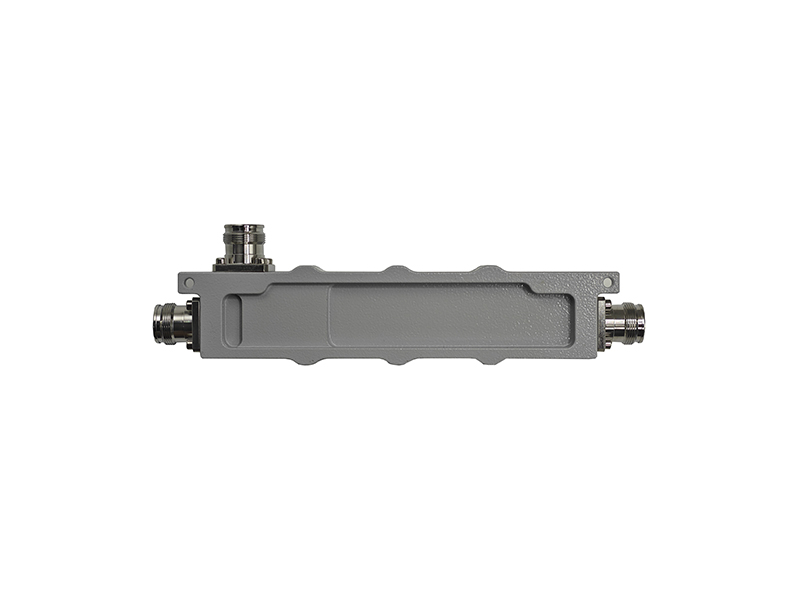

Part Number | HT-DC-03/527-43F | ||||||
Operating Frequency ( MHz ) | 350/380-2700MHz | ||||||
Impedance ( Ohm ) | 50 | ||||||
VSWR | ≤1.25 | ||||||
Coupling (dB)@x | 6 ± 1.2 | 7 ± 1.2 | 8± 1.2 | 10± 1.2 | 15 ± 1.5 | 20 ± 1.7 | 30 ± 1.8 |
Insertion Loss (dB) | ≤1.8 | ≤1.5 | ≤1.1 | ≤.0.9 | ≤0.4 | ≤0.2 | ≤0.17 |
Isolation (dB) | ≥24 | ≥25 | ≥26 | ≥28 | ≥33 | ≥28 | ≥48 |
IM3 (dBc @ 2×43dBm)@xxx | -160 / -163 | ||||||
Application | Indoor/Outdoor | ||||||
Degree of Protection | IP65 | ||||||
Operating Temperature ( ℃ ) | -40 ~ + 80 | ||||||
Interface | 4.3-10 Female | ||||||
Handling Power (Watt, max) | 500 | ||||||
Peak Power | 1500 (Watt, max) | ||||||

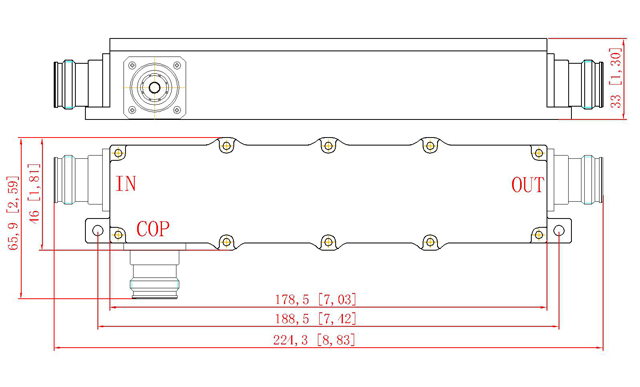

Dimension (mm) | 182.5 × 44× 31 | ||||||
Net Weight (g) | 775± 5% | ||||||
Packing Dimensions (mm) | 240 × 80 × 35 | ||||||
Packing Carton Size (mm) | 500 × 420 × 160 | ||||||
ROHS Compliance | Yes | ||||||
Revision | R2 | ||||||
Date | 26-Oct-2022 | ||||||
