Specifications :

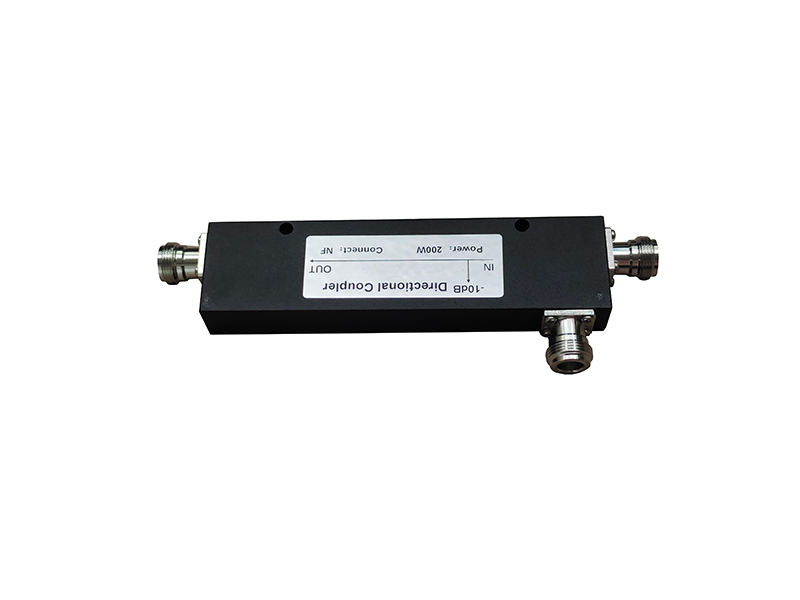

Model No. | HT-DC-VHF-136/174-N | |||
Frequency (MHz) | 136～174MHz | |||
Coupling (dB) | 6 | 10 | 15 | 20 |
Accuracy | ±1.0 | ±1.0 | ±1.2 | ±1.5 |
Insertion loss(dB) | ≤1.7 | ≤0.85 | ≤0.45 | ≤0.30 |
VSWR | ≤1.30：1 | |||
Directivity(dB) | ≥20 dB | |||
Power | 200 W | |||
Connector | N-Female | |||
Impedance | 50Ω | |||
Protection Grade | IP54 | |||
Operation temperature | -35℃～+65℃ | |||
Color | Black | |||
HT part code | 6608684311 | |||
We take pride in our customer service and aim to provide 5-star support. If you have any questions about our products, feel free to call or email us.
Call 24Hr / 7Days
+86 198-2655-1792Directional couplers are essential components used in RF (radio frequency) and microwave systems to sample and monitor signals while maintaining specific characteristics of the main signal path. Key Features of Our Directional Couplers: 1:Wide frequency range : We can provide VHF , UHF, 2G/3G/4G/5G application , frequency can up to 18GHz. 2:High Coupling and Isolation: Our directional couplers provide precise coupling ratios and excellent isolation between input and output ports, ensuring accurate signal monitoring and measurement.
