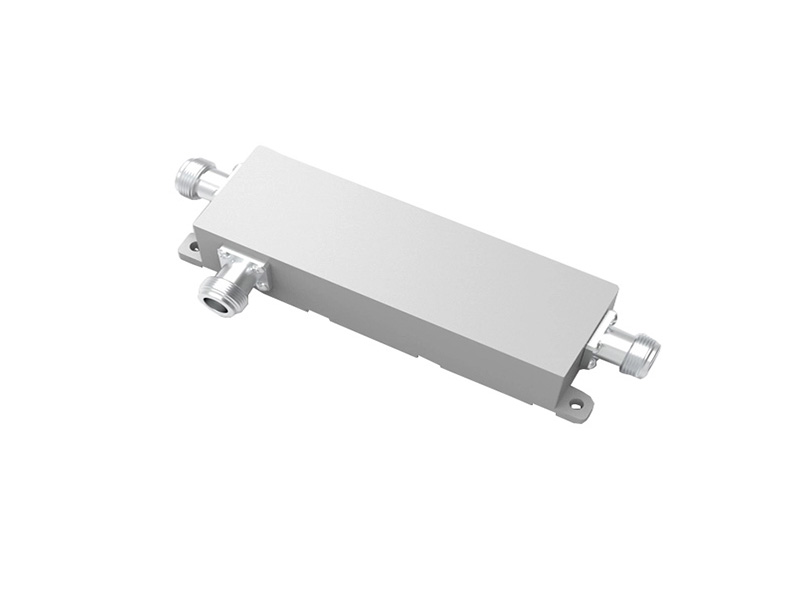

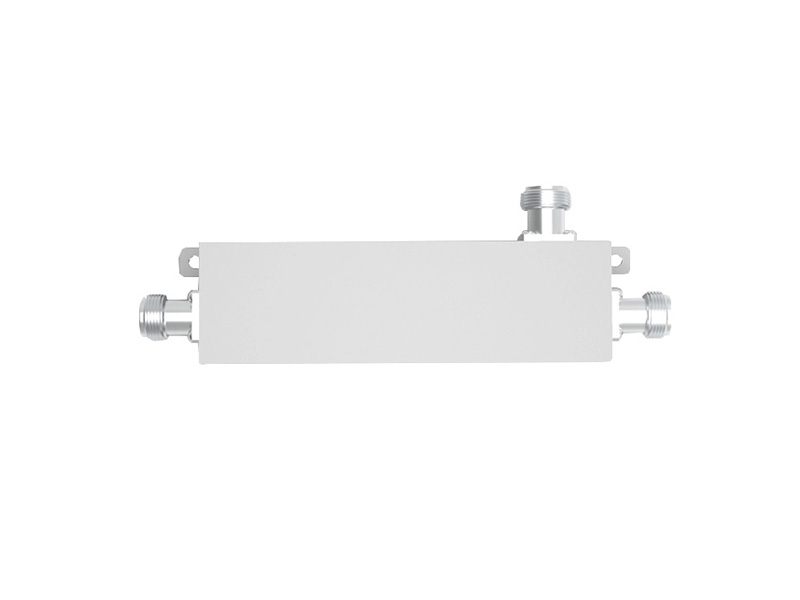

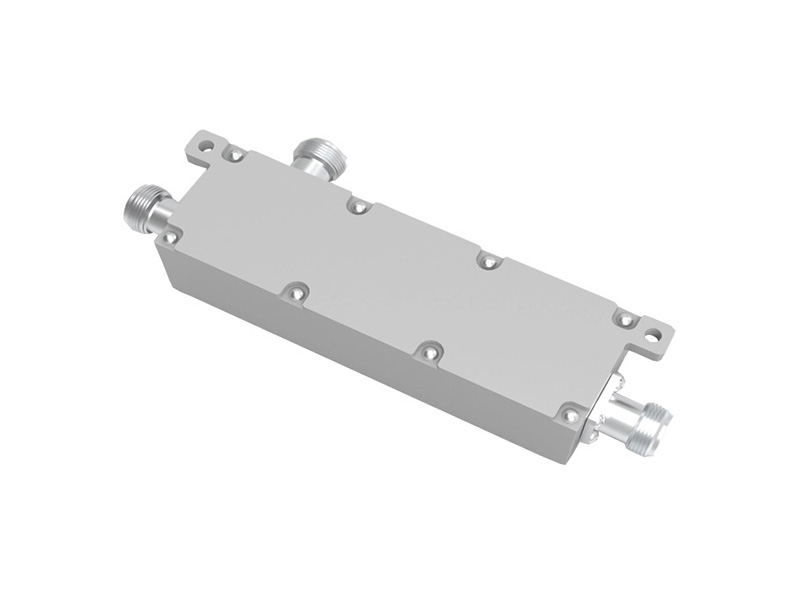

l Wide frequency range 550 to 6000 MHZ for 2G/3G/4Gapplications ·
l Low passive intermodulation 160dBc·
l Low VSWR & insertion loss ·
l Indoor & outdoor use; IP65
Specifications :
Part No. | HT-DC-5560-43F | |||||
Operating Frequency ( MHz ) | 550-6000MHz | |||||
Impedance ( Ohm ) | 50 | |||||
VSWR | ≤ 1.3 | |||||
Coupling (dB)@x | 5 | 6 | 8 | 10 | 15 | 20 |
Tolerance | ± 1.4 | ± 1.4 | ± 1.4 | ± 1. 6 | ± 1.6 | ± 1.6 |
Insertion Loss (dB) | ≤2.2 | ≤ 1.8 | ≤1.1 | ≤ 0.8 | ≤0.22 | ≤0.2 |
Isolation (dB) | ≥21 | ≥22 | ≥24 | ≥26 | ≥31 | ≥36 |
IM3 (dBc @ 2×43dBm) | -160 | |||||
Application | Indoor/Outdoor | |||||
Degree of Protection | IP65 | |||||
Operating Temperature ( C ) | -40 ~ + 80 | |||||
Interface | 4.3-10 Female | |||||
Handling Power (Watt) max) | 300 | |||||
Peak Power | 1200 (Watt, max) | |||||
Dimension (mm) | 127×40×31 | |||||
Net Weight (g) | 450± 5% | |||||

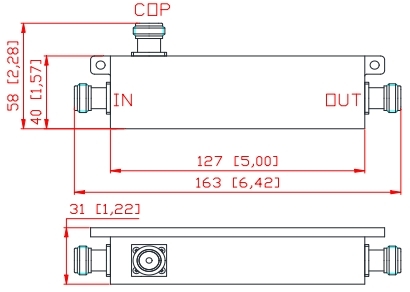

Outline Drawing :
