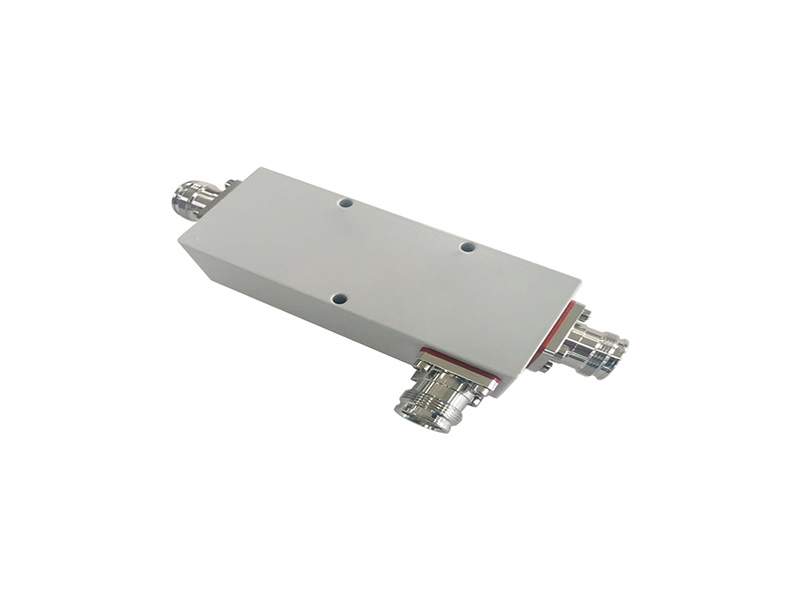

l Wide frequency range 694 to 3800 MHZ ·
l Low passive intermodulation 160dBc·
l Low VSWR & insertion loss ·
l Indoor & outdoor use; IP65
Specifications :
Part number (BN) 4.3-10Female(50Ohms) | 9518400150 | 9518400151 | 9518400152 | 9518400153 | 9518400154 | 9518400155 | 9518400156 | 9518400157 | 9518400150 | |
Part number (BN) 7-16Female(50 Ohms) | 9518400170 | 9518400171 | 9518400172 | 9518400173 | 9518400174 | 9518400175 | 9518400176 | 9518400177 | 9518400170 | |
Part number (BN) N-Female (50 Ohms) | 9518400170 | 9518400171 | 9518400172 | 9518400173 | 9518400174 | 9518400175 | 9518400176 | 9518400177 | 9518400170 | |
Electrical | ||||||||||
Frequency range (MHz) | 694-3800 | |||||||||
Couple(dB) | 4.8 | 6 | 7 | 8 | 10 | 13 | 15 | 20 | 30 | |
+1.2/-0.8 | ±1.0 | ±1.0 | ±1.0 | ±1.0 | ±1.0 | ±1.0 | ±1.0 | ±1.0 | ||
Nsertion loss(dB) | 2.2 | 1.75 | 1.4 | 1.3 | 1.1 | 0.7 | 0.5 | 0.3 | 0.3 | |
Splitting ratio | 1:0.33: 0.67 | 1:0.25: 0.75 | 1 : 0.2 : 0.8 | 1 :0.16 : 0.84 | 1 : 0.1 : 0.9 | 1 :0.05 : 0.95 | 1 :0.03 : 0.97 | 1 :0.01 : 0.99 | 1 :0.001 : 0.999 | |
Directivity(dB) | ≥18 dB | ≥18 dB | ≥18 dB | ≥18 dB | ≥18 dB | ≥17 dB | ≥17 dB | ≥15 dB | ≥15 dB | |
VSWR | ≤1.3 | |||||||||
Ower rating | 4.3 -10 Female ≤ 300 W 7-16 Female ≤ 500 W N-Female ≤ 300 W | |||||||||
IM - value 3rd order with 2 x 20 W | ≤ -155 dBc | typical ≤ -160 dBc| typical ≤ -160 dBc | |||||||||
DC-by-pass | Port 1 to Port 2 (max. 1A per input max. 60V DC(AISG Standard, 2.0, § 6.4)) | |||||||||
Environmental | ||||||||||
Temperature range | -40 °C to +80 °C | |||||||||
Application | Outdoor (IP65) | |||||||||
Mechanical | ||||||||||
Color | Grey | |||||||||
Weight(kg) | 4.3 -10 Female 0.55 kg N Female 0.35 kg 7-16 Female 0.66 kg | |||||||||
Dimension(mm) | See drawing | |||||||||

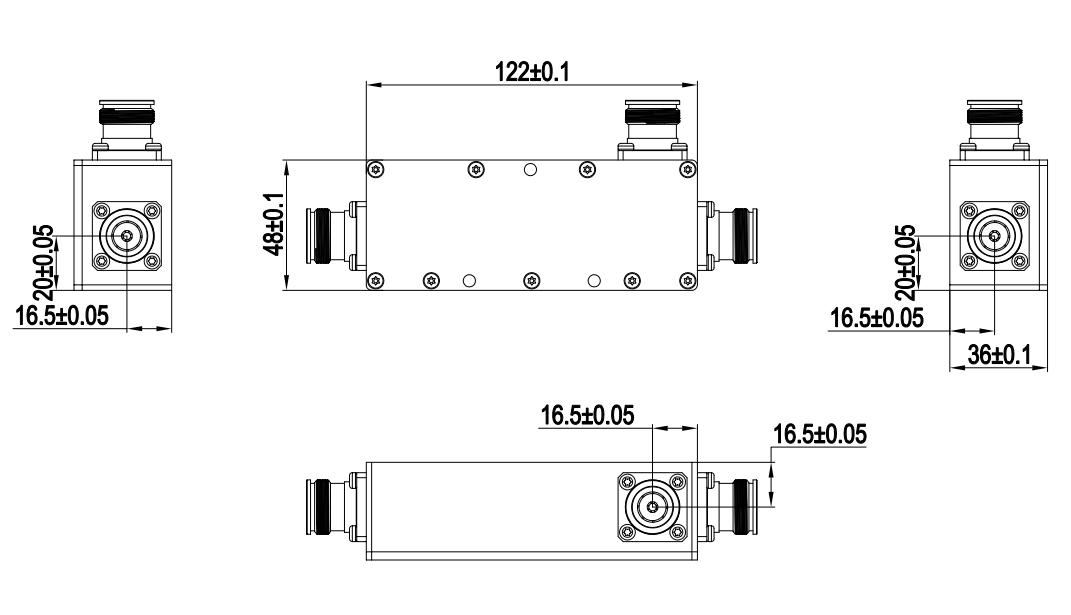

Outline drawing :
