l Strip-line and air-dielectric design
l Frequency 600-4200MHz,617-4200MHz
l Distributed Antenna System (DAS)
In-building wireless signal coverage solution
Specifications :
Part No. | HT-DC-0642-43F | |||||
Operating Frequency ( MHz ) | 600-4200MHz | |||||
Impedance ( Ohm ) | 50 | |||||
VSWR | ≤ 1.25 | |||||
Coupling (dB)@x | 5 | 6 | 10 | 15 | 20 | 30 |
Tolerance | ± 1.2 | ± 1.2 | ± 1.2 | ± 1. 5 | ± 1.7 | ± 1.8 |
Insertion Loss (dB) | ≤2.3 | ≤ 1.8 | ≤ 0.8 | ≤ 0.6 | ≤0.4 | ≤0.2 |
Isolation (dB) | ≥23 | ≥24 | ≥28 | ≥33 | ≥38 | ≥45 |
IM3 (dBc @ 2×43dBm) | -150/-153/-160 | |||||
Application | Indoor/Outdoor | |||||
Degree of Protection | IP65 | |||||
Operating Temperature ( C ) | -40 ~ + 80 | |||||
Interface | N - Female | |||||
Handling Power (Watt) max) | 500 | |||||
Peak Power | 1500 (Watt, max) | |||||
Dimension (mm) | 138×44×31.5 | |||||

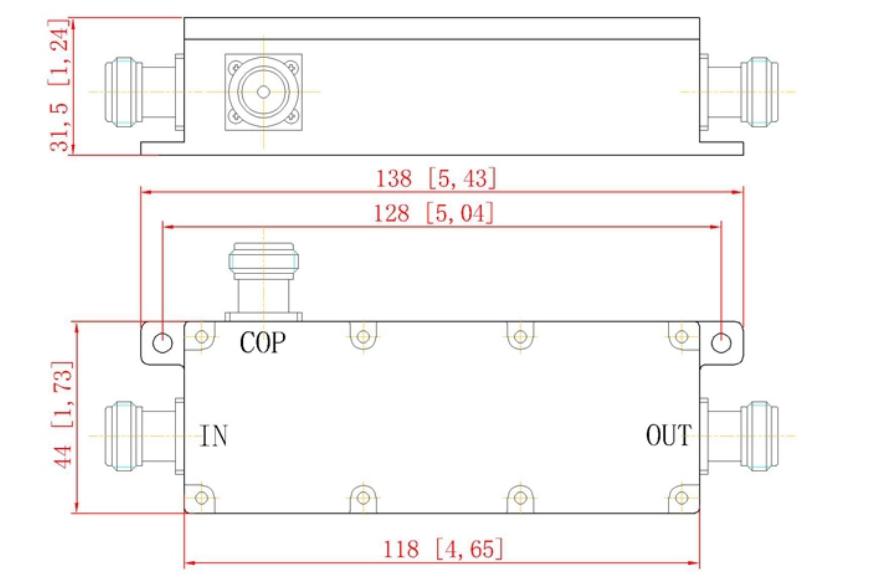

Outline Drawing :
