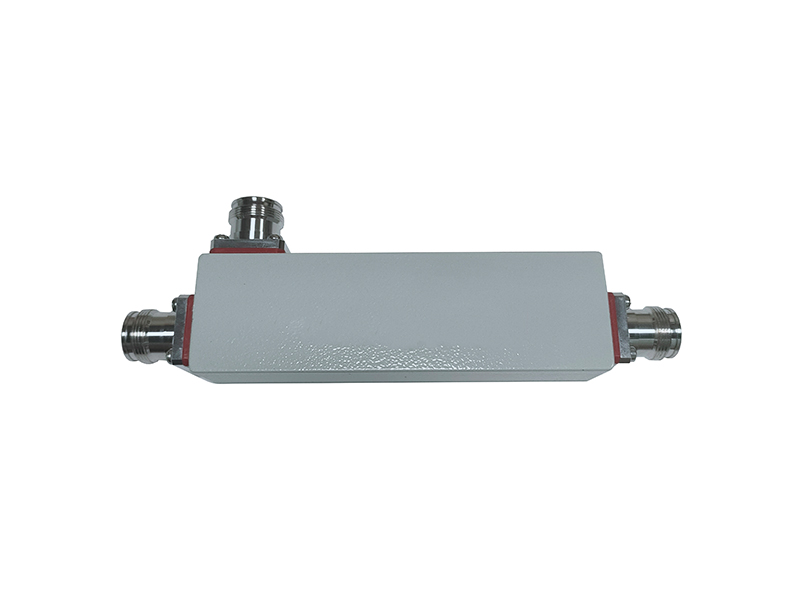

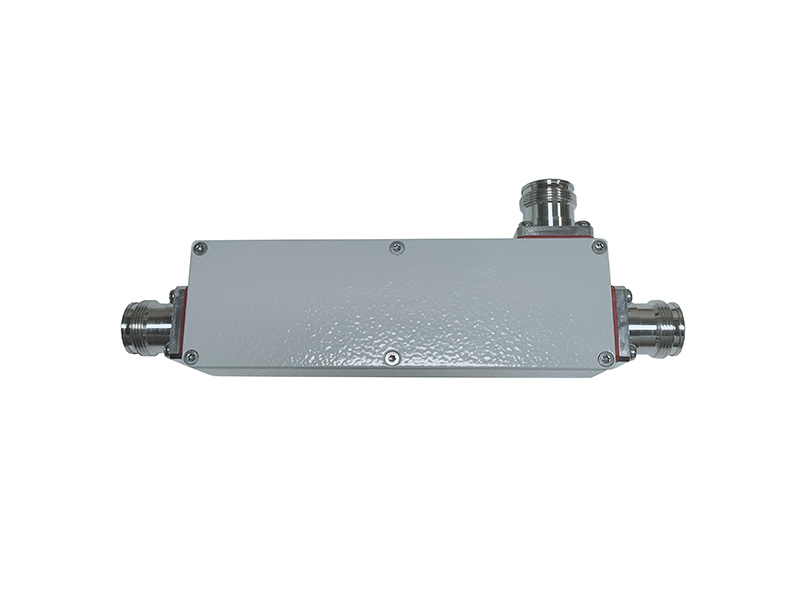

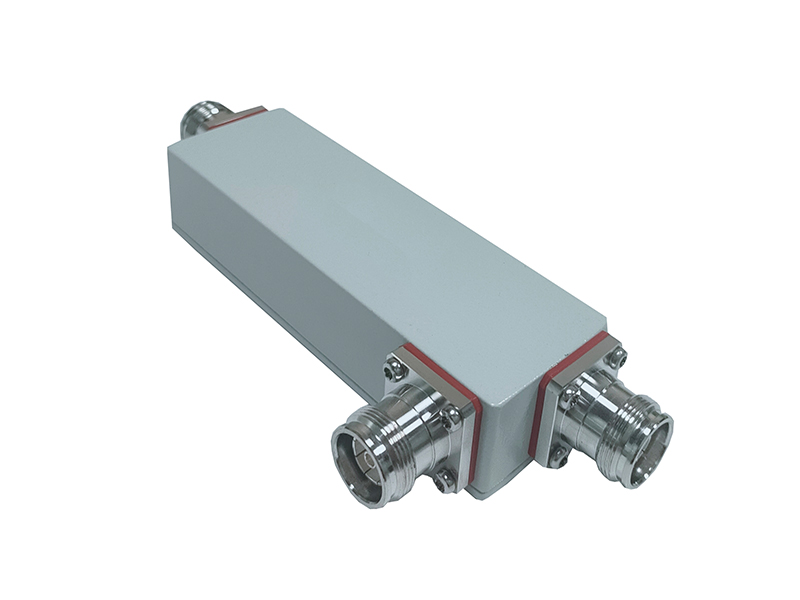

698-3800MHz DC Coupler 6dB /8dB /10dB /13dB /15dB /20dB
Wide frequency range 698 to 3800 MHZ ·
Low passive intermodulation 155dBc·
Low VSWR & insertion loss ·
Indoor & outdoor use; IP65
Specifications :
Part number : | DC-0638- 06-43F-155 | DC-0638-08-43F-155 | DC-0638- 10-43F-155 | DC-0638- 13-43F-155 | DC-0638- 15-43F-155 | DC-0638- 20-43F-155 |
Electrical | ||||||
Frequency range (MHz) | 698-3800 | |||||
Couple(dB) | 6 | 8 | 10 | 13 | 15 | 20 |
±1.2 | ±1.2 | ±1.2 | ±1.5 | ±1.5 | ±1.5 | |
Nsertion loss(dB) | 2.1 | 1.5 | 1.1 | 0.7 | 0.6 | 0.4 |
Isolation | ≥21 dB | ≥23 dB | ≥25 dB | ≥28 dB | ≥30 dB | ≥33 dB |
VSWR | ≤1.3 | |||||
Power Rating | 300 W | |||||
Impedance | 50Ω | |||||
PIM - value 3rd order with 2 x 20 W | ≤ -155 dBc | |||||
DC Characteristic | DC by pass P1 to P2,DC by pass P1 to P3 | |||||
Environmental | ||||||
Connector | 4.3-10 Female | |||||
Temperature range | -30 °C to +60 °C | |||||
Application | Outdoor (IP65) | |||||
Mechanical | ||||||
Color | Black | |||||
Dimension(mm) | 136.3mm*43*28.5mm | |||||

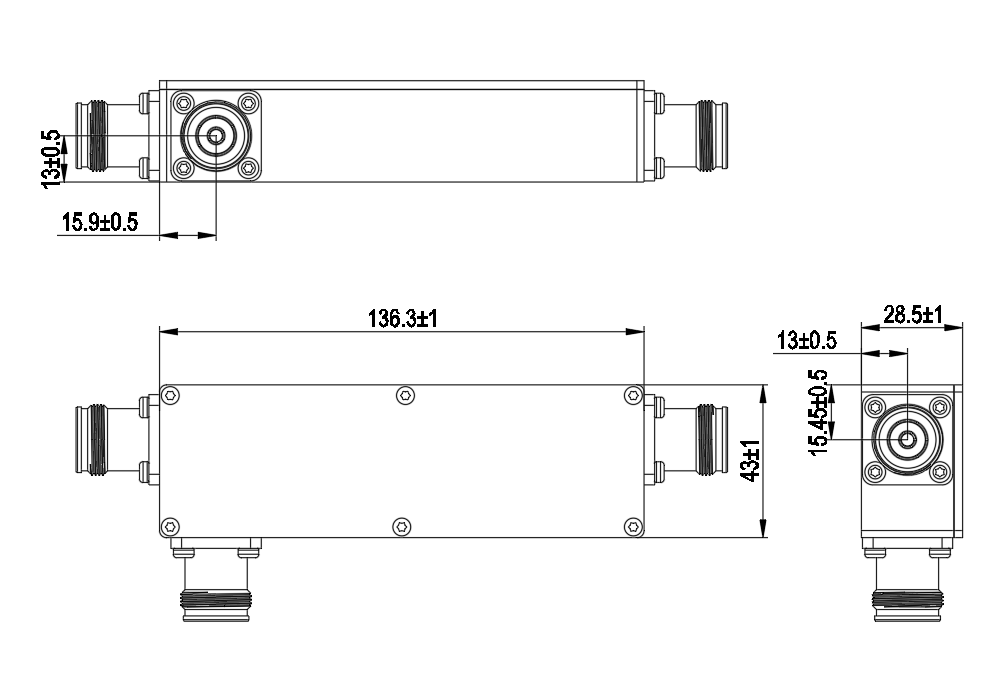

Outline drawing :
