Wide frequency range 698 to 4000 MHZ
Low passive intermodulation -155dBc·
Low VSWR & insertion loss ·
Indoor & outdoor use; IP65
Connector Type 4.3/10 Available
Specifications :
Model No. | HTCP-0640-XX-43-500W | ||||||
Frequency | 698-3599/3600-4000MHz | ||||||
Coupling(dB) | 6 | 8 | 10 | 13 | 15 | 20 | 30 |
Insertion loss(dB)698-3599MHz | ≤1.85 | ≤1.6 | ≤1.0 | ≤0.9 | ≤0.7 | ≤0.6 | ≤0.6 |
Insertion loss(dB)3600-4000MHz | ≤1.95 | ≤1.7 | ≤1.1 | ≤1.0 | ≤0.8 | ≤0.7 | ≤0.7 |
Accuracy(dB) | ±1.0 | ±1.0 | ±1.2 | ±1.3 | ±1.3 | ±1.4 | ±1.7 |
Isolation(dB) | ≥22 | ≥23 | ≥26 | ≥28 | ≥30 | ≥35 | ≥43 |
VSWR | ≤1.30(698-3600) ≤1.35(3600-4000) | ||||||
PIM (dBc)@2*43dbm | ≤-155dBc | ||||||
Input power (W) | 500 W (avg.) | ||||||
Impedance (Ω) | 50 Ω | ||||||
Connector | 4.3-10 Female | ||||||
Color | Black | ||||||
Temp（℃） | -30 °C to +65 °C | ||||||
Relative humidity | 5% - 95% | ||||||
Application | Indoor or outdoor (IP65) | ||||||
Weight(kg) | 0.55 | ||||||
Dimensions(mm) | 122*48*36(without connectors) | ||||||

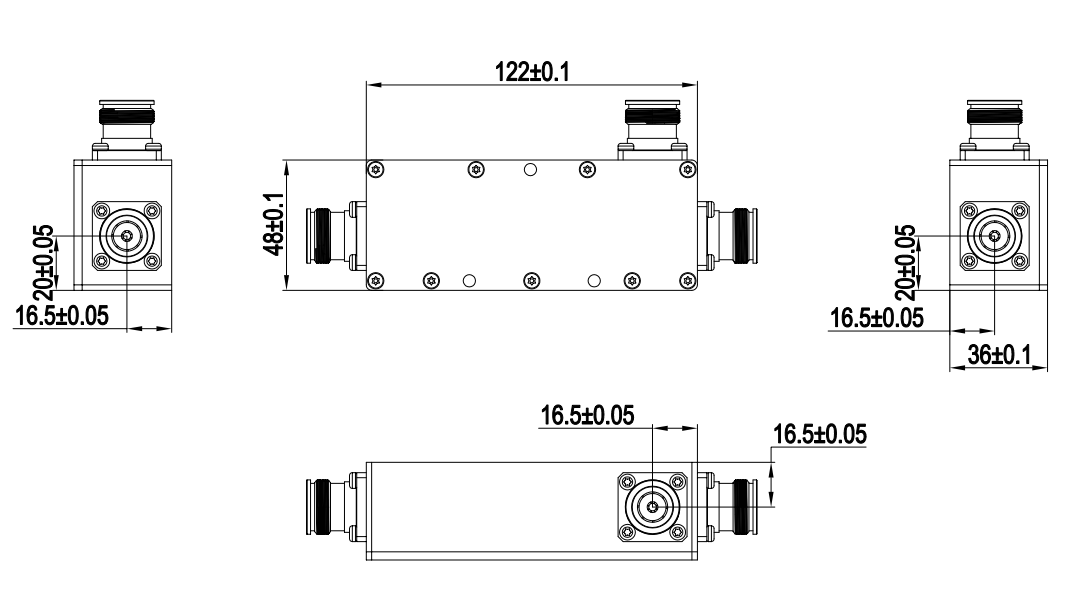

Outline drawing
