l Wide frequency range 550 to 2700 MHZ for 2G/3G/4Gapplications ·
l Low passive intermodulation 160dBc·
l Low VSWR & insertion loss ·
l Indoor & outdoor use; IP65
Specifications :
Part No. | HT-DC-5527-43F | |||||
Operating Frequency ( MHz ) | 550-2700MHz | |||||
Impedance ( Ohm ) | 50 | |||||
VSWR | ≤ 1.25 | |||||
Coupling (dB)@x | 5 | 6 | 7 | 10 | 15 | 20 |
Tolerance | ± 0.9 | ± 0.9 | ± 0.9 | ± 1. 1 | ± 1.5 | ± 1.5 |
Insertion Loss (dB) | ≤2.2 | ≤ 1.7 | ≤ 1.3 | ≤ 0.8 | ≤0.4 | ≤0.2 |
Isolation (dB) | ≥25 | ≥26 | ≥27 | ≥30 | ≥35 | ≥40 |
IM3 (dBc @ 2×43dBm) | -160 | |||||
Application | Indoor/Outdoor | |||||
Degree of Protection | IP65 | |||||
Operating Temperature ( C ) | -40 ~ + 80 | |||||
Interface | 4.3-10 Female | |||||
Handling Power (Watt) max) | 500 | |||||
Peak Power | 1500 (Watt, max) | |||||
Dimension (mm) | 127×40×31.5 | |||||
Net Weight (g) | 540± 5% | |||||

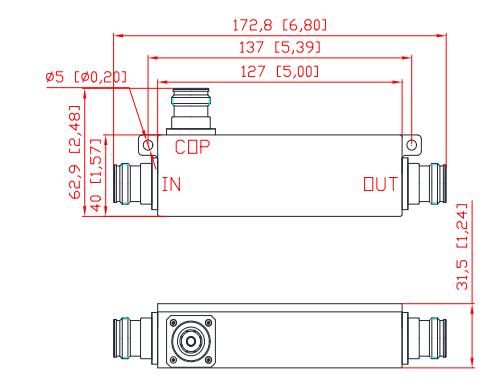

Outline Drawing :
