Low Passive Inter-modulation 155 dBc
Low VSWR & Insertion Loss
High Isolation, Indoor & Outdoor, IP65
Widely used for In-building Solutions
Specifications

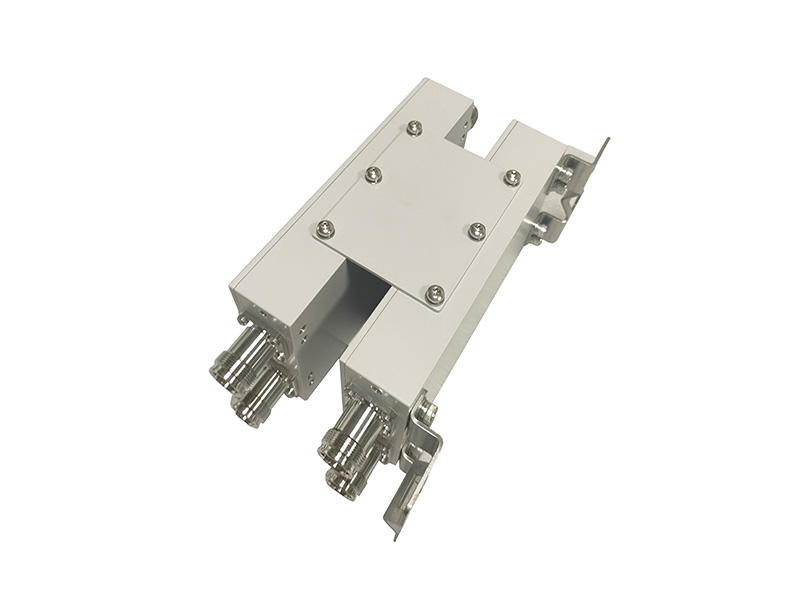

Model No. | 9528022650 |
Electrical characteristics

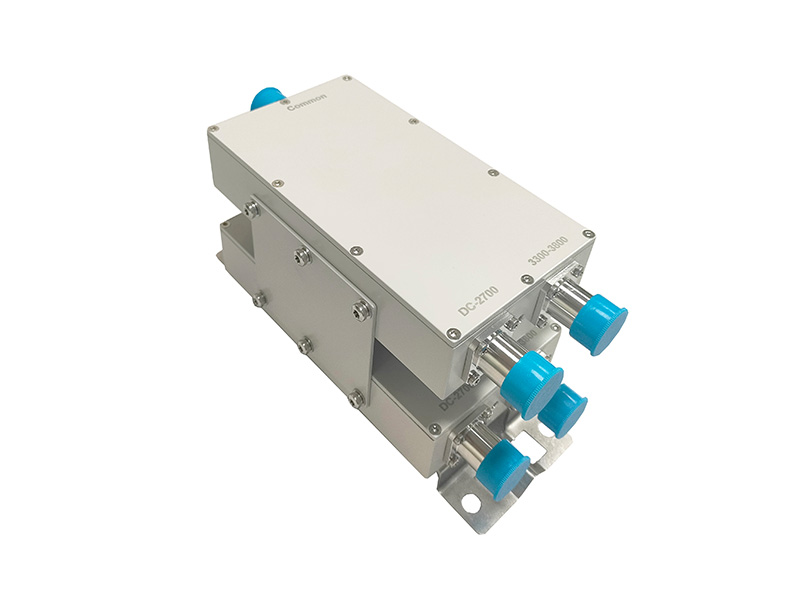

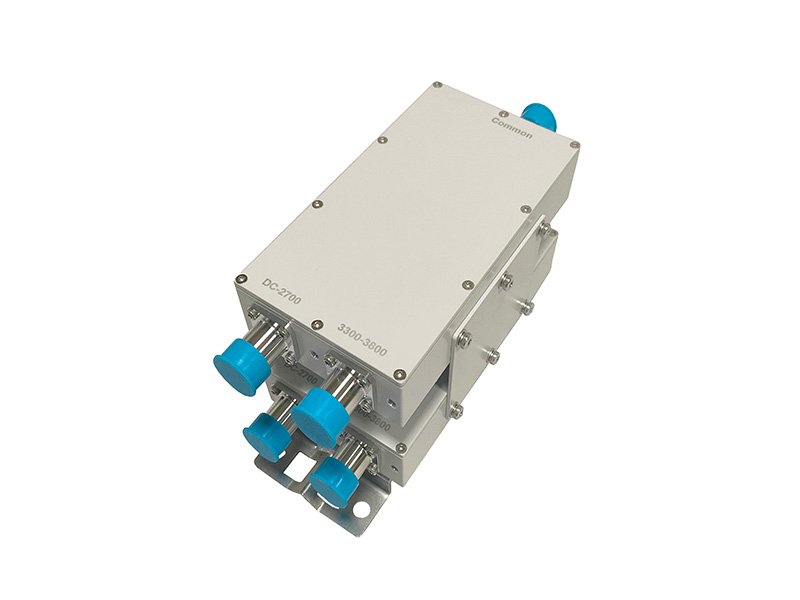

Frequency range Port 1, Port 4 Port 2, Port 5 | DC – 2700 MHz 3300 – 3800 MHz |
Insertion loss | ≤ 0.5 dB |
VSWR | ≤ 1.25 |
Isolation | ≥ 50 dB |
Impedance | 50 Ohm |
Surge protection | 3 kA (10/350 μs pulse) |
Passive intermodulation (IM3), 3rd order @ 2 x 20 W | ≤ -155 dBc |
DC-by-pass | Only on port 1,4 Port 3,6 (bidirectional) (max. 1A per input max. 60V DC (AISG Standard, 2.0, § 6.4)) |
Power Rating Port 1, Port 4 Port 2, Port 5 | 500W (CW) max. per input port 60W (CW) max. per input port |
Mechanical characteristics
Connectors | 4.3-10 female |
Dimensions, approx. (Excluding brackets and connectors) | Double：92 x 94 x 170 mm (Width x Height x Depth) |
Weight, approx. | 12 kg |
Wall / Mast mounting | Part of delivery |
Environmental conditions
Class. of environmental conditions | ETSI EN 300019-1-1 Class 1.2 ETSI EN 300019-1-2 Class 2.3 ETSI EN 300019-1-4 Class 4. 1E |
Degree of protection | IP 65 (Outdoor) |
Operation Ambient temperature range | -40 °C to +55 °C |
Storage Ambient temperature range | -55 °C to +85 °C |
Relative humidity, max. | 95% (non-condensing) |
