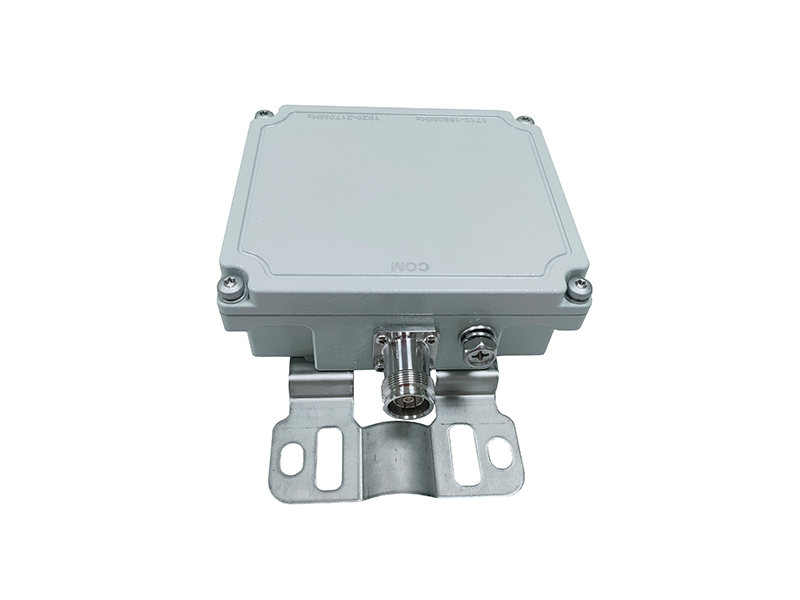

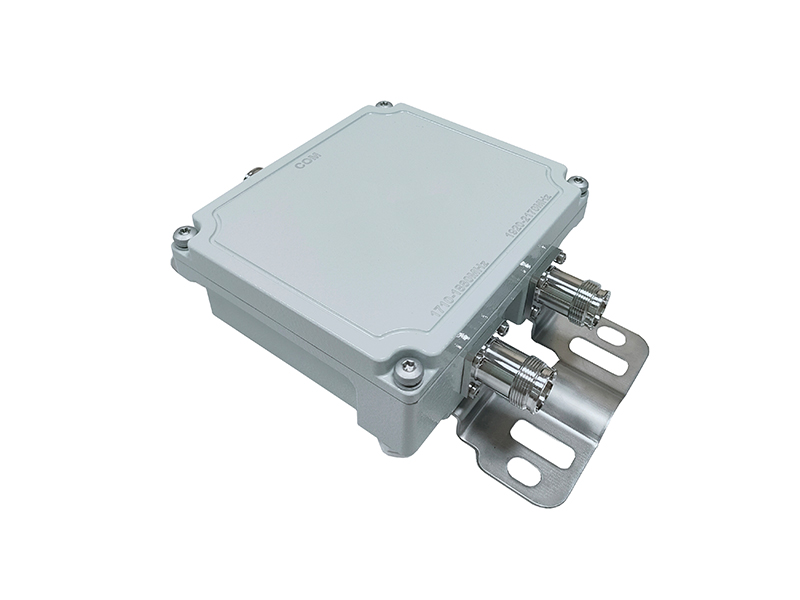

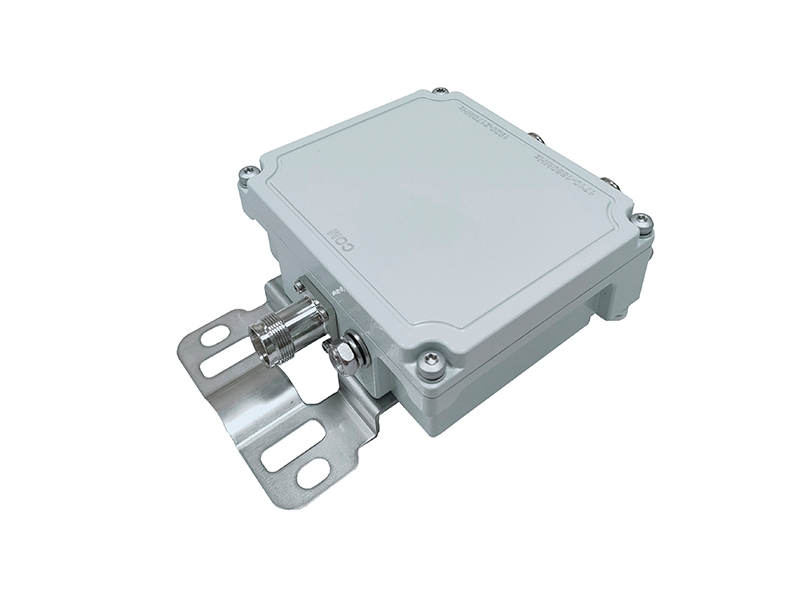

1710-1880 1920-2170MHz Diplexer 4.3/10-Female
Electrical
Model No. | HTD-1718/1921-4F-160 | |
Frequency(MHz) | 1710-1880 | 1920-2170 |
Insertion Loss(dB) | ≤0.3 | ≤0.4 |
Ripple (dB) | ≤0.1 | |
Port Isolation(dB) | ≥50 | |
VSWR | ≤1.25 | |
Intermodulation (dBc) | ≤-160dBc@2*43dBm | |
Impedance | 50 ohm | |
DC/AISG | By-pass | |
Lightning protection | 10KA；10/350us pulse | |
Input power (W) | 200 W | |
Operation temperature | -20°C to +65°C | |
Storage temperature | -40°C to +85 °C | |
Degree of protection | Indoor or outdoor (IP66) | |
Connector | 4310-Female | |
Relative Humidity | 5%-95% | |
Weight(kg) | Single ≤1.8 Double ≤3.6 | |
Dimensions(WxHxD) without mounting brackets | Single 120X140X47mm Double 120X140X101mm | |

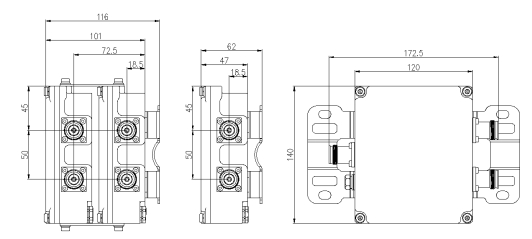

Outline drawing
