◆Frequencycovers617-960,1710-1880,1920-2170,2300-2700MHz
◆LowPIM
◆Poleorwallmounting
◆Suitableforindoorandoutdoorapplications
Specifications :
Part No. | HT-IBS.24 | |||
Description | Quadplexer(617-960/1800/2100/2700MHz)4.3-10for5G | |||
ZTTProductCode | ZR-QP300-4310-61727-160 | |||
FrequencyRange(MHz) | 698-960 | 1710-1880 | 1920-2170 | 2300-2700 |
InsertionLoss(dB) | <0.4 | |||
Isolation(dB) | >50 | |||
ReturnLoss(dB) | ≥19 | |||
VSWR(dB) | ≤1.25 | |||
PIM(dBm) | ≤-160dBc(with2x43dBm) | |||
MaximumInput(W) | 300W | |||
Operatingtemperature(℃) | -40℃to+85℃ | |||
Relativehumidity(℃) | 0~95% | |||
Impedance（Ω） | 50Ω | |||
Size（mm） | 205x167x46.7mm | |||
Weight(g) | 3000g | |||
LightningProtection | 3kA;10/350μspulse | |||
ConnectorType | 4.3-10Female | |||
Ingressprotection | IP67 | |||
Color | Grey(ML440c) | |||
ROHS | Satisfy | |||

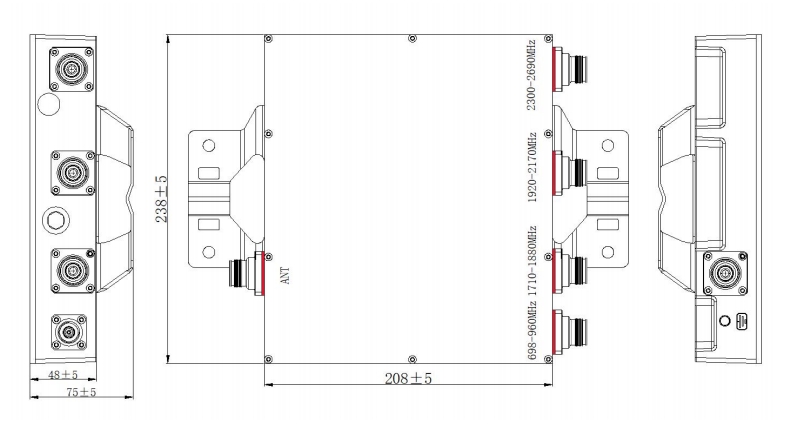

Outline drawing :

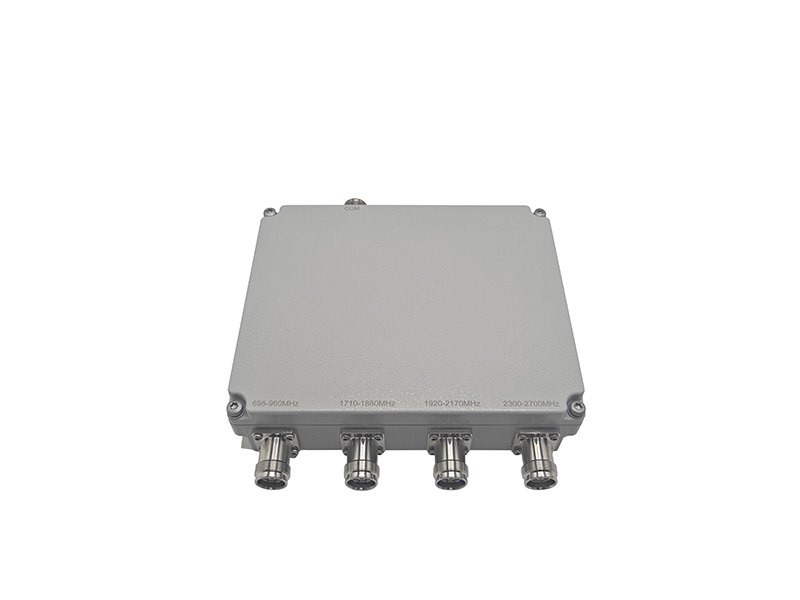

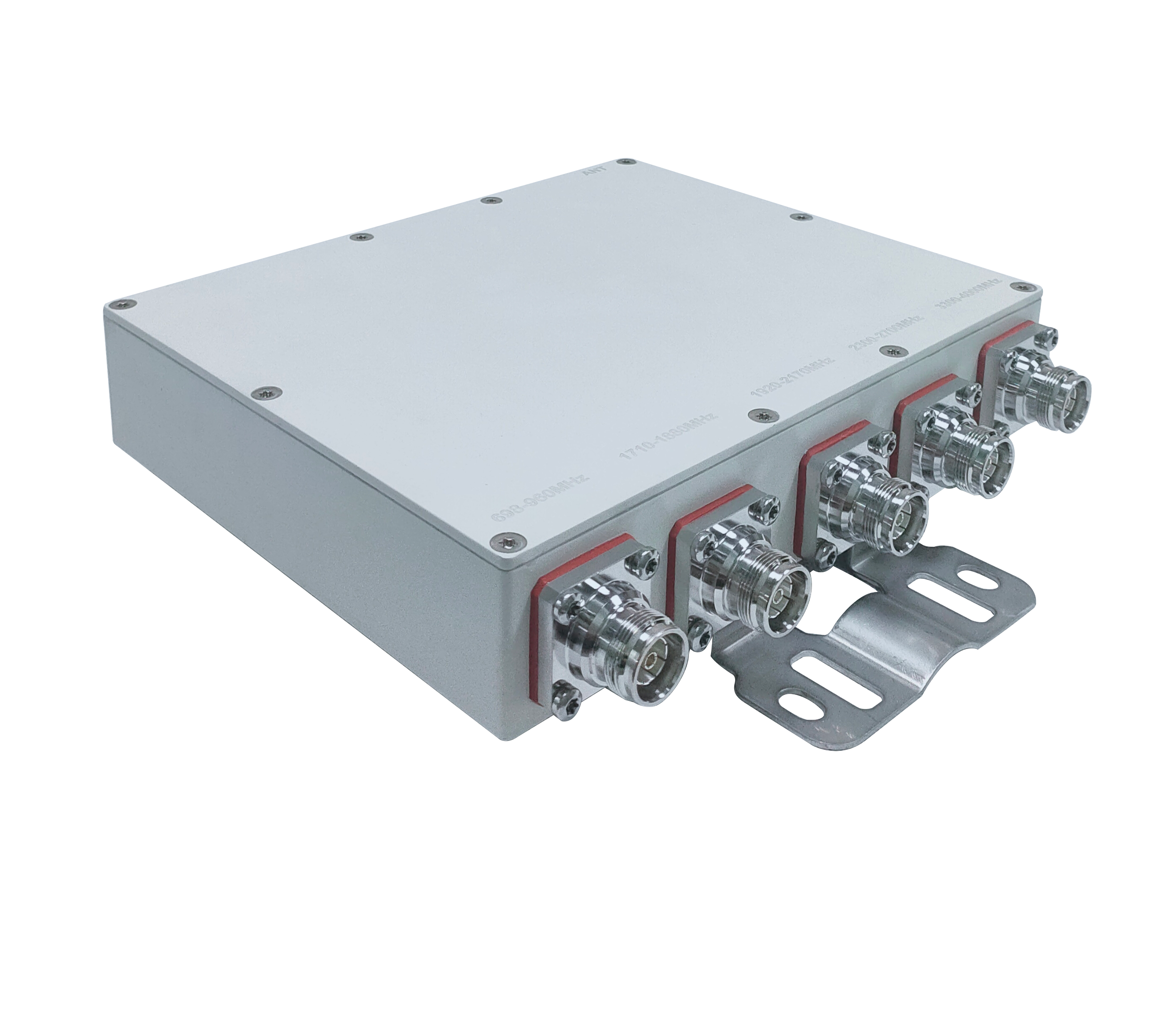

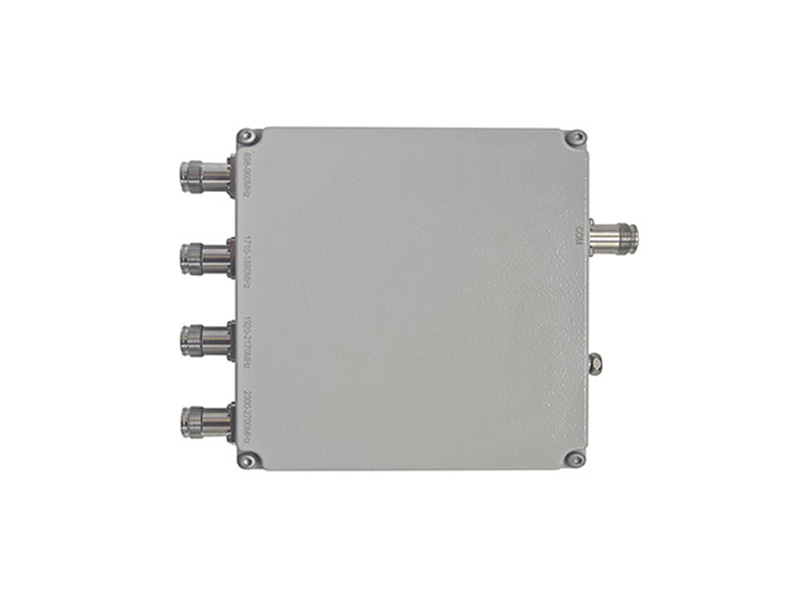

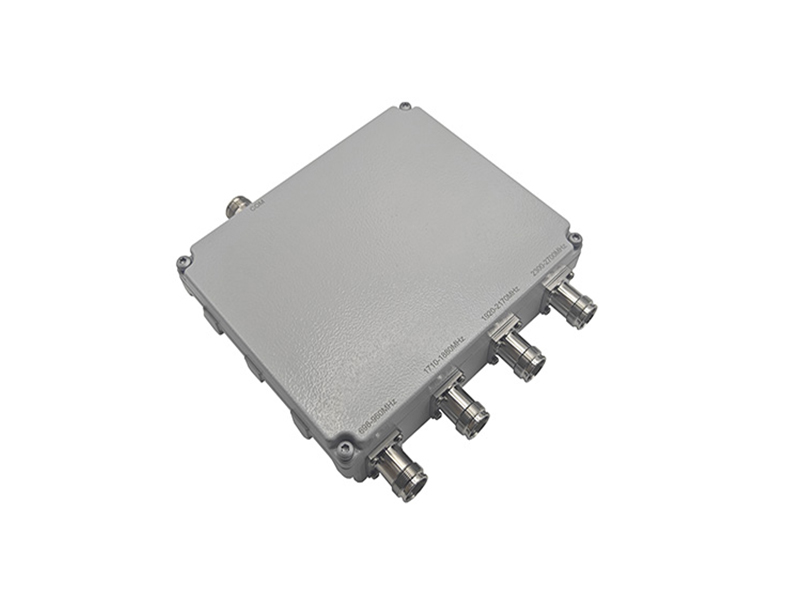

Product Image:
