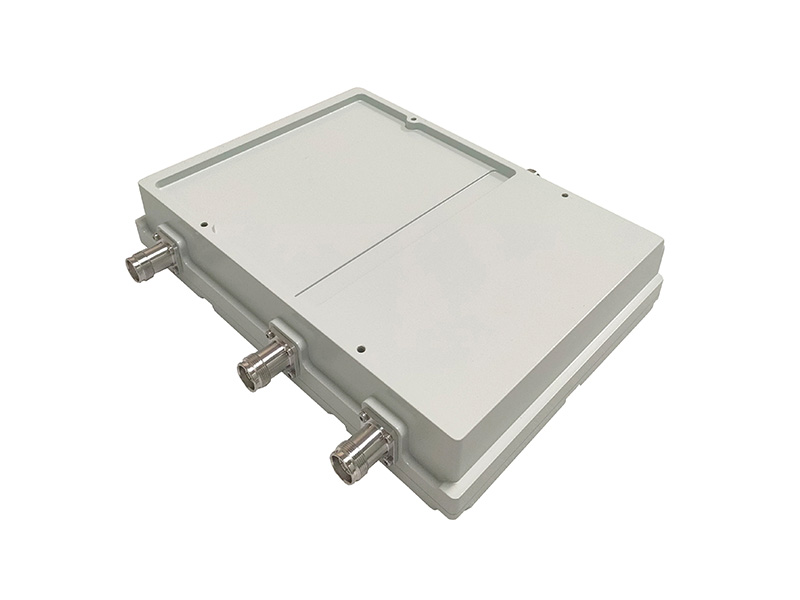

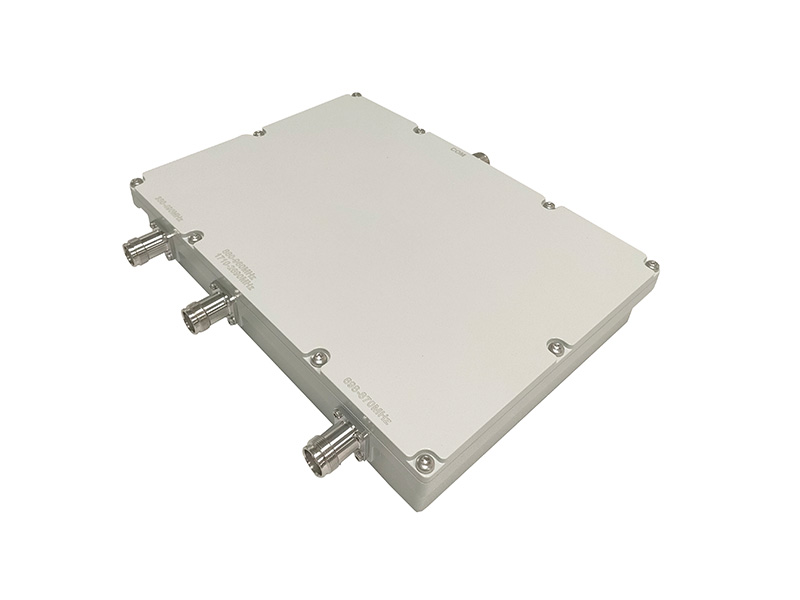

Product features
Ø 60 dB input isolation
Ø Very low insertion loss
Ø Excellent intermodulation performance
Ø Wall or mast mounting
Specifications
Part No. | HT-CM-3IN1OUT-43 | |||
Electrical | ||||
Frequency range (MHz) | Port 1 | Port 2 | Port 3 | |
380-490 | 698-870 | 880-960 | 1710-2690 | |
Center Frequency(MHz) | 435 | 783.5 | 920 | 2200 |
Band Width(MHz) | 110 | 172 | 80 | 980 |
Insertion loss(typ.) | ≤0.8dB | ≤1.2dB | ≤1.0dB | ≤0.5dB |
Insertion loss(Max.) | ≤1.0dB | ≤1.4dB | ≤1.2dB | ≤0.6dB |
Pass Band Ripple(typ.) | ≤0.8dB | ≤1.2dB | ≤1.0dB | ≤0.5dB |
Pass Band Ripple(Max.) | ≤1.0dB | ≤1.4dB | ≤1.2dB | ≤0.6dB |
Return loss/VSWR | ≥20dB | ≥20dB | ≥20dB | ≥20dB |
Rejection(dB) | ≥60dB@P1<->P2<->P3 | |||
Intermodulation (dBc) | ≤-155 (with 2×20W) | |||
Impedance (Ω) | 50 Ω | |||
Input power (W) | ≤100 W(avg.) | |||
Environmental | ||||
Operation temperature | -40°C to +65 °C | |||
Storage temperature | -50 °C to +85 °C | |||
Relative humidity | 5% - 95% | |||
Application | Indoor or outdoor (IP66) | |||
Mechanical | ||||
Connectors | 4.3-10 Female | |||
Dimension(mm) | 310.9x224x55 | |||
Item | Specifications | QTY |
Brackets | 110*65*15MM | 2 |
Screws | M5*8 | 4 |
Clamp | 64-144mm | 2 |
Schematic diagram

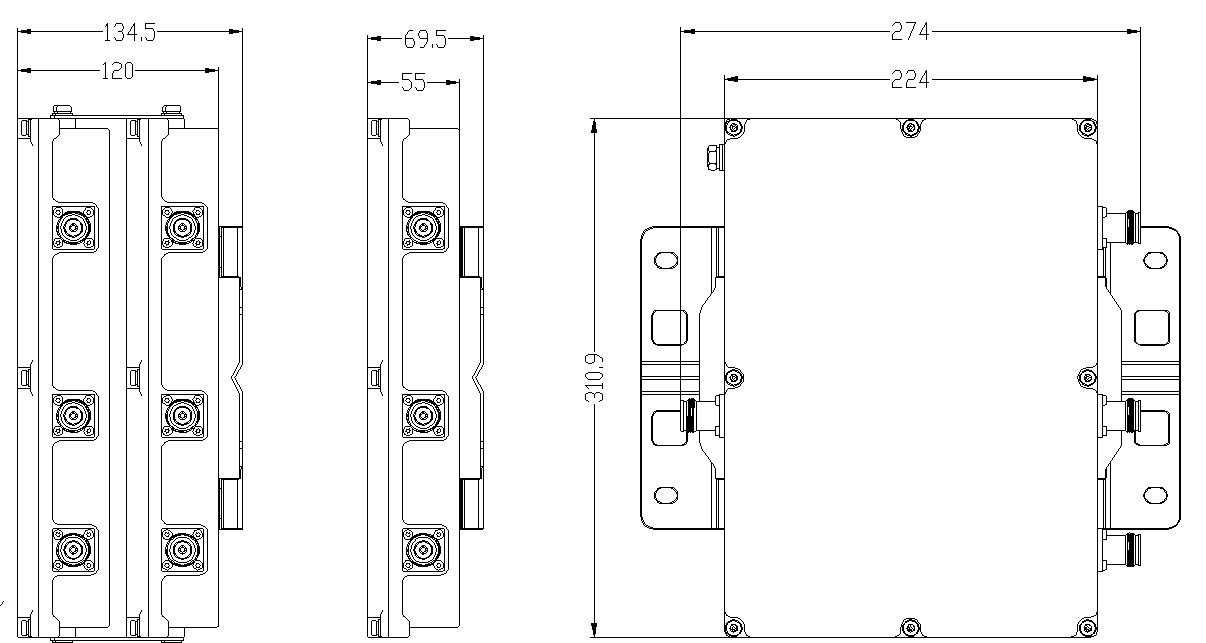

Outline drawing
