l Wide frequency range 1695 to 2700 MHz
l Low Passive Intermodulation -160dBc
l Low VSWR & insertion loss
l Indoor & outdoor use: IP67
l Connector Type 4.3-10(Female)

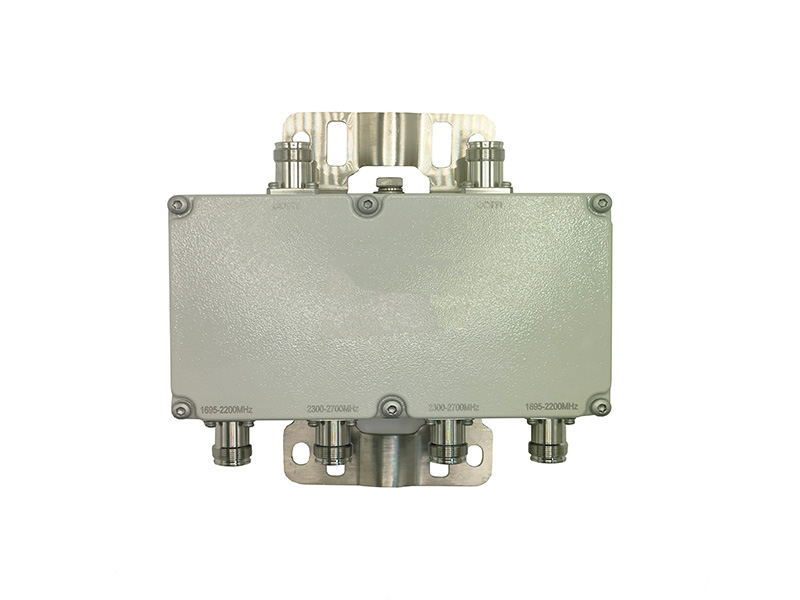

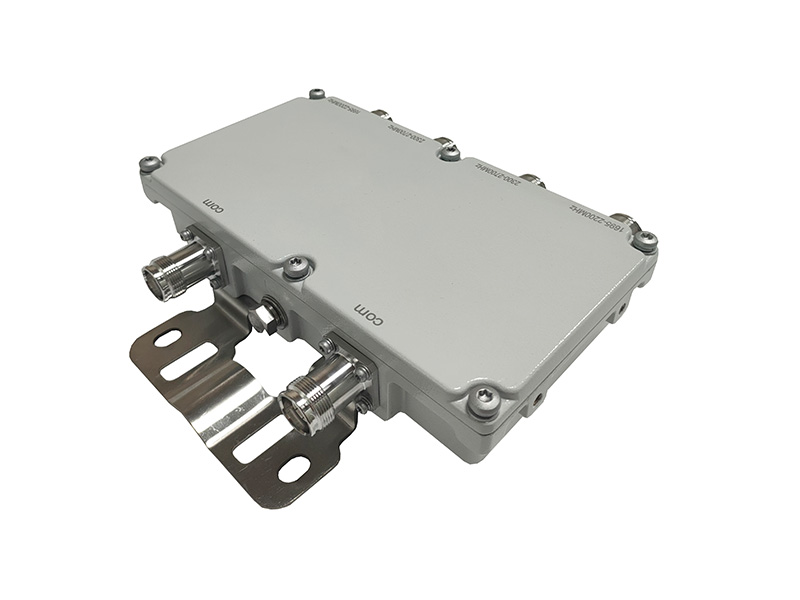

Part number | HT-TWDIP-1627-43 |
Electrical Specifications
Frequency range (MHz) | Port 1 | Port 2 |
1695 to 2200 | 2300 to 2700 | |
Insertion Loss(dB) | ≤0.2 typical | |
Return Loss (dB) | > 18 | |
Low & High Band Rejection (dB) | 50 (minimum) | |
Power handling (W) | 250 1000 Peak | |
3rd PIM 2*20W (dBc) | ≤-160 | |
Impedance (Ω) | 50 | |
DC Characteristics (mA) | DC by-pass between all ports (max 1000) | |
Environmental Specifications
Operating temperature range (°C) | -20 to +60 |
Storage temperature range (°C) | -40 to +85 |
Relative humidity (%) | 5 - 95 |
Barometric pressure (KPa) | 55 -106 |
IP Rating | IP67 |
Lightning protection | 3kA 10/350us, 8kA 8/20 us |
Mechanical Specifications
Connectors | 4.3-10(Female) (4*BTS, 2*ANT) |
Weight (Kg) | 2.8 |

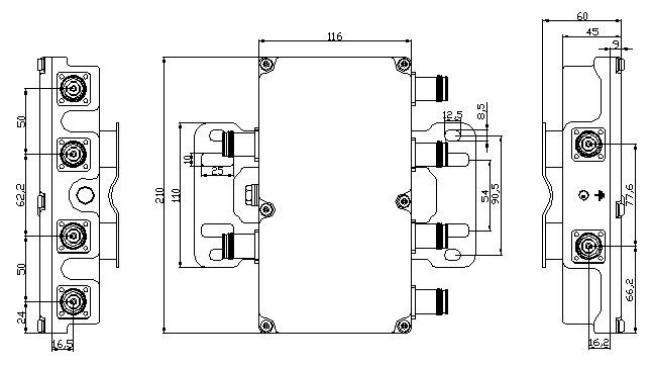

Outer Dimension(mm) | 210 x 116 x 45 |
Packing | 1Pcs in box |
Mounting | House clamps or wall mount (Supporter Pole Diameter: 40-140mm) |
