Low Passive Inter-modulation 160 dBc
Low VSWR & Insertion Loss
High Isolation, Indoor & Outdoor, IP68
Widely used for In-building Solutions

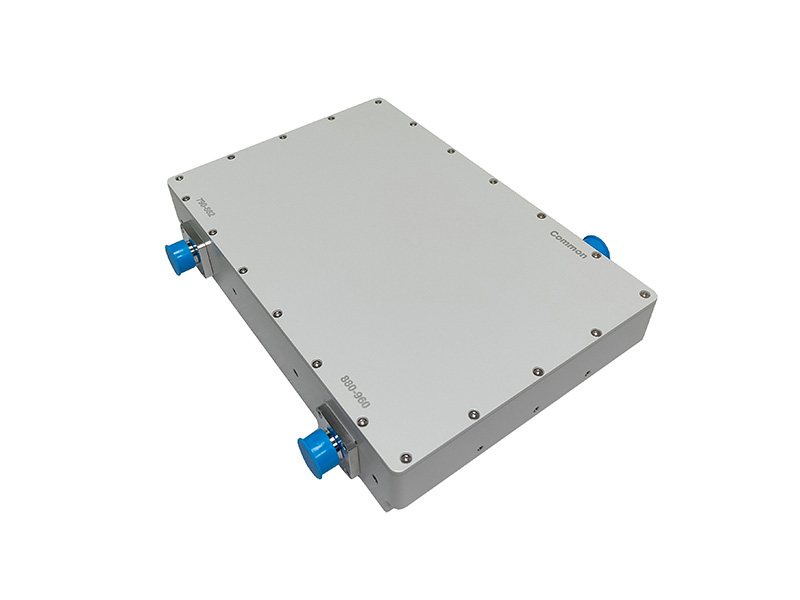

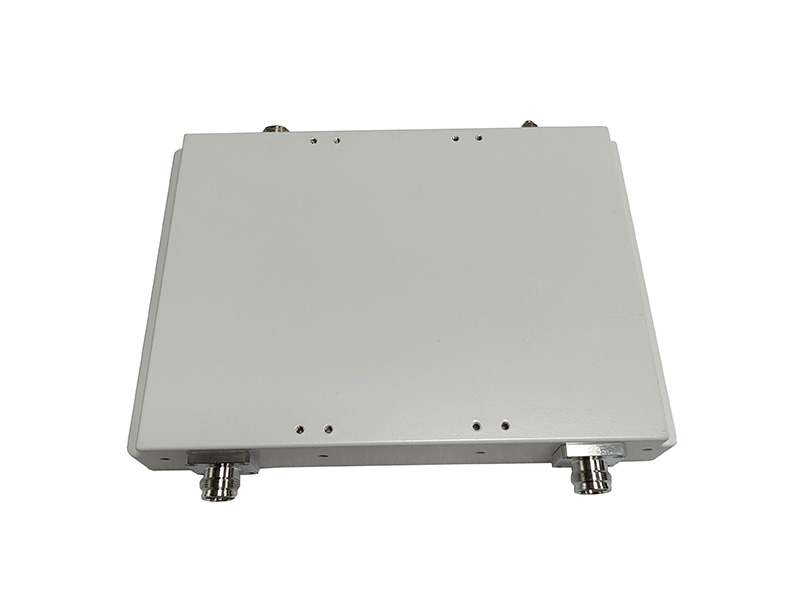

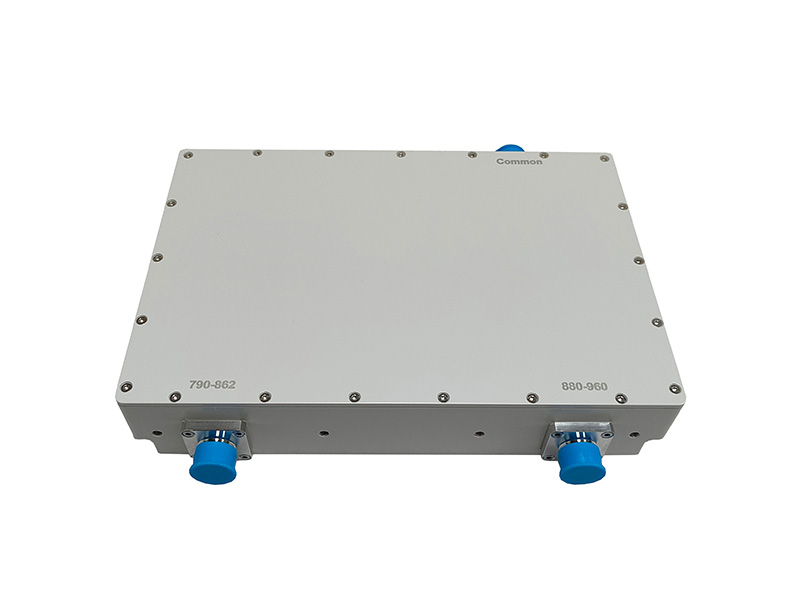

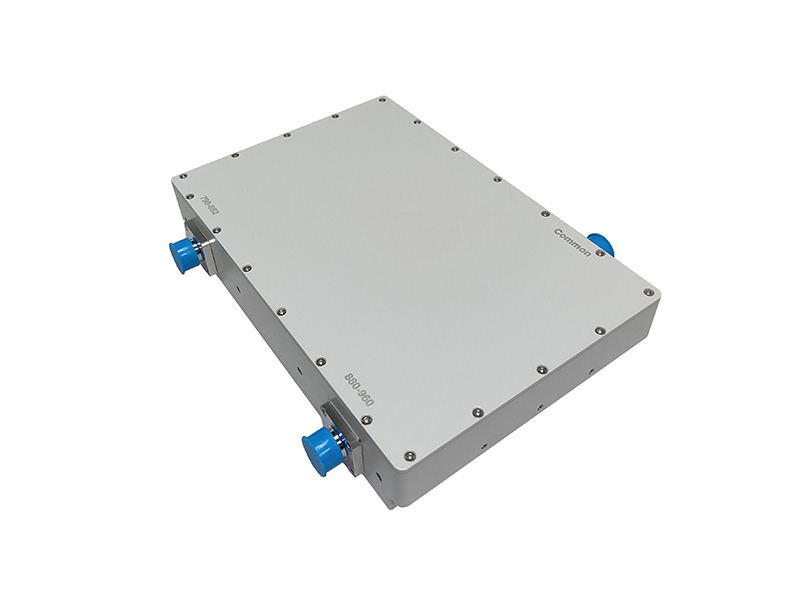

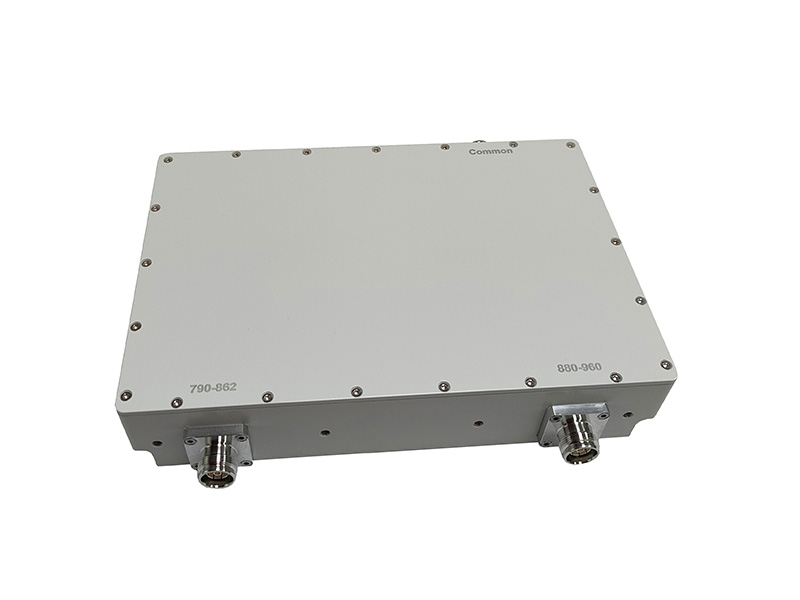

Model No. | HT-DIPLEX-0709-4310F |
Electrical characteristics
Frequency range Port 1 Port 2 | 790 – 862 MHz (LTE800) 880 – 960 MHz (GSM900) |
Insertion loss | ≤ 0.4 dB (typ. 0.25 dB) |
VSWR | ≤ 1.25 (typ. 1.2) |
Isolation | ≥ 50 dB (typ. 55dB) |
DC by-pass | all inputs → output (unidirectional) max. 1A per input max. 60V DC (AISG Standard, 2.0, § 6.4) |
Intermodulation products 3rd order @ 2 x 20 W | ≤ -160 dBc | typical ≤ -165 dBc |
Impedance | 50 Ohm |
Power Rating | 300 W (CW) max. per input port |
Mechanical characteristics
Connectors | 4.3-10 female |
Dimensions, approx. (Excluding brackets and connectors) | 279 x 51 x 187 mm (Width x Height x Depth) |
Weight, approx. | 3.45 kg |
Wall / Mast mounting | Part of delivery |
Environmental conditions
Class. of environmental conditions | ETSI EN 300019-1-1 Class 1.2 ETSI EN 300019-1-2 Class 2.3 ETSI EN 300019-1-4 Class 4. 1E |
Degree of protection | IP 68 (Outdoor) |
Operation Ambient temperature range | -40 °C to +65 °C |
Storage Ambient temperature range | -40 °C to +85 °C |
Relative humidity, max. | 95% (non-condensing) |
HT Part Code | 9528023050 |
