Part No. | 9508050250 | |
Electrical | ||
Frequency range (MHz) | Port1 | 698-960 |
Port2 | 1710-1880 | |
Port3 | 1920-2170 | |
Port4 | 2300-2400 | |
Port5 | 2500-2700 | |
Insertion loss (dB) | ≤0.42 | |
Isolation(dB) | ≥52 | |
Return loss/VSWR | ≤-20dB/1.3 | |
Intermodulation (dBc) | ≤-160 (with 2×20W) | |
Impedance (Ω) | 50 Ω | |
Input power (W) | ≤200 W(avg.) | |
Environmental | ||
Operation temperature | -20°C to +65 °C | |
Storage temperature | -40 °C to +85 °C | |
Relative humidity | 5% - 95% | |
Application | Indoor or outdoor (IP65) | |
Mechanical | ||
Dimensions(WxHxD)(mm) | Single:231*160*49 Double:231*162*103 | |
RF Connectors | 4.3-10 Female | |
Schematic diagram :

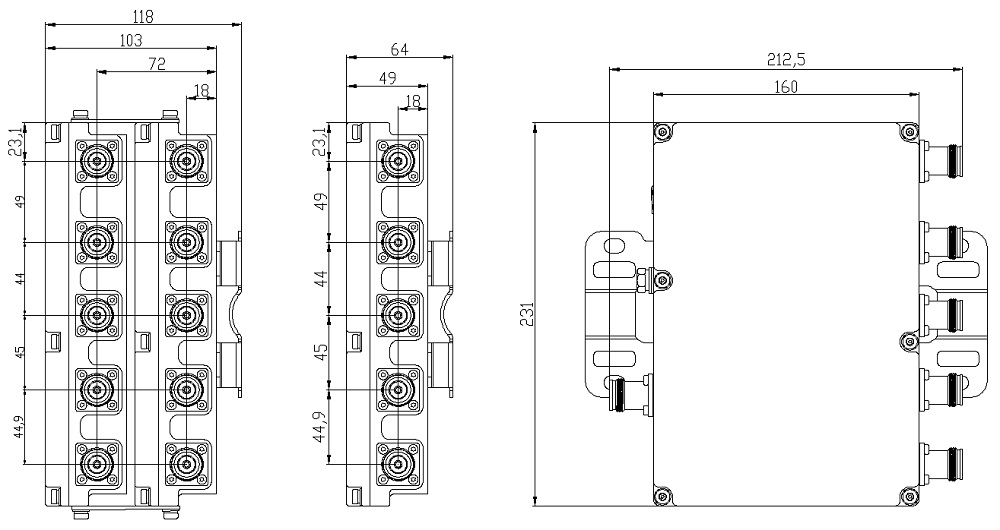

Outline drawing :
