DCS1800MHz & UMTS2100MHz Diplexer
Part No. | HT-DIP-1721D | |
Electrical Specifications | ||
Frequency range | 1710-1880MHz | 1920-2170MHz |
Insertion loss | ≤0.4dB Type(0.25 dB) | |
Ripple in Band | ≤0.3dB | |
Isolation | ≥60dB | |
VSWR | ≤1.25 | |
Intermodulation | ≤-155dBc @ +43dBm x 2 | |
Impedance | 50Ω | |
Input power | 250W | 300W |
DC Pass Current | Max2500mA(Between All Ports) | |
Lightning Protection | 8/20S 10KA Pulse(IEC 801-5) | |
MTBF Hours | ≥500,000 | |
Environment Specification | ||
Operating temperature range | -20°C to +55°C | |
Storage temperature range | -35°C to +75°C | |
Relative humidity | 0°C to +95°C | |
Applications | IP66 | |
Mechanical Specifications | ||
Connectors | 3-DIN-F | |
Weight | <4 KG | |
DIM(L*W*H) | 201*164*52mm(without connectors) | |
Packaging | 1 pc in box | |
Outline Drawing(Single Unit):
Outline Drawing(Double Unit):

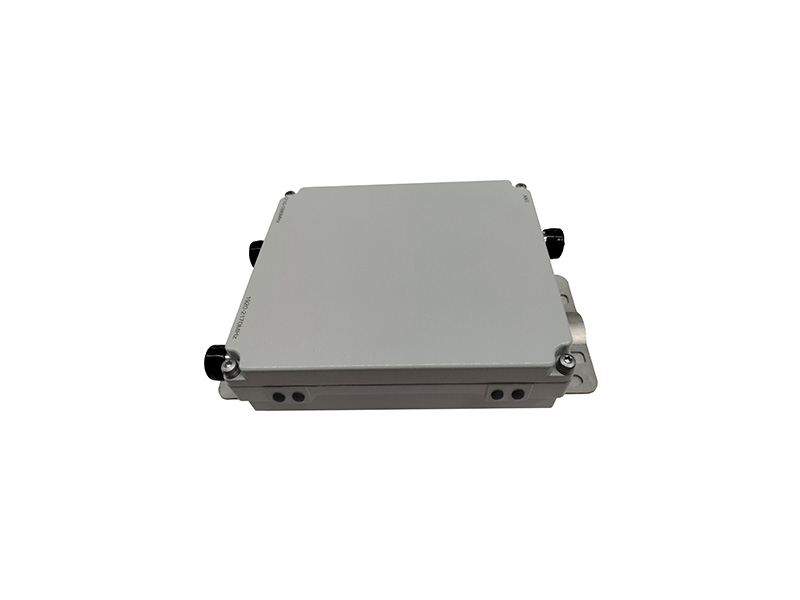

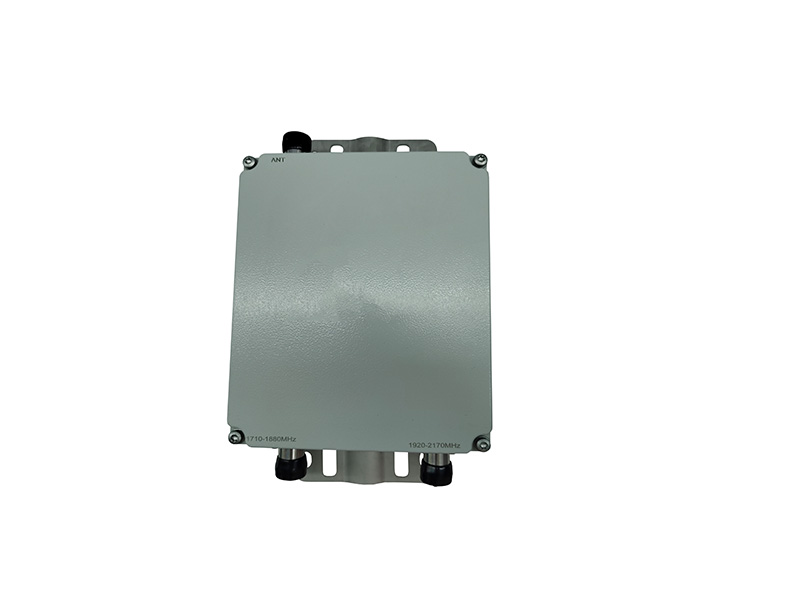

Product Picture:
