Wide frequency range for 2G/3G /4G/5G/LTE applications ·
Low Passive Inter-modulation -160dBc
Low VSWR & Insertion Loss
High Isolation, Indoor & Outdoor, IP67
Widely used for In-building Solutions
Specifications :
Model No. | HT-QUAD-1738-43F-160 (9538041550) | |||
Electrical | ||||
Frequency range (MHz) | Port1 | Port2 | Port3 | Port4 |
1710-1880 | 1920-2200 | 2500-2690 | 3300-3800 | |
Insertion Loss(dB) | ≤0.42 | |||
Port Isolation(dB) | ≥52 | |||
VSWR | ≤-19dB/1.25 | |||
Intermodulation (dBc) | ≤-160dBc (with 2×43dBm) | |||
Impedance (Ω) | 50 Ω | |||
Input power (W) | 200 | |||
Lightning protection | 10KA;10/350us pulse | |||
Environmental | ||||
Operation temperature | -20 °C to +65 °C | |||
Storage temperature | -40 °C to +85 °C | |||
Relative humidity | 5% - 95% | |||
Application | Indoor or outdoor (IP67) | |||
Mechanical | ||||
Weight(kg) | 3.2kg | |||
Connector | 4310-Female | |||
Dimension(mm) | 213x180x50mm(without connectors) | |||

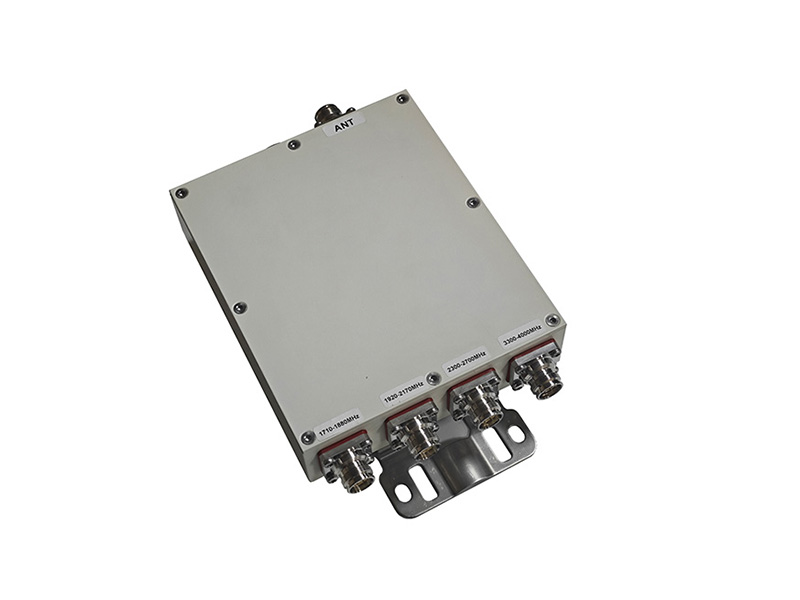

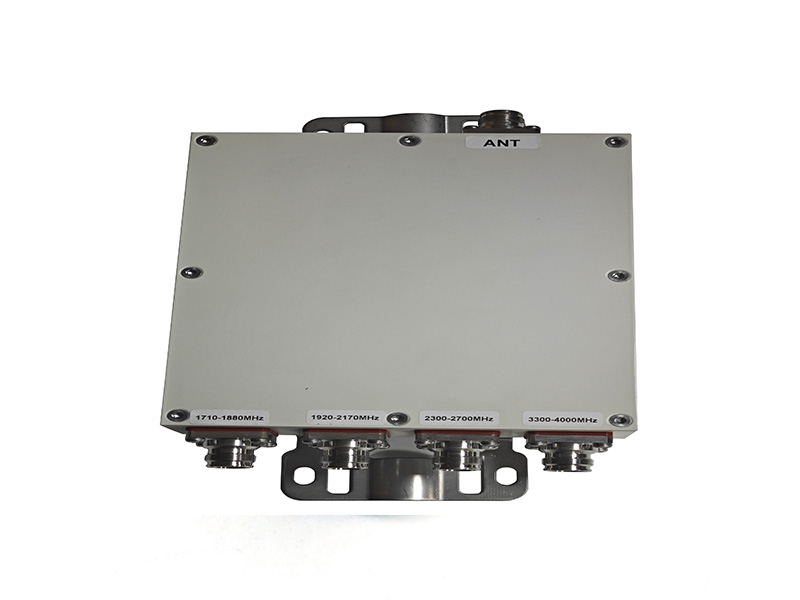

Productor picture:

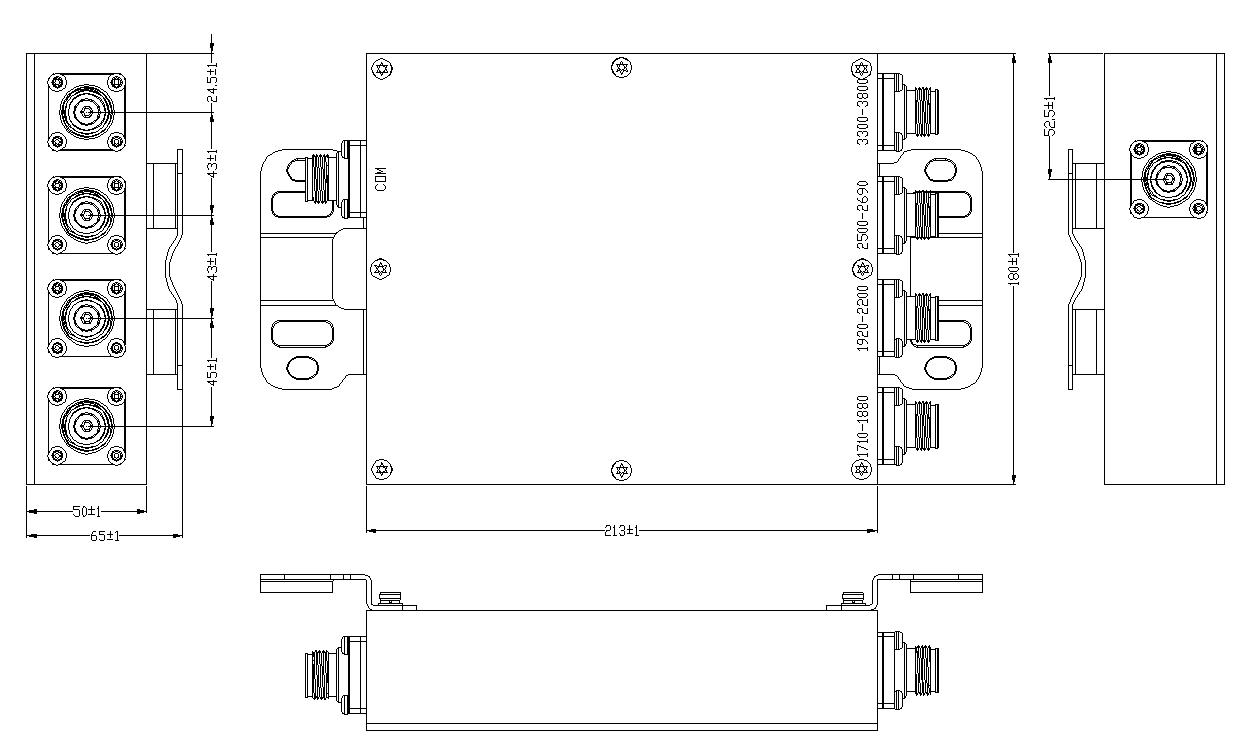

Outline drawing :
