Always on time
Acceptable price
Excellent quality
Low Passive Inter-modulation -155dBc
Low VSWR & Insertion Loss
High Isolation, Indoor & Outdoor, IP67
Widely used for In-building Solutions
Specifications :

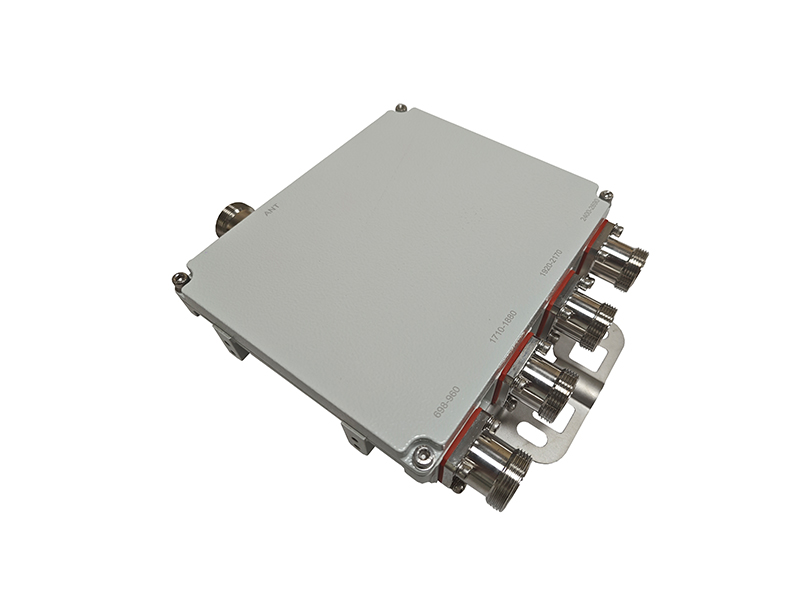

Model No. | HT-QUAD-0627-DF-155 | |||
Electrical | ||||
Frequency range (MHz) | Port1 | Port2 | Port3 | Port4 |
698-960 | 1710-1880 | 1920-2170 | 2400-2690 | |
Insertion Loss(dB) | ≤0.4 | |||
VSWR | ≤1.22 | |||
Intermodulation (dBc) | ≤-155dBc (3rd order; with 2×20W) | |||
Impedance (Ω) | 50 Ω | |||
Power Rating | 250 W | |||
Environmental | ||||
Operation temperature | -40 °C to +65 °C | |||
Relative humidity | 5% - 95% | |||
Application | Indoor or outdoor (IP67) | |||
Mechanical | ||||
Connector | DIN-Female | |||
Weight (Single ) | ＜3.2kg | |||
Color | Grey | |||

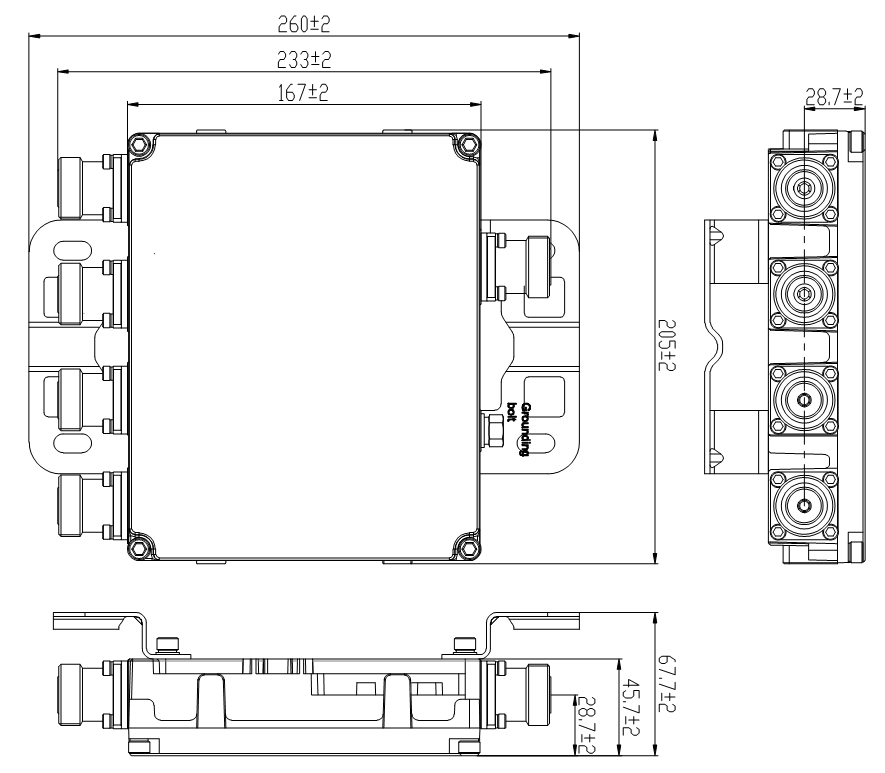

Dimension(mm) | 205x167x45.7mm | |||
