Specifications:
Electrical Specifications
Model No. | HT-DIP-0721-43 / HT-DIP-0721-43-DS | |
Frequency range | Port1:698-960 MHz | Port2:1710-2170 MHz |
Insertion loss | <0.3 dB | |
Return loss | ≤-20 dB | |
Isolation | ≥80 dB | |
Impedance | 50 Ω | |
Input power | 300 W(avg.) | |
Intermodulation | -155 dBc @ 2 x 43 dBm | |
DC/AISG | DC Path thru each port to Ant. Rated at 3A Max. | |
Lighting Protection | 3KA； 10/350us pulse | |
Environment Specification
Operating temperature | -40 °C to +60 °C |
Storage temperature
| -35 °C to +75 °C |
Relative humidity | 5% - 95% |
Application
| IP66 |
Mechanical Specifications
Connectors | 4.3/10-Female |
Weight | 1.42 Kg(Single unit) 2.90Kg ( Double unit ) |

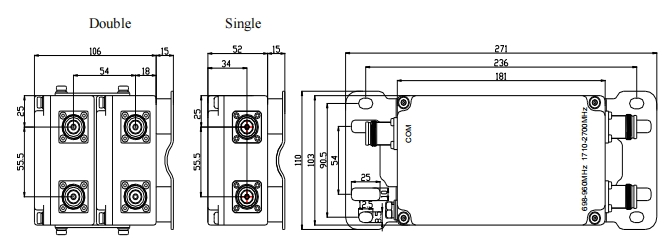

DIM(L*W*H) | 181*103*52 mm/(181*103* 106 mm. max) |
Packing | 1 pc /box |
