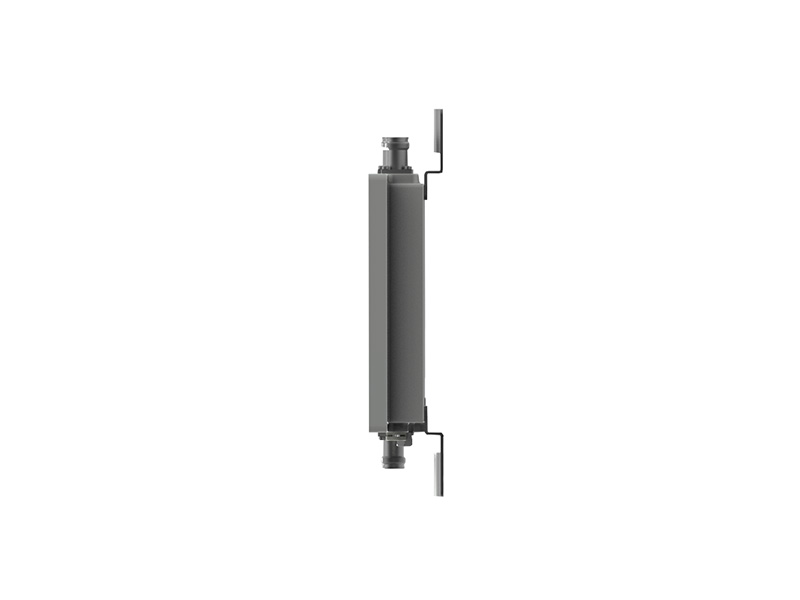

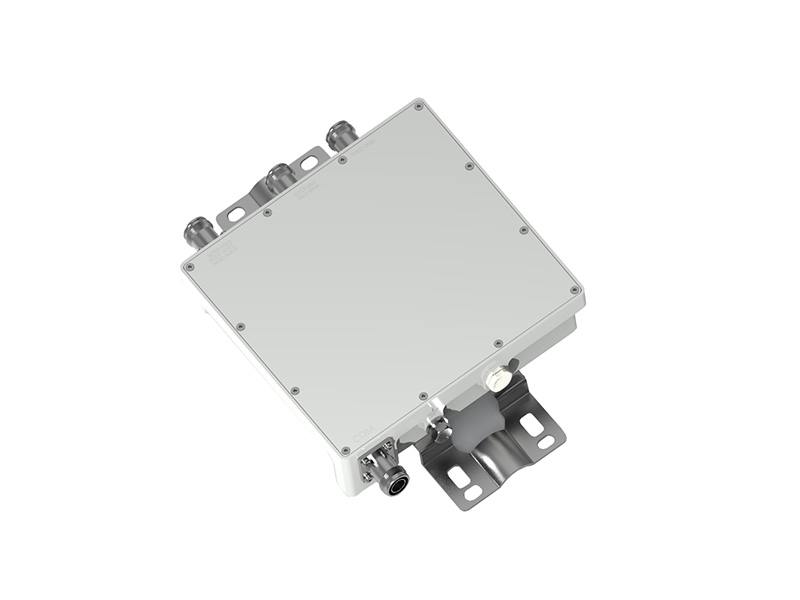

Triple band Combiner Triplexer 1850-2000/1695-1780&2110-2200/2305-2690&3300-4200&5150-5925 MHz

Combiners are essential components used in RF (radio frequency) and microwave systems to combine multiple signals into a single output or to split a signal into multiple outputs while maintaining signal integrity. They enable the simultaneous transmission or reception of multiple signals using a single antenna or transmission line, optimizing system performance and spectrum utilization.

Always on time

Acceptable price

Excellent quality

Product Detail

Message

Part No.

9508012550

Electrical

Frequency range (MHz)

Port1

1850-2000

Port2

1695-1780&2110-2200


Port3

2305-2690&3300-4200&5150-5925

Insertion loss (dB)

≤0.7

Isolation(dB)

≥35

Return loss/VSWR

≤-18dB/1.3

Intermodulation (dBc)

≤-160 (with 2×20W)

Impedance (Ω)

50 Ω

Input power (W)

≤200 W(avg.)

Environmental

Operation temperature

-20°C to +65 °C

Storage temperature

-40 °C to +85 °C

Relative humidity

5% - 95%

Application

Indoor or outdoor (IP65)

Mechanical

Weight

Single   3Kg

Double  6Kg

Dimensions(WxHxD)(mm)

without mounting brackets

Single   192*183*45.5

Double  192*183*99.5

RF Connectors

4.3-10 Female


Schematic diagram :

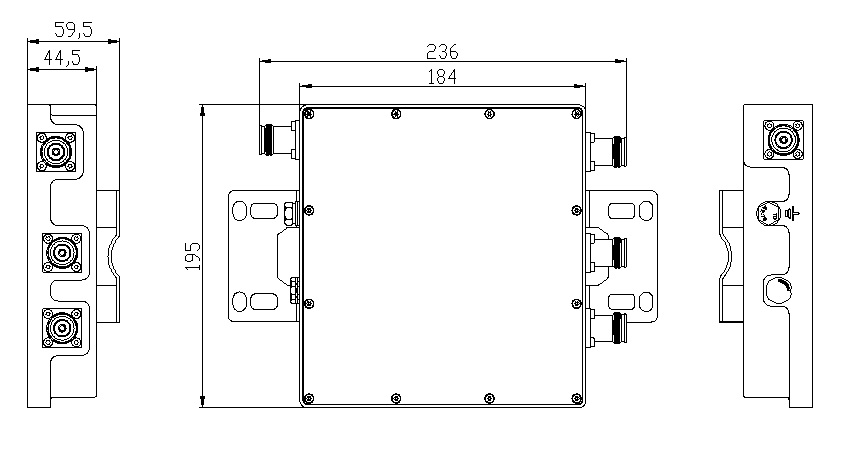

Outline drawing :
