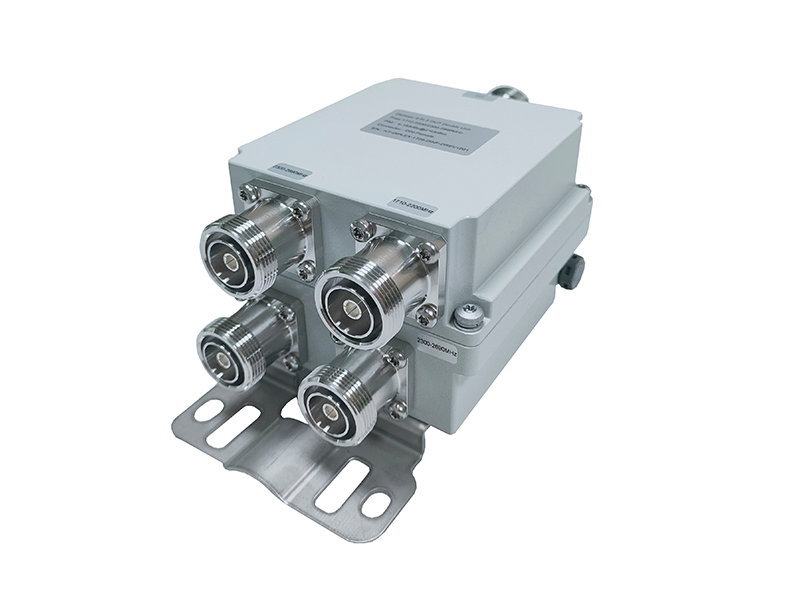

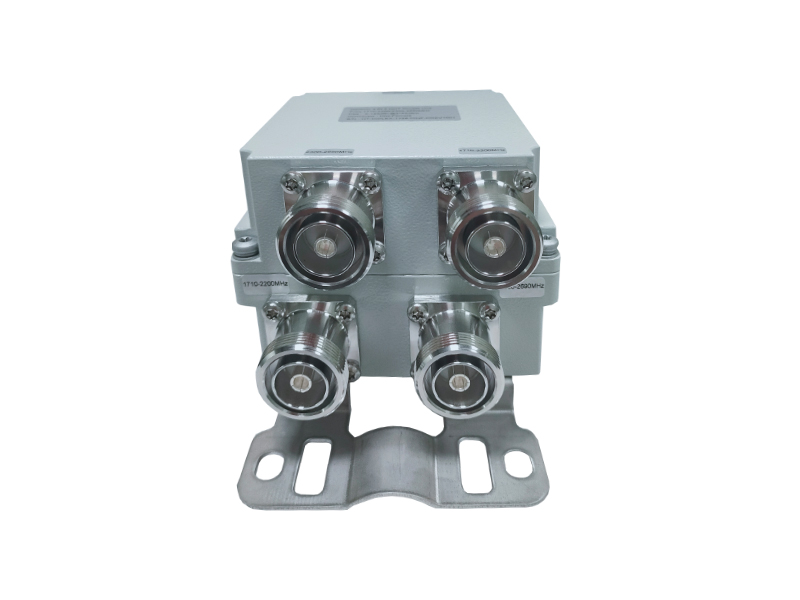

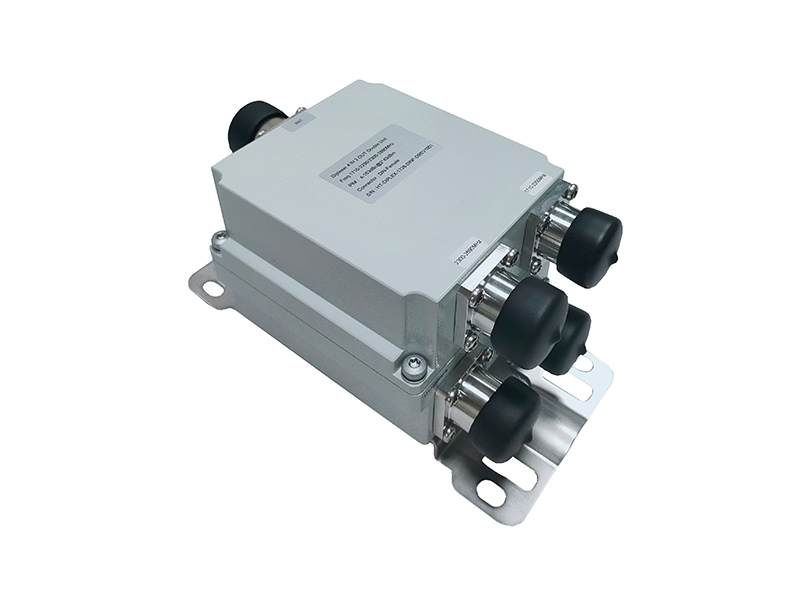

Diplexer 1710-2200/2300-2690MHz 4 IN 2 OUT Double Unit 7-16 DIN Female

Combiners are essential components used in RF (radio frequency) and microwave systems to combine multiple signals into a single output or to split a signal into multiple outputs while maintaining signal integrity. They enable the simultaneous transmission or reception of multiple signals using a single antenna or transmission line, optimizing system performance and spectrum utilization.

Always on time

Acceptable price

Excellent quality

Product Detail

Message

Wide Frequency Band

Low Passive Inter-modulation

Low VSWR & Insertion Loss

High Isolation, Indoor & Outdoor, IP67

Widely used for In-building Solutions

Part No.

HT-DIPLEX-1726-DINF-DREV1

Freq(MHz)

Port1

Port2

1710-2200

2300-2690

Insertion Loss(dB)

≤0.4

≤0.4

Port Isolation(dB)

≥50

VSWR

≤1.3

Intermodulation (dBc)

≤-153dBc@2*43dBm

Impedance

50 ohm

Lightning protection

10KA;10/350us pulse

Input power (W)

300 W

Operation temperature

-20°C to +65°C

Storage temperature

-40°C to +85 °C

Degree of protection

Indoor or outdoor (IP67)

Connector

DIN-Female

Weight

2.5kg

Relative Humidity

5%-95%

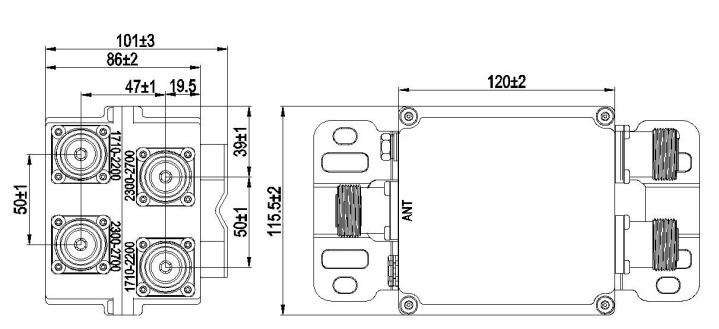

Dimensions(mm)

115.5X120X86mm(without connectors)
