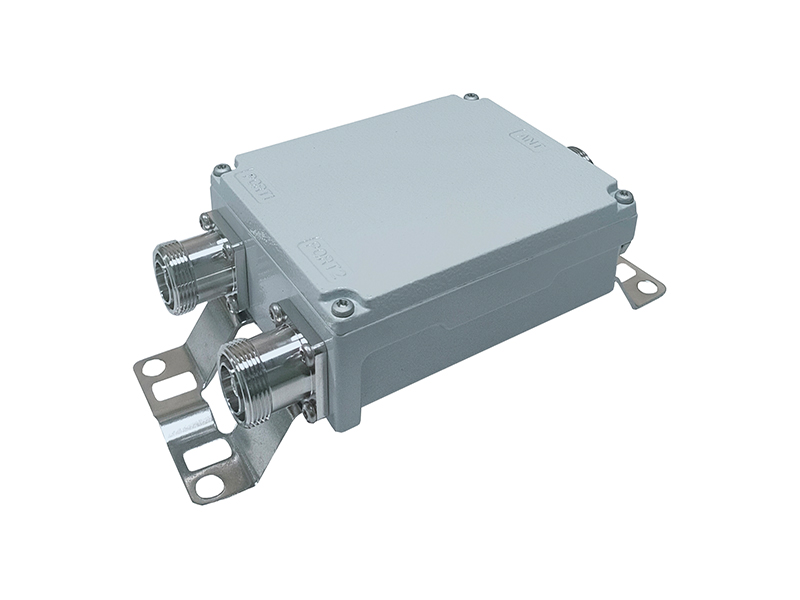

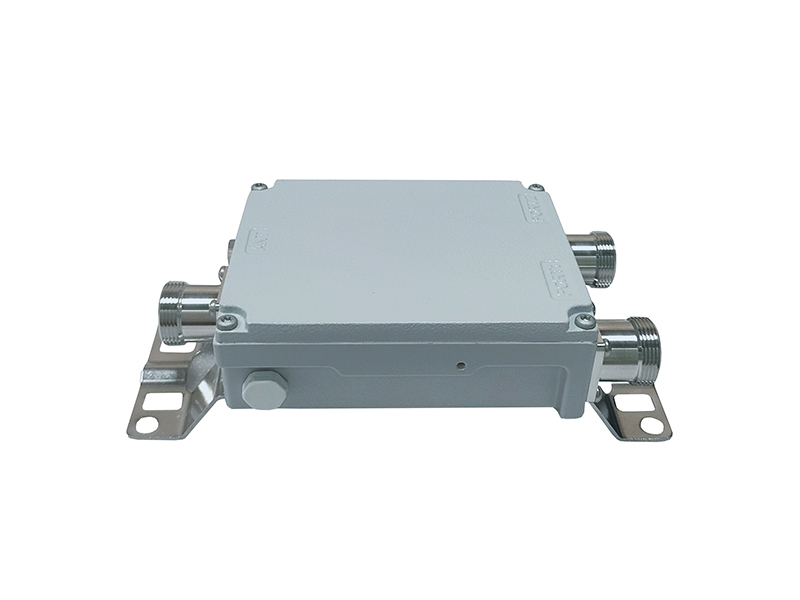

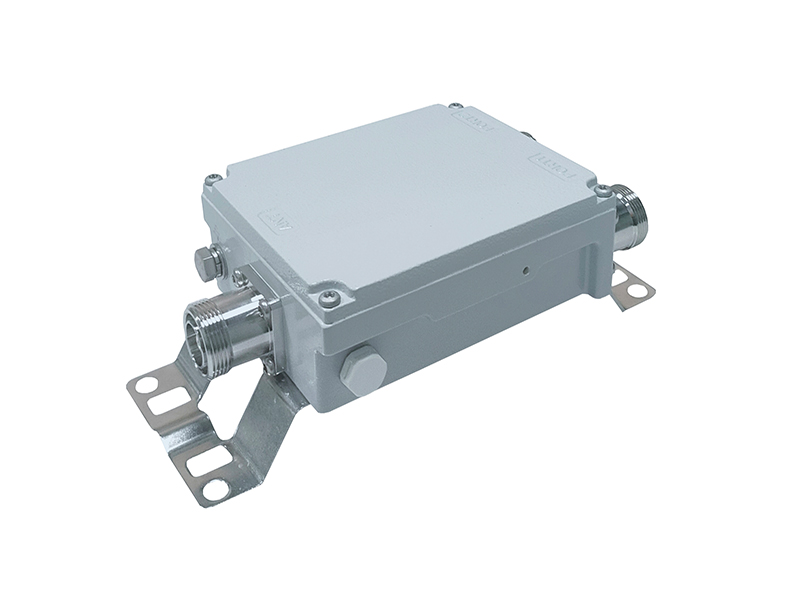

1710-1880/1920-2170MHz DIN Female Diplexer
Low Passive Inter-modulation -155dBc
Low VSWR & Insertion Loss
High Isolation, Indoor & Outdoor, IP66
Widely used for In-building Solutions
Specifications :
Model No. | HT-DIP-1721-DF | |
Electrical | ||
Frequency range (MHz) | Port1 | Port2 |
1710-1880 | 1920-2170 | |
Insertion Loss(dB) | ≤0.4 | |
Isolation(dB) | ≥50 | |
VSWR | ≤1.22 | |
Intermodulation (dBc) | ≤-155dBc (3rd order; with 2×20W) | |
Impedance (Ω) | 50 Ω | |
DC Pass Current | Max 3000mA(Between All Ports） | |
Lighting Protection | 8/20S 10KA Pulse(IEC 801-5) | |
Power Rating | 300 W | |
Environmental | ||
Operation temperature | -20°C to +55°C | |
Storage temperature range | -35°C to +75 °C | |
Relative humidity | 5% - 95% | |
Application | Outdoor (IP66) | |
Mechanical | ||
Connector | DIN Female | |
Weight (Single ) | Single ≤1.8kg | |
Color | Grey 409C | |
Dimension(mm) | Single 140*115*50mm | |

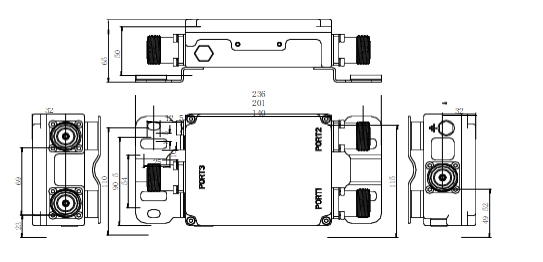

Outline drawing :
