Electrical | ||
Freq(MHz) | Port1 | Port2 |
80-2690 | 3300-5925 | |
Insertion Loss(dB) | Typ..≤0.25 Max..≤0.4 | |
Port Isolation(dB) | ≥50 | |
Return loss/VSWR | ≤-18dB/1.3 | |
Intermodulation (dBc) | ≤-160dBc@2*43dBm | |
Impedance | 50 ohm | |
DC/AISG | By-pass@80-2690MHz | |
Lightning protection | 10KA；10/350us pulse | |
Input power (W) | 100 W | |
Temperature | ||
Operation temperature | -20°C to +65°C | |
Storage temperature | -40°C to +85 °C | |
Degree of protection | Indoor or outdoor (IP66) | |
Mechanical | ||
Connector | 4310-Female | |
Relative Humidity | 5%-95% | |
Code | Type | DC pass | Weight(kg) | Dimensions (mm) | Sizeofinnerbox (mm) | Dimensionsofcartons(mm) | Weight per case(kg) | Connectors |
9508020150 | Single | Port1 | ≤1.8 | 181*103*52 | 4.3-10/ Female | |||
9508020151 | Double | Port1 | ≤3.6 | 181*103*106 | 4.3-10/ Female | |||
9508020160 | Single | Port1 | ≤1.8 | 181*103*52 | 7/16/ Female | |||
9508020161 | Double | Port1 | ≤3.6 | 181*103*106 | 7/16/ Female | |||
9508020170 | Single | Port1 | ≤1.8 | 181*103*52 | N/ Female | |||
9508020171 | Double | Port1 | ≤3.6 | 181*103*106 | N/ Female |
Schematic diagram :

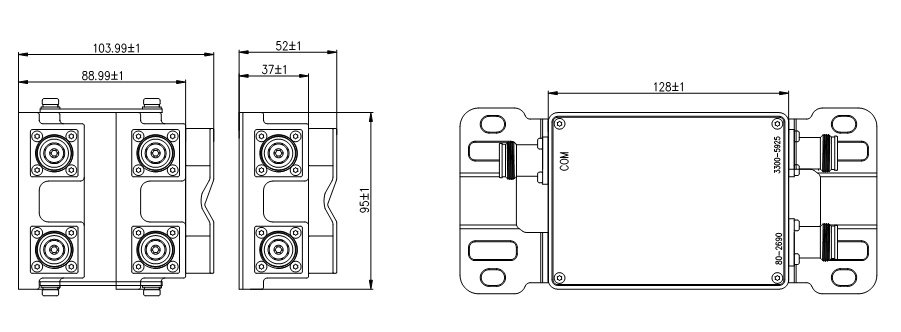

Outline drawing :
Accessories information :

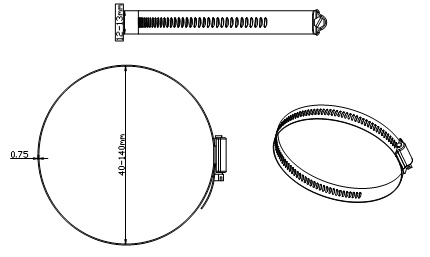

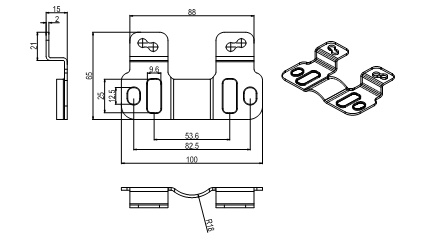

Throat band Mounting bracket
（2PCS）40X140X12mm （2PCS）40X140X12mm
