●Designed for co-siting purposes
●Enables feeder sharing
●Suitable for indoor or outdoor applications
●Wall or mast mounting
●Extremely small dimensions and low weight
●Very low insertion loss
●High input power
Specifications :
Part No. | 9538051050 | |
Electrical | ||
Frequency range (MHz) | Port1 | 790-960 |
Port2 | 1710-1880 | |
Port3 | 1920-2170 | |
Port4 | 2300-2700 | |
Port5 | 3300-4000 | |
Insertion loss (dB) | ≤0.42 | |
Isolation(dB) | ≥52 | |
Return loss/VSWR | ≤-18.5dB/1.27 | |
Intermodulation (dBc) | ≤-163 (with 2×20W) | |
Impedance (Ω) | 50 Ω | |
Input power (W) | ≤200 W(avg.) | |
Environmental | ||
Operation temperature | -10°C to +55 °C | |
Storage temperature | -20 °C to +85 °C | |
Relative humidity | 5% - 95% | |
Application | Indoor or outdoor (IP65) | |
Mechanical | ||
Dimensions(WxHxD)(mm) | Single:233*187*47 | |
RF Connectors | 4.3-10 Female | |
Schematic diagram :

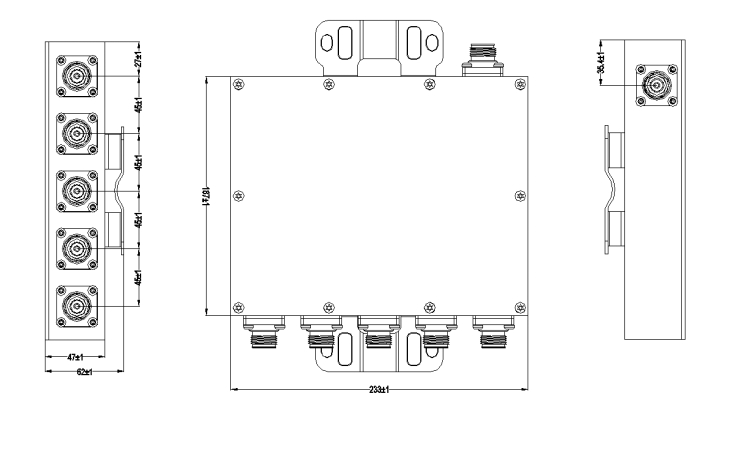

Outline drawing :
