Part No. | 9508040150 | |
Electrical | ||
Frequency range (MHz) | Port1 | 380-960 |
Port2 | 1710-1880 | |
Port3 | 1920-2170 | |
Port4 | 2300-2700 | |
Insertion loss (dB) | ≤0.4 | |
Isolation(dB) | ≥50 | |
Return loss/VSWR | ≤-19dB/1.25 | |
Intermodulation (dBc) | ≤-160dBc@2*43dBm | |
Impedance (Ω) | 50 Ω | |
Input power (W) | ≤200 W(avg.) | |
Environmental | ||
Operation temperature | -20°C to +65 °C | |
Storage temperature | -40 °C to +85 °C | |
Relative humidity | 5% - 95% | |
Application | Indoor or outdoor (IP65) | |
Mechanical | ||
Dimensions(WxHxD)(mm) | Single:204*167*47 Double:204*167*99 | |
RF Connectors | 4.3-10 Female | |
Schematic diagram :

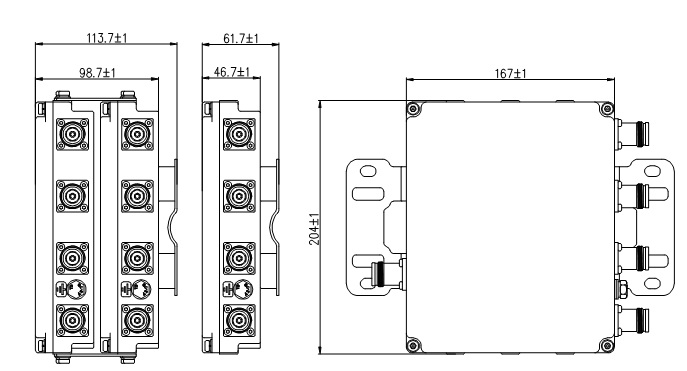

Outline drawing :
