l Wide frequency range 400MHZ ·
l Low VSWR & Insertion Loss
l High Isolation
Widely used for In-building Solutions
Specifications :
Part No. | 9608122020 | |
Electrical | ||
Frequency range (MHz) | RX | TX |
401.5～404.5MHz | 411.5～414.5MHz | |
Bandwidth | 3.0MHz | |
Insertion Loss | ≤1.8dB | |
Ripple | ≤0.8dB | |
Return Loss | ≥18 dB | |
Rejection | ≥95dB | |
Power rating | ≤50W(CW) | |
Temperature | -25℃～+70℃ | |
Connector Type | SMA-K，50Ω | |
Size | 336*84*68 | |
Color | Black | |
weights | 0.82kg | |

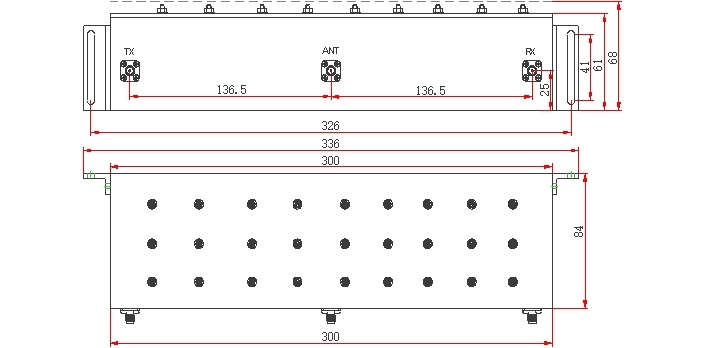

Outline drawing :
We take pride in our customer service and aim to provide 5-star support. If you have any questions about our products, feel free to call or email us.
Call 24Hr / 7Days
+86 198-2655-1792A duplexer is a three-port device that enables simultaneous transmission and reception of signals using a single antenna. It isolates the transmitter and receiver to prevent interference, allowing both to operate on different frequency bands. Applications Duplexers are widely used in: Base Stations: Facilitating communication in cellular networks. Repeater Systems: Enhancing signal coverage in large areas. Our Advantages High Performance: Our duplexers offer low insertion loss, high isolation, and excellent durability, ensuring reliable performance in demanding environments. Customization: We provide tailored solutions to meet specific frequency requirements and operational needs.
