Main Features
• Compact
• High reliability
• Simple installation
PARAMETERS | HT-DP-0005-SMA/F | |
Electrical Specifications | ||
Channel | Channel 1 | Channel 2 |
Frequency Range | 0 to 395MHz | 459 to 520MHz |
Return Loss | ≤ -14 dB | |
VSWR | ≤ 1.5:1 | |
Insertion loss in pass bands | ≤ 1.0dB | |
Isolation | 50 dB | |
Power Rating (AVG) | 5 Watt | |
Impedance | 50 Ω | |
Environmental Specifications | ||
Operating Humidity | 5% - 95% | |
Operating Temperature | -30 °C to +60 ºC | |
Mechanical Specifications | ||
Connector | SMA-Female | |
Weight | 150g | |
Outer Dimension | 80x62x22 mm | |
Packing | 1Pcs in box | |

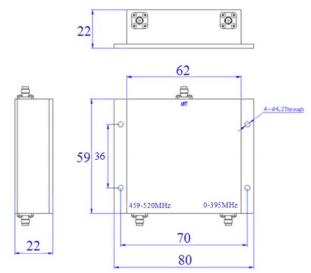

Structure Drawing:
We take pride in our customer service and aim to provide 5-star support. If you have any questions about our products, feel free to call or email us.
Call 24Hr / 7Days
+86 198-2655-1792A duplexer is a three-port device that enables simultaneous transmission and reception of signals using a single antenna. It isolates the transmitter and receiver to prevent interference, allowing both to operate on different frequency bands. Applications Duplexers are widely used in: Base Stations: Facilitating communication in cellular networks. Repeater Systems: Enhancing signal coverage in large areas. Our Advantages High Performance: Our duplexers offer low insertion loss, high isolation, and excellent durability, ensuring reliable performance in demanding environments. Customization: We provide tailored solutions to meet specific frequency requirements and operational needs.
