Specifications :
Part No. | ||
RX | TX | |
Frequency range (MHz) | 5150-5350MHz | 5700-5900MHz |
Bandwidth | 200MHz | 200MHz |
Insertion Loss(dB) | ≤0.5dB | ≤0.5dB |
Ripple (dB) | ※≤0.5 | ※≤0.5 |
Return Loss | ≥18dB | |
Rejection | ≥70dB@5700～5900MHz | ≥70dB@5150～5350MHz |
Power rating | 80W | |
Temperature | -20℃～+65℃ | |
Connector Type | SMA-F | |
Size | 75*52.5*20 | |
Color | Black | |
HT Part Code | 9608122120 | |

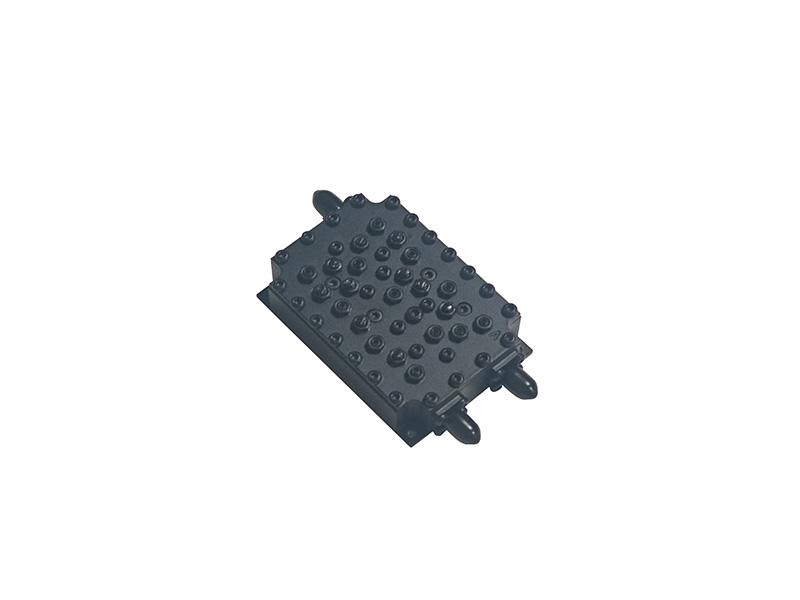

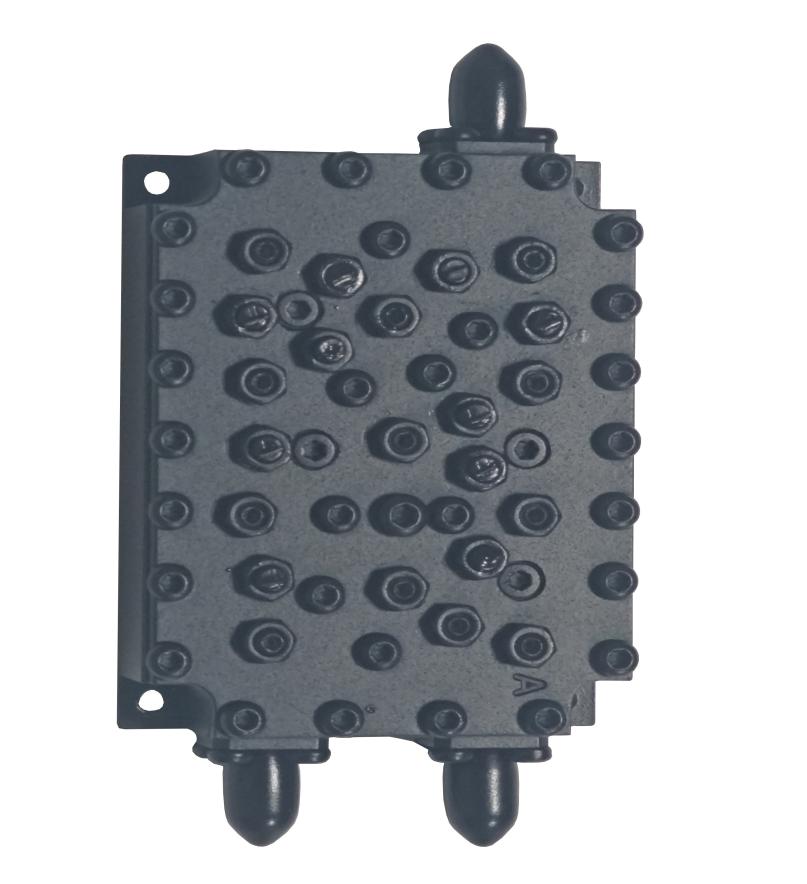

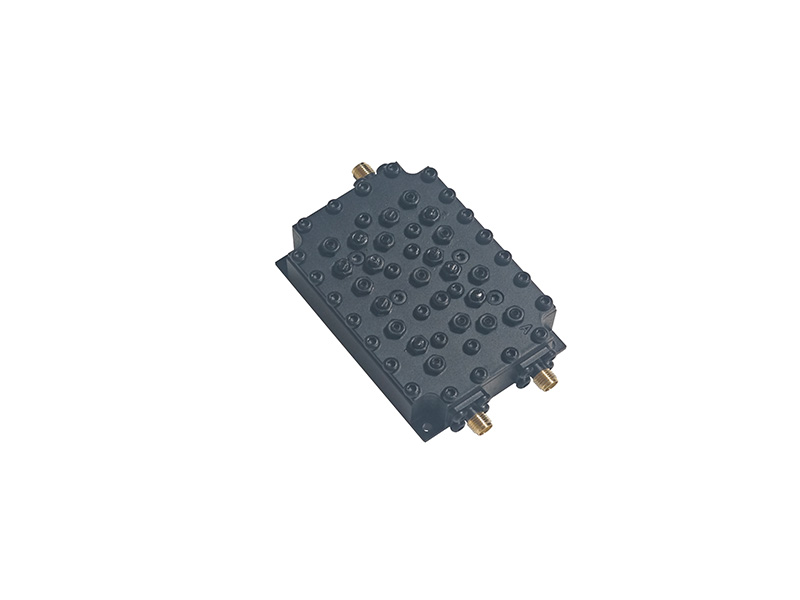

Productor picture:

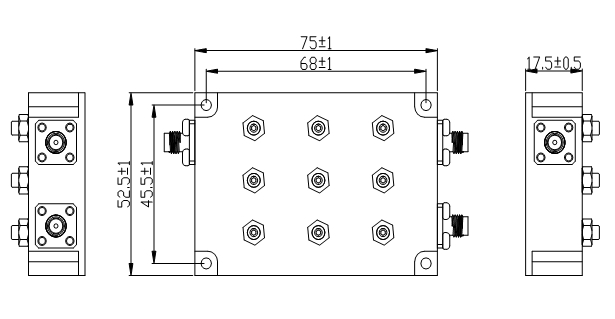

Outline drawing :
We take pride in our customer service and aim to provide 5-star support. If you have any questions about our products, feel free to call or email us.
Call 24Hr / 7Days
+86 198-2655-1792A duplexer is a three-port device that enables simultaneous transmission and reception of signals using a single antenna. It isolates the transmitter and receiver to prevent interference, allowing both to operate on different frequency bands. Applications Duplexers are widely used in: Base Stations: Facilitating communication in cellular networks. Repeater Systems: Enhancing signal coverage in large areas. Our Advantages High Performance: Our duplexers offer low insertion loss, high isolation, and excellent durability, ensuring reliable performance in demanding environments. Customization: We provide tailored solutions to meet specific frequency requirements and operational needs.
