Specifications :
Model No. | HT-HEXA-091821-SMA-F | ||||||
HT part code | 9608160120 | ||||||
Electrical characteristics | |||||||
Item | Band8-Rx | Band8-Tx | Band3-Rx | Band3-Tx | Band1-Rx | Band1-Tx | |
Frequency(MHz) | 890-915 | 935-960 | 1710-1760 | 1805-1855 | 1920-1980 | 2110-2170 | |
Bandwidth(MHz) | 25 | 25 | 50 | 50 | 60 | 60 | |
Insertion loss | ≤1.5dB | ≤1.5dB | ≤1.5dB | ≤1.5dB | ≤1.2dB | ≤1.0dB | |
In-Band Ripple | ≤1.0dB | ≤1.0dB | ≤1.0dB | ≤1.0dB | ≤0.6dB | ≤0.5dB | |
Intersection suppression(MHz) | ≥45dB @925 | ≥45dB @1782.5 | ≥45dB @2045 | ||||
≥45@1887.5 | ≥45@1887.5 | ||||||
Isolation（dB） | ≥80@935-960
| ≥80@890-915
| ≥80@1805-1855 | ≥80@1710-1760 | ≥80@2110-2170 | ≥80@1920-1980 | |
≥90@1710-1880MHz | ≥90@1710-1880MHz | ≥90@890-960MHz | |||||
≥90@1920-2170MHz | ≥90@1920-2170MHz | ≥90@1710-1855MHz | |||||
VSWR | ≤1.25 | ||||||
Input power (W) | 50W/per port (average power) | ||||||
color | Black | ||||||
Environment characteristics | |||||||
Operation temperature | -20°C to +65°C | ||||||
Storage temperature | -40°C to +85°C | ||||||
Relative humidity | 5% - 95% | ||||||
Mechanical characteristics | |||||||
Connectors | SMA-F | ||||||
Net Weight（kg） | *** | ||||||

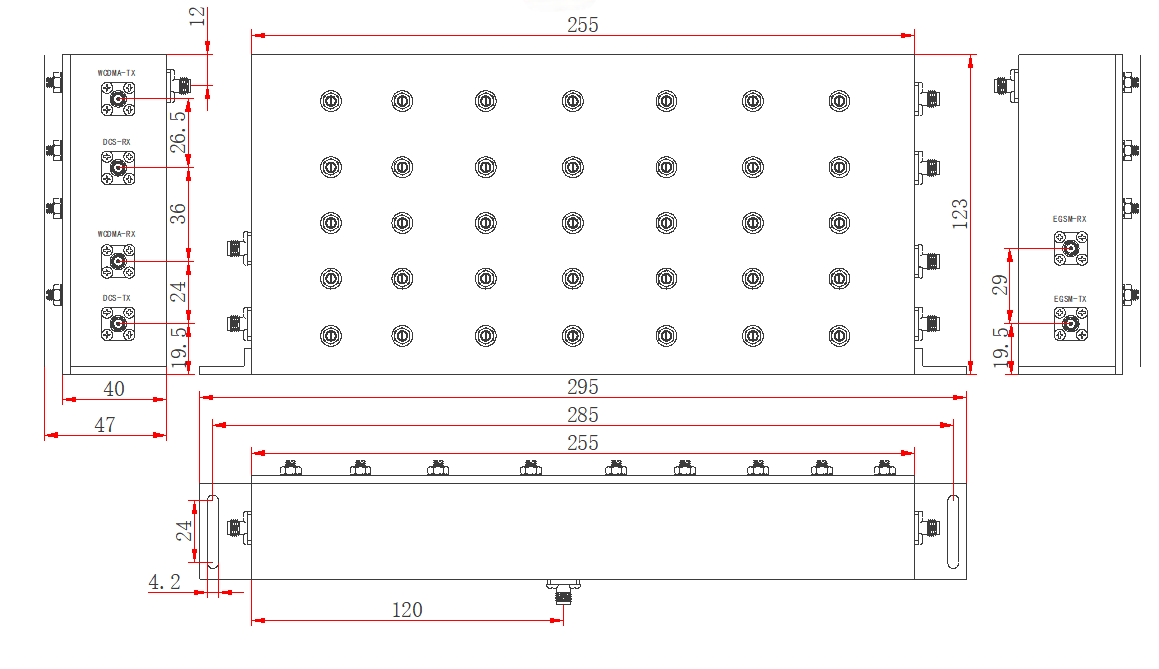

Dimension, mm | 255X123X47 | ||||||
Packing | 1Pce in box | ||||||
We take pride in our customer service and aim to provide 5-star support. If you have any questions about our products, feel free to call or email us.
Call 24Hr / 7Days
+86 198-2655-1792A duplexer is a three-port device that enables simultaneous transmission and reception of signals using a single antenna. It isolates the transmitter and receiver to prevent interference, allowing both to operate on different frequency bands. Applications Duplexers are widely used in: Base Stations: Facilitating communication in cellular networks. Repeater Systems: Enhancing signal coverage in large areas. Our Advantages High Performance: Our duplexers offer low insertion loss, high isolation, and excellent durability, ensuring reliable performance in demanding environments. Customization: We provide tailored solutions to meet specific frequency requirements and operational needs.
