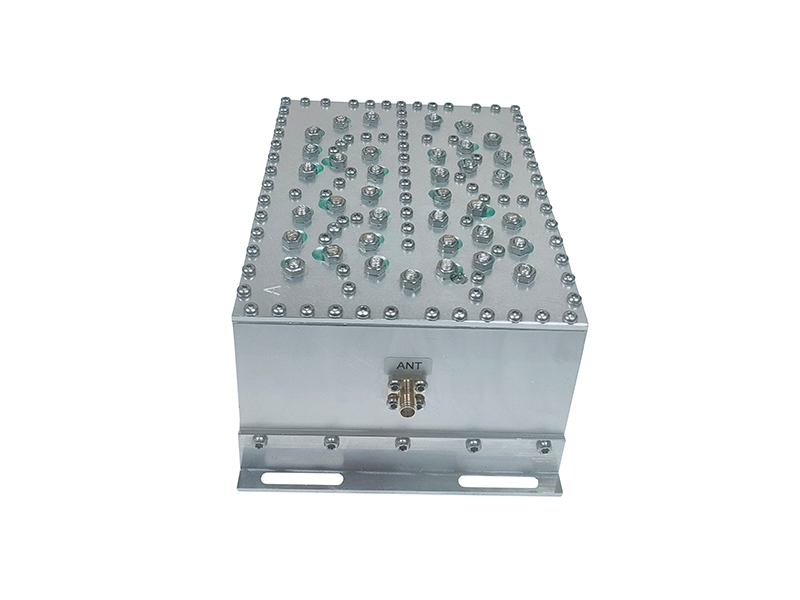

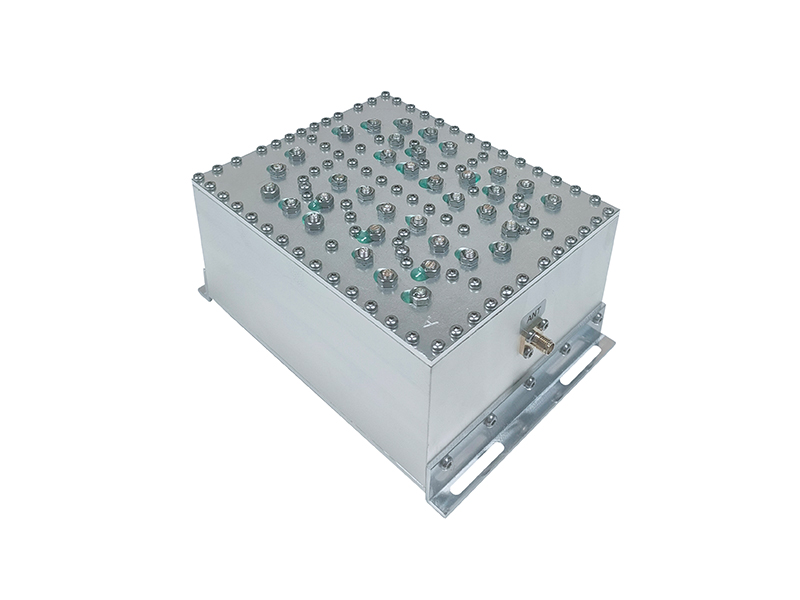

B1&B7&B20 Hexaplexer
Specifications :
Part No. | HT-HEPLEX-0726-SMA | |||||

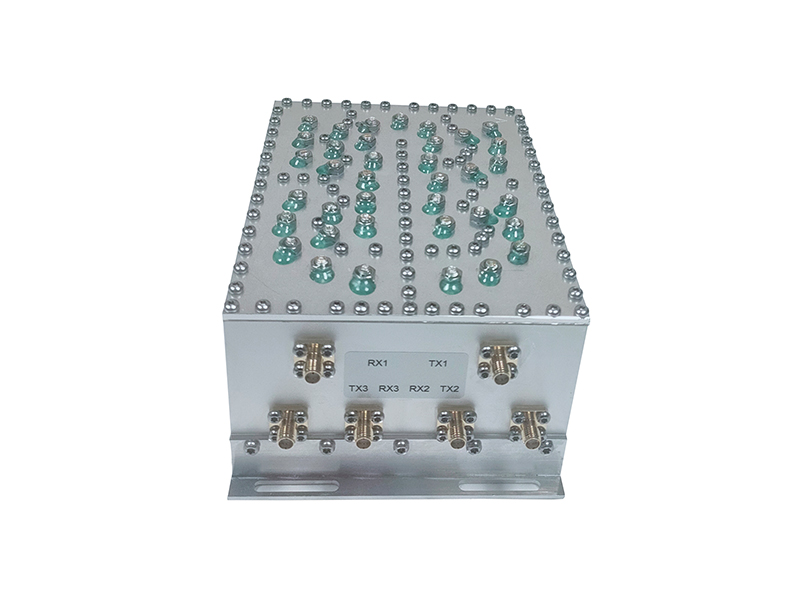

Port | RX1 | TX1 | RX2 | TX2 | RX3 | TX3 |
Frequency range | 791-821MHz | 832-862MHz | 1920-1980MHz | 2110-2170MHz | 2500-2570MHz | 2620-2690MHz |
Frequency band | 30 MHz | 30MHz | 60MHz | 60MHz | 70MHz | 70MHz |
Insertion loss | ≤1.5dB | ≤1.5dB | ≤1.5dB | ≤1.5dB | ≤1.5dB | ≤1.5dB |
Ripple | ≤1.2dB | ≤1.2dB | ≤1.0dB | ≤1.0dB | ≤1.0dB | ≤1.0dB |
Rejection | ≥40@826.5MHz | ≥40@2045MHz | ≥40@2595MHz | |||
Isolation | ≥80dB | |||||
VSWR | ≤1.25 | |||||
Impedance | 50Ω | |||||
Input power | 50W | |||||
Operation temperature | -20°C to +55°C | |||||
Dimensions | 162*115*70mm（without connector） | |||||
RF Connectors | SMA-Female | |||||
HT Part Code | 9008061020 | |||||

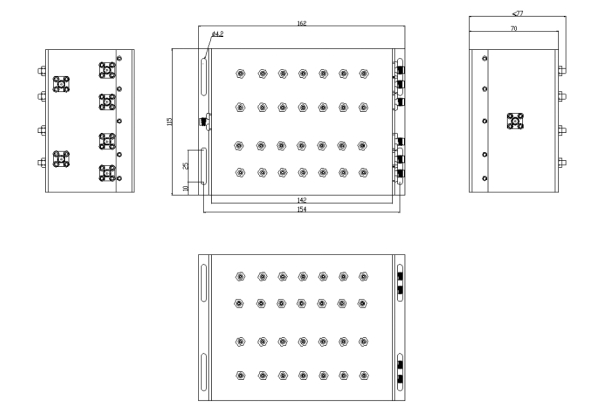

Outline Drawing :
We take pride in our customer service and aim to provide 5-star support. If you have any questions about our products, feel free to call or email us.
Call 24Hr / 7Days
+86 198-2655-1792A duplexer is a three-port device that enables simultaneous transmission and reception of signals using a single antenna. It isolates the transmitter and receiver to prevent interference, allowing both to operate on different frequency bands. Applications Duplexers are widely used in: Base Stations: Facilitating communication in cellular networks. Repeater Systems: Enhancing signal coverage in large areas. Our Advantages High Performance: Our duplexers offer low insertion loss, high isolation, and excellent durability, ensuring reliable performance in demanding environments. Customization: We provide tailored solutions to meet specific frequency requirements and operational needs.
