Specifications :

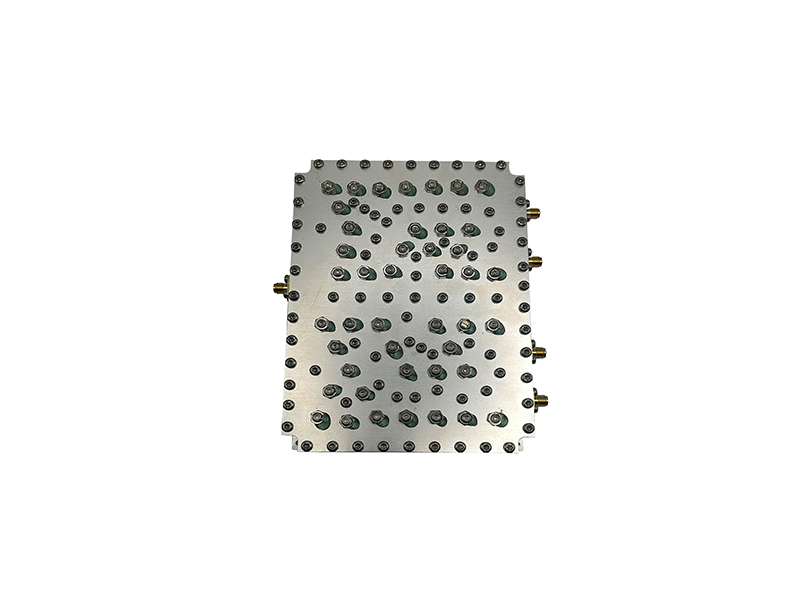

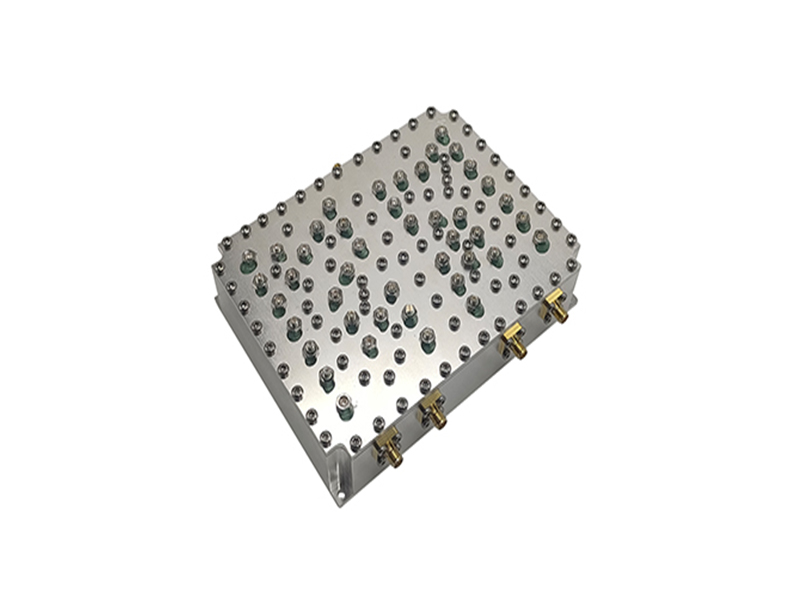

Model No. | HT-Quard-0918-SMA-F | |||
900Item420 | RX1 | TX1 | RX1 | TX2 |
Frequency(MHz) | 903.3-914.9MHz | 948.3-959.9MHz | 1734.9-1759.9MHz | 1829.9-1854.9MHz |
Insertion loss | ≤1.2dB | |||
Isolation（dB） | ≥80dB@ | |||
VSWR | ≤1.3 | |||
Impedance | 50Ω | |||
Input power (W) | 40W(avg.) 200W（peak） | |||
Operation temperature | -20°C ～ +55°C | |||

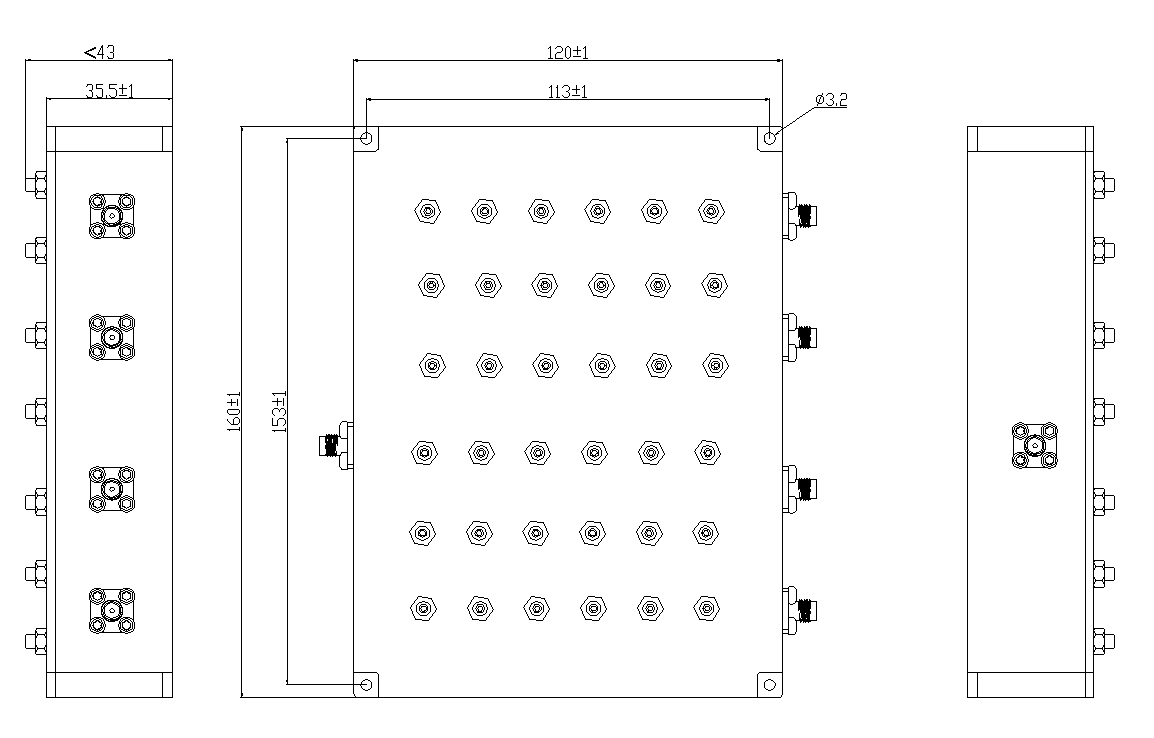

Dimension, mm | 160*120*35.5mm | |||
Connectors | SMA-F | |||
HT part code | 9008141420 | |||
We take pride in our customer service and aim to provide 5-star support. If you have any questions about our products, feel free to call or email us.
Call 24Hr / 7Days
+86 198-2655-1792A duplexer is a three-port device that enables simultaneous transmission and reception of signals using a single antenna. It isolates the transmitter and receiver to prevent interference, allowing both to operate on different frequency bands. Applications Duplexers are widely used in: Base Stations: Facilitating communication in cellular networks. Repeater Systems: Enhancing signal coverage in large areas. Our Advantages High Performance: Our duplexers offer low insertion loss, high isolation, and excellent durability, ensuring reliable performance in demanding environments. Customization: We provide tailored solutions to meet specific frequency requirements and operational needs.
