l Maximum support connecting 4 ways of 2G 3G 4G or 5G signal.·
l Support 4G or 5G 2*2 MIMO.
l MGC and ALC functions.
l Digital filtering technology.
l MU supports 4 sets of EU connecting in a parallel.
l EU supports 8 sets of RU in parallel or cascading EU.
l Support 2KM optical fiber transmission distance.
l Support LAN connection to local OMT monitoring software.
l Support 4G modem remote connection to network management platform.
Specifications :
Part No. | 6010100001 | |
Model | 6010100001-BxBx-MU/EU/RU | 6010100001-BxBxBx-MU/EU/RU |
Frequency Bands | Any two band in“x” | Any three band in“x” |
Bandwidth | Can be customized | |
Gain | UL 40dB, DL 40dB | |
Output Power | UL -20dBm, DL 27dBm | |
Gain Attenuate | 1~31dB, Step of 1dB | |
ALC Control Range | ≥ 30dB | |
VSWR | ≤ 2.0 | |
Spurious Emission | ≤-36 dBm @ 9KHz~1GHz, ≤-30 dBm @ 1GHz~12.75GHz | |
ACRR | Fully comply with 3GPP | |
EVM | Fully comply with 3GPP | |
PCDE | Fully comply with 3GPP | |
Noise Figure | ≤ 6 dB | |
Group Delay | ≤13 μs | |
Optical Interface | LC/LC | |
Dimension | 440*330*47mm @ MU;440*330*70mm @ EU;350*195*120mm @ RU | |
Weight | <5kg @ MU;<6.5kg @ EU;<8.2kg @ RU | |
Supply | AC 100~264V/50Hz @MU & EU;AC 100~264V/50Hz or DC 48V by EU @RU | |

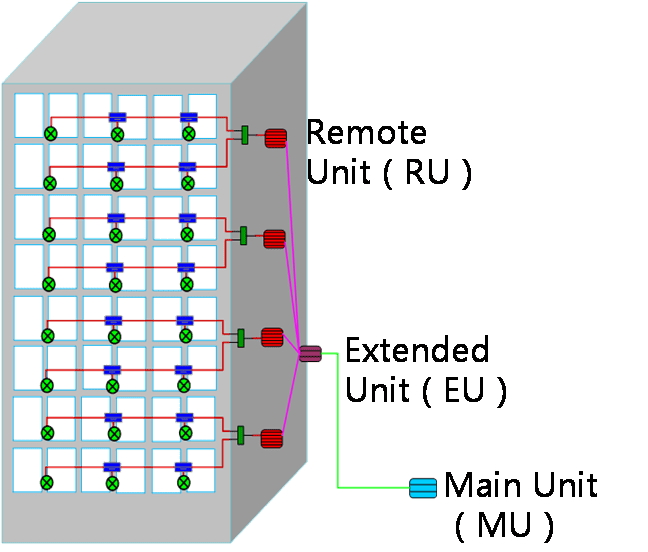

Application diagram:
