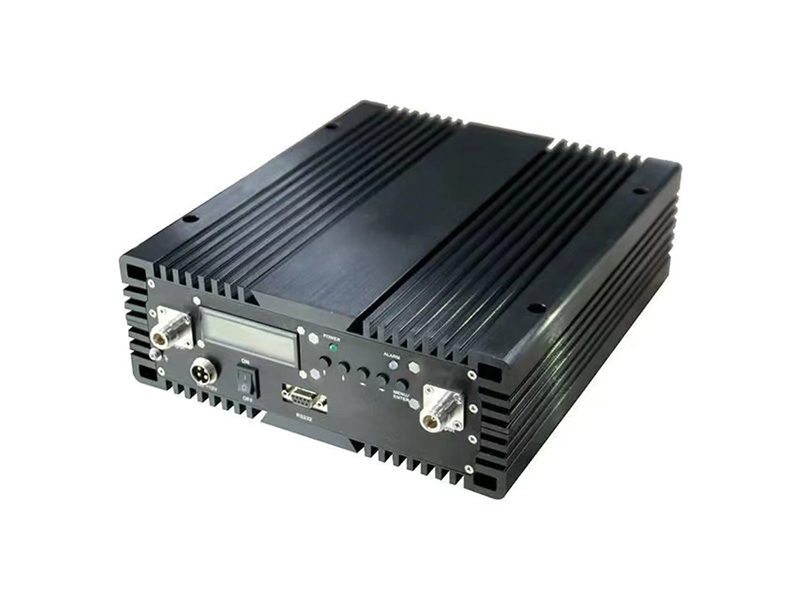

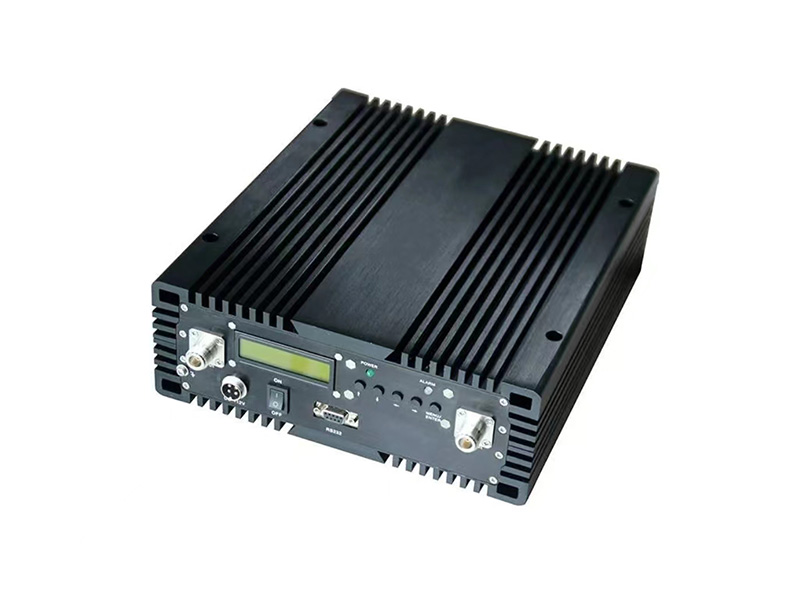

l Hutsin 20dBm 70dB high power easy to cover 600-1000 m2 and easy to install.·
l Hutsin Digital ALC technology,auto limit the output power to ensure stable signal coverage.
l OLED display of system operating status such as frequency,gain,output power and isolation.
l Anti-interference,real time auto ISO detection and Self Oscillation Elimination keeping base station away from interference.
l Able to increase signal coverage,decrease mobile phone radiation, and increase mobile phone battery lifespan.
Specifications :
Part No. | 6010100004 | |
Model | Uplink | Downlink |
Frequency Bands | 890 -915 MHz/ 1710 - 1785 MHz | 935 - 960 MHz/ 1805 - 1880 MHz |
1920 -1980 MHz | 2110 -2170 MHz | |
890 - 915 MHz (2 bands) | 935 - 960 MHz (2 bands) | |
1710 - 1785 MHz/ 1920 - 1980 MHz | 1805 -1880 MHz/ 2110 - 2170 MHz | |
Max.Gain | 60 - 70 dB | 60 ~ 70 dB |
Bandwidth | available upon request | |
Manual Gain Control | 31dB in step of 1dB | |
Automatic Gain Control | > 20dB | |
Ripple in Band | ≤3dB(Typical) | |
Out of Band Gain | ± 400 KHz ≦ 50 dB | |
± 600 KHz ≦40 dB | ||
± 1 MHz ≦ 35 dB | ||
± 5 MHz ≦ 25 dB | ||
Max. Input Power Without Damage | 0 dBm | |
Output Power | 15 ~ 17 dBm | 20 ~ 24 dBm |
Intermodulation Products | ≦ -36 dBm | ≦ -36 dBm |
≦ -30 dBm | ≦ -30 dBm | |
Spurious Emission | ≦ -36 dBm | ≦ -36 dBm |
≦ -30 dBm | ≦ -30 dBm | |
Spurious Emission Mask( WCDMA ) | Complies with 3GPP TS 25.106 | |
Modulation Accuracy( WCDMA ) | Complies with 3GPP TS 25.106 | |
Peak Code Domain Error( WCDMA ) | Complies with 3GPP TS 25.1062 | |
ACRR( WCDMA ) | ≥ 30dB @ ±5MHz & ±10MHz | |
Frequency Stability | ≤0.01 ppm | |
Noise Figure @ max. gain | ≦8 dB(Typical) | |
Return loss | ≦-10 dB | |
Time Delay | ≦4.5 μs | |
MTBF | > 50000 hours | |
Power Supply | AC: 90~265V, 50/ 60Hz；DC: 9V 10A | |
Power Consumption | < 65W | |
Impedance | 50 ohm | |
Input Signal Level | At the edge of green and orange ( -50dBm or more) | |
Green | ||
>1-5dB range: Orange;>20dB: Red | ||

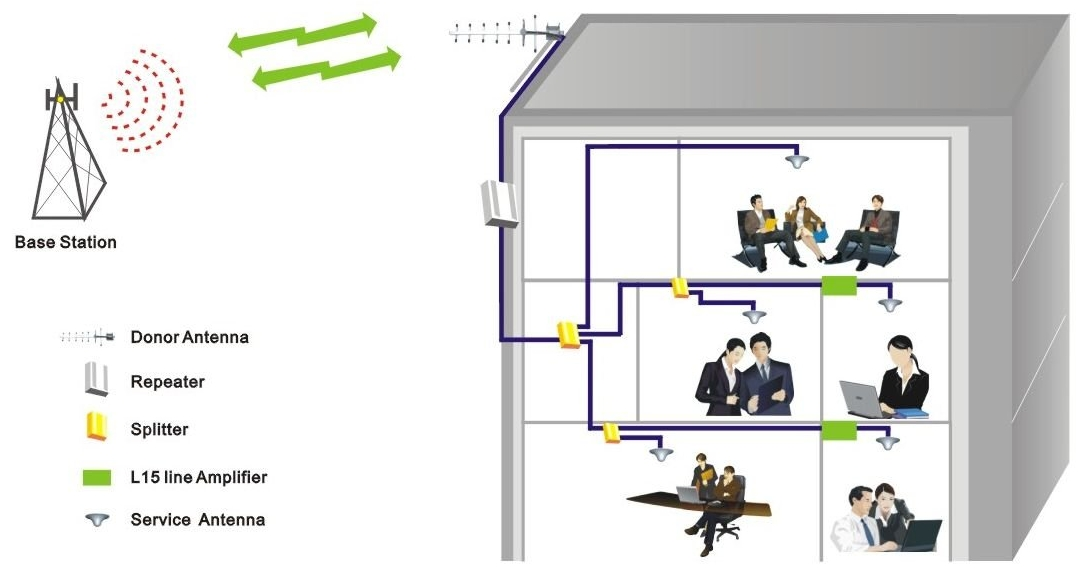

Application diagram:
