Five Bands Signal Repeater For All Country

A Repeater is an active device used in RF communication systems to amplify and retransmit signals, extending the range and improving the quality of communication between transmitter and receiver. It receives a weak or degraded signal, amplifies it, and then retransmits the signal with increased power and clarity. Applications: Wireless Communication Networks: Repeater devices are commonly deployed in wireless communication networks to enhance signal coverage in areas with weak or fluctuating signal strength, such as remote locations, tunnels, or buildings with thick walls. Advantages of Our Product: Advanced Amplification Technology: Our repeater products feature advanced amplification technology, providing high gain and low noise amplification for improved signal quality and coverage extension.

Always on time

Acceptable price

Excellent quality

Product Detail

Message

l  99% pass customs clearance,Hutsin have many certificates,such as CE, RoHS, FCC,etc....·

l 100% solve mobile cell phone weak signal problem.

l Easy to cover over 600-1000m2 and easy to install.

l Large-size OLED screen to display device's operating parameters.

l Real time isolation detection function. Device will auto detect and alarm when at insufficient isolation.

l Idle stand-by function, uplink will auto enter stand-by mode while no active users in the coverage area, to decrease interference to the base station.

l ALC Auto Level Control Function to ensure stable signal.

l MGC Manual Gain Control Function, with 1dB step to attenuate gain among the range of 25dB

l MTBF can be up to 100,000 hours


Specifications :

Part No.

6010100006

Model

6010100006-EU

6010100006-BR1

6010100006-BR2

6010100006-SA

6010100006-SA+

Frequency Bands

1, 3, 7, 8 ,20 @ 6010100006- EU

1, 3, 5, 7, 28 @ 6010100006- BR1

1, 3, 8, 7, 28 @ 6010100006- BR2

2, 4, 5 ,7, 28 @ 6010100006- SA

25, 66, 5, 7, 28 @ 6010100006- SA+

Bandwidth

Full Bandwidth

Gain

UL 70dB , DL  75dB

Output Power

UL 15dBm, DL  20dBm

Gain Attenuate

1~31dB, Step of 1dB

ALC Control Range

≥ 25dB

VSWR

≤ 2.0

Spurious Emission

≤-36 dBm @ 9KHz~1GHz, ≤-30 dBm @ 1GHz~12.75GHz

ACRR

 Fully comply with 3GPP

EVM

 Fully comply with 3GPP

PCDE

 Fully comply with 3GPP

Noise Figure

≤ 8 dB

Group Delay

≤1.5 μs

Power Supply

DC:12V /3A

Dimension

250*230*50mm

Weight

<2.5kg

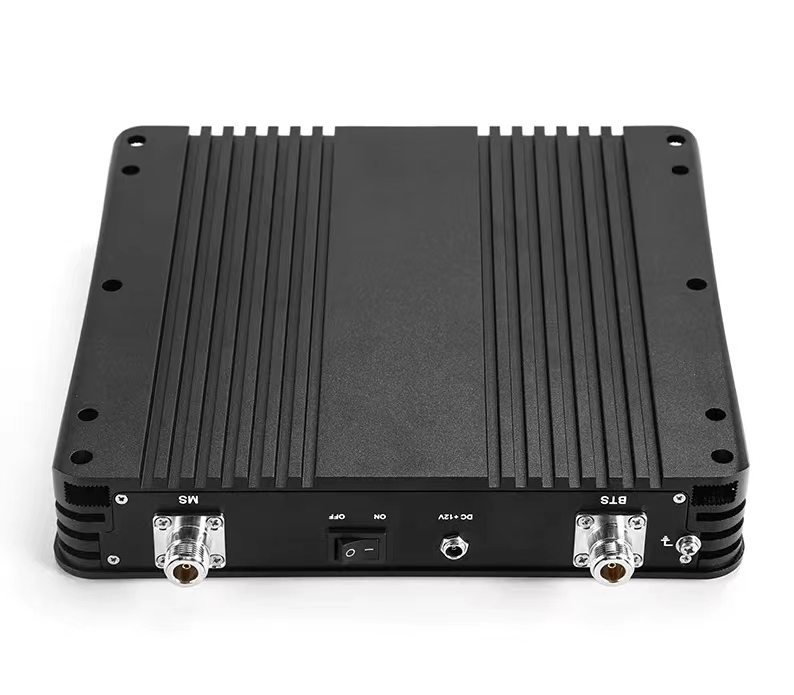

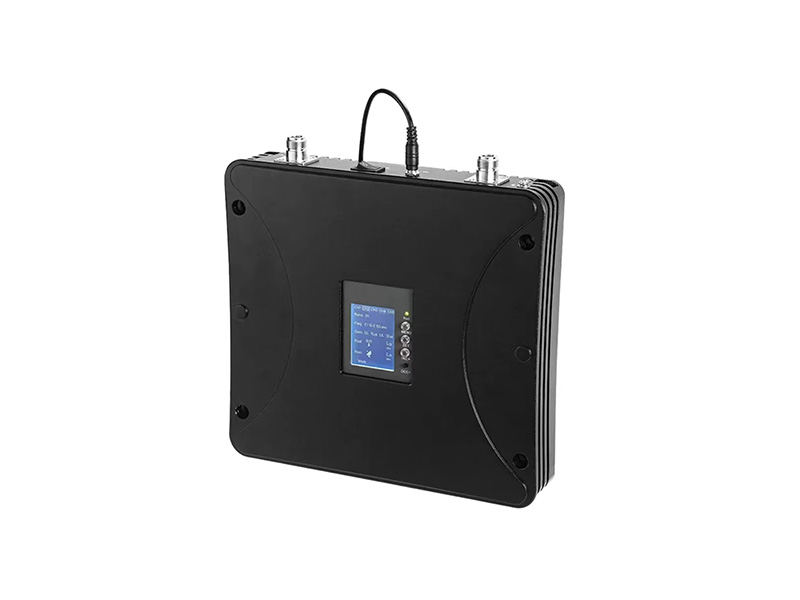

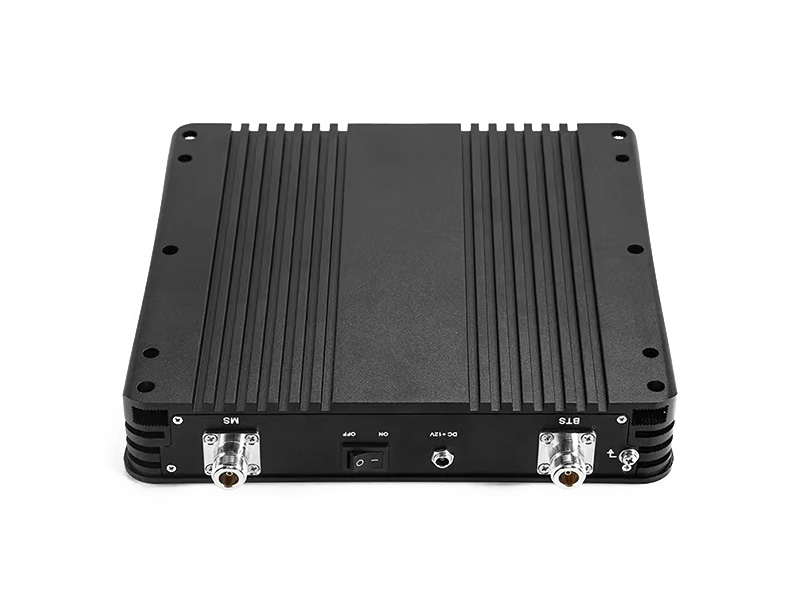

Product Image:

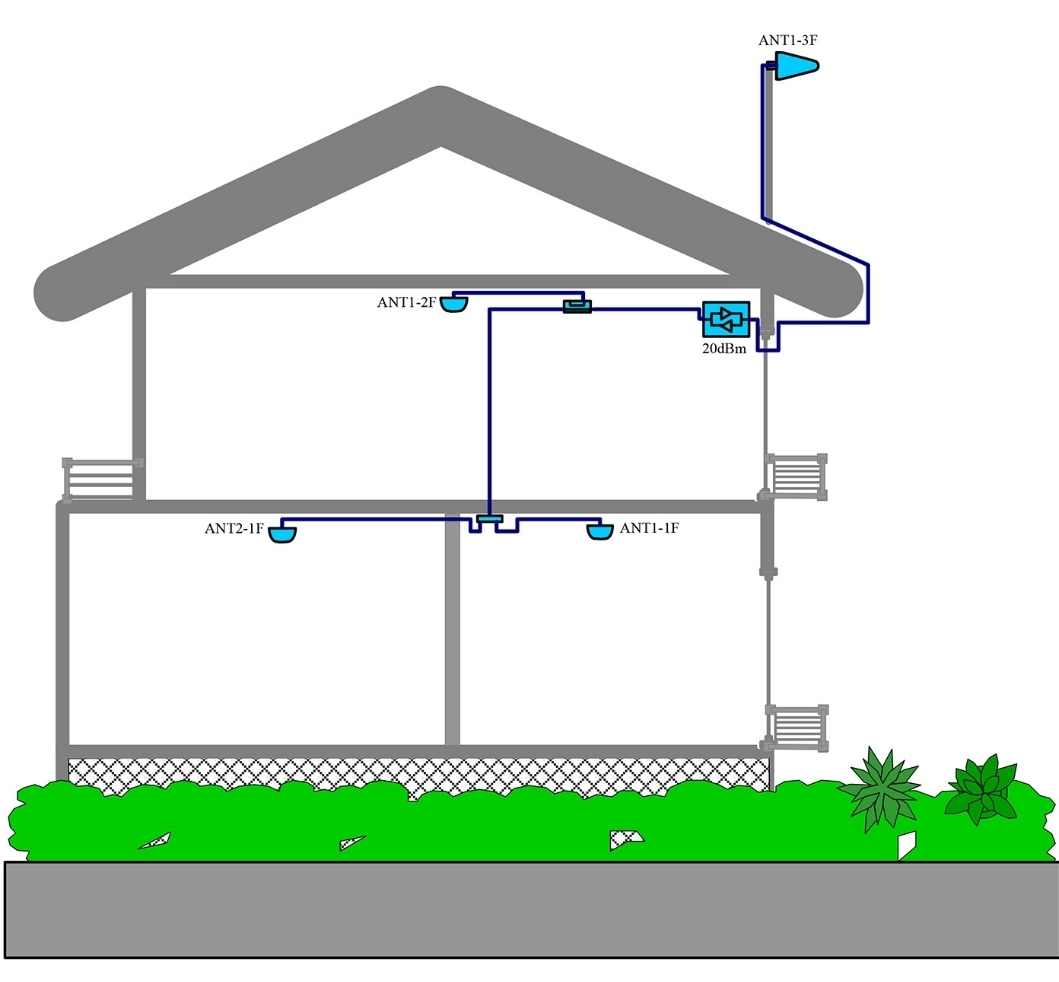

Application diagram:
