Always on time
Acceptable price
Excellent quality
l 99% pass customs clearance,Hutsin have many certificates,such as CE,RoHS,FCC,etc....·
l 100% solve mobile cell phone weak signal problem.
l Full band support (or narrow band).
l Digital RF and light processing.
l Uplink Noise Suppression.
l Supports optical bypass and optical delay calibration function.
l Auto Level Control to limit the output power to ensure safe and stable coverage.
l Internal backup battery for sending alarms during power failure.
l Connect to Hutsin cloud platform via 4G modem for remote management and monitoring.
l MTBF >100,000 hours.
Specifications :
Part No. | 6010100005 |
Model | 6010100005-Bx-MU/ RU 6010100005-BxBx-MU/ RU |
Frequency Bands | Any one band in "x" @ 6010100005-Bx Any two band in "x" @ 6010100005-BxBx |
Bandwidth | Full Bandwidth or Customize |
Gain | UL 90dB (MU+RU), DL 95dB (MU+RU) |
Output Power | UL 30dBm (MU), DL 43dBm (RU) |
Gain Attenuate | 1~31dB, Step of 1dB |
ALC Control Range | ≥30 dB |
VSWR | ≤ 1.5 |
Spurious Emission | ≤-36dBm @ 9KHz~1GHz,≤-30dBm @ 1GHz~12.75GHz |
ACRR | Fully comply with 3GPP |
EVM | Fully comply with 3GPP |
PCDE | Fully comply with 3GPP |
Noise Figure | ≤5.0dB |
Group Delay | ≤6us |
Optical Transmit Power | ≥-6dBm |
Optical Receive Sensitivity | ≤-15dBm |
Optical Transmission Distance | ≥15 KM |
Optical Interface | FC/LC |
Local Monitoring | PC software via RJ45 |
Remote Monitoring | Connect to Amplitec cloud platform via 4G modem |
Humidity | <90% |
Operating Temperature | -10℃ ~ +55℃ |
Power Supply | AC 100~264V/ 50~63Hz |
Power Consumption | ≤35W @ 6010100005-Bx-MU ≤100W @ 6010100005-Bx-RU ≤80W@ 6010100005-BxBx-MU ≤280W@ 6010100005-BxBx-RU |
Dimension | 370×300×150 mm @ 6010100005-Bx-MU 430×350×190 mm @ 6010100005-Bx-RU 370×300×180 mm @ 6010100005-BxBx-MU 490×410×190 mm @ 6010100005-BxBx-RU |
Weight | ≤12 kg @ 6010100005-Bx-MU ≤15 kg @ 6010100005-Bx-RU ≤15 kg @ 6010100005-BxBx-MU ≤28 kg @ 6010100005-BxBx-RU |

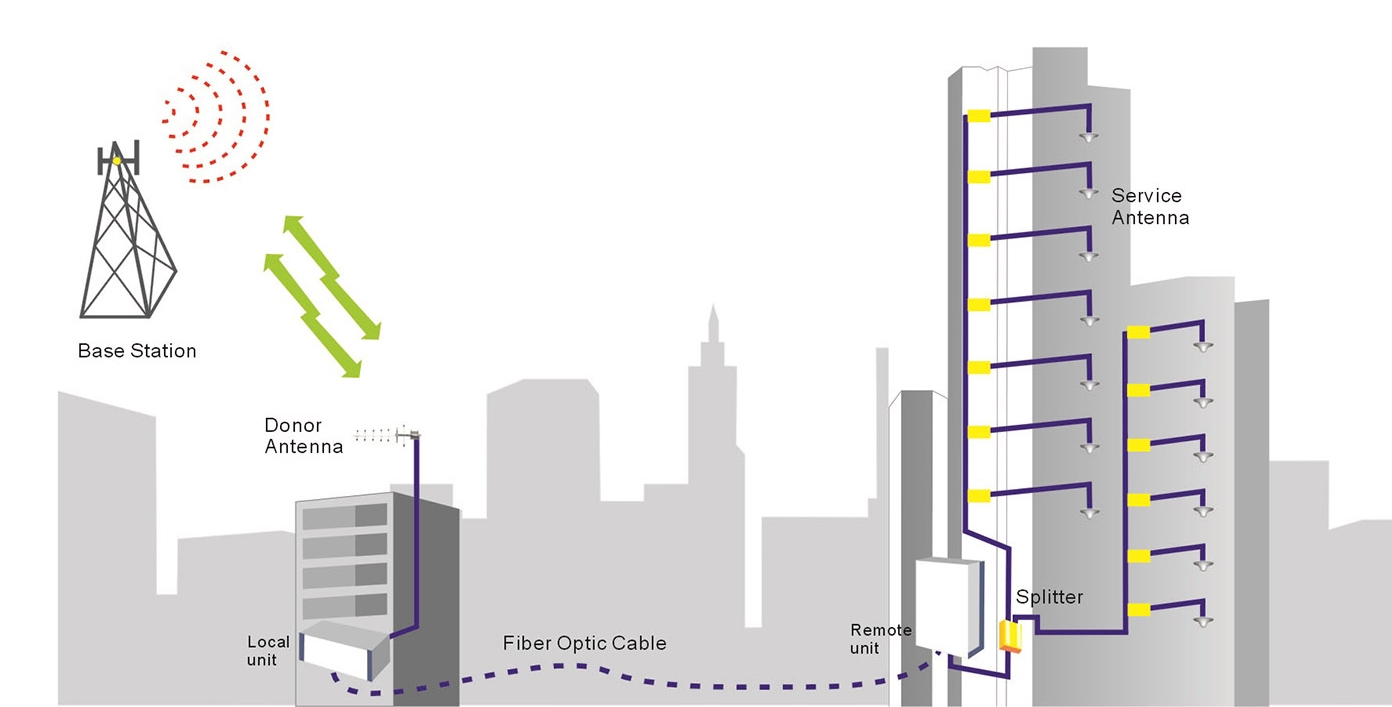

Application diagram:
We take pride in our customer service and aim to provide 5-star support. If you have any questions about our products, feel free to call or email us.
Call 24Hr / 7Days
+86 198-2655-1792A Repeater is an active device used in RF communication systems to amplify and retransmit signals, extending the range and improving the quality of communication between transmitter and receiver. It receives a weak or degraded signal, amplifies it, and then retransmits the signal with increased power and clarity. Applications: Wireless Communication Networks: Repeater devices are commonly deployed in wireless communication networks to enhance signal coverage in areas with weak or fluctuating signal strength, such as remote locations, tunnels, or buildings with thick walls. Advantages of Our Product: Advanced Amplification Technology: Our repeater products feature advanced amplification technology, providing high gain and low noise amplification for improved signal quality and coverage extension.
