Always on time
Acceptable price
Excellent quality
l 99% pass customs clearance,Hutsin have many certificates,such as CE,RoHS,FCC,etc....·
l 100% solve mobile cell phone weak signal problem.
l Signal booster able to increase signal coverage, decrease mobile phone radiation, and increase mobile phone battery lifespan.
l Hutsin's signal repeater easy to cover over 1000-3000m2 and easy to install.
l Dual band support two frequency bands high power 2g 3g 4g home signal booster.
l ALC function,auto control of output power for stable coverage.
l Average using life is over 5 years and one year warranty.
Specifications :
Part No. | 6010100003 |
Frequency Bands | Any two in band 1, 2, 3, 4, 5, 7, 8, 20, 25, 28, 66 |
Bandwidth | Full Bandwidth |
Gain | UL 73dB , DL 73dB |
Output Power | UL 23dBm, DL 23dBm |
Gain Attenuate | 1~31dB, Step of 1dB |
ALC Control Range | ≥25dB |
VSWR | ≤2.0 |
Spurious Emission | ≤-36dBm @ 9KHz~1GHz, ≤-30dBm @ 1GHz~12.75GHz |
ACRR | Fully comply with 3GPP |
EVM | Fully comply with 3GPP |
PCDE | Fully comply with 3GPP |
Noise Figure | ≤8.0dB |
Group Delay | ≤1.5μs |
Power Supply | DC 12V /3A |
Dimension | 292*140*48mm |
Weight | <1.8kg |

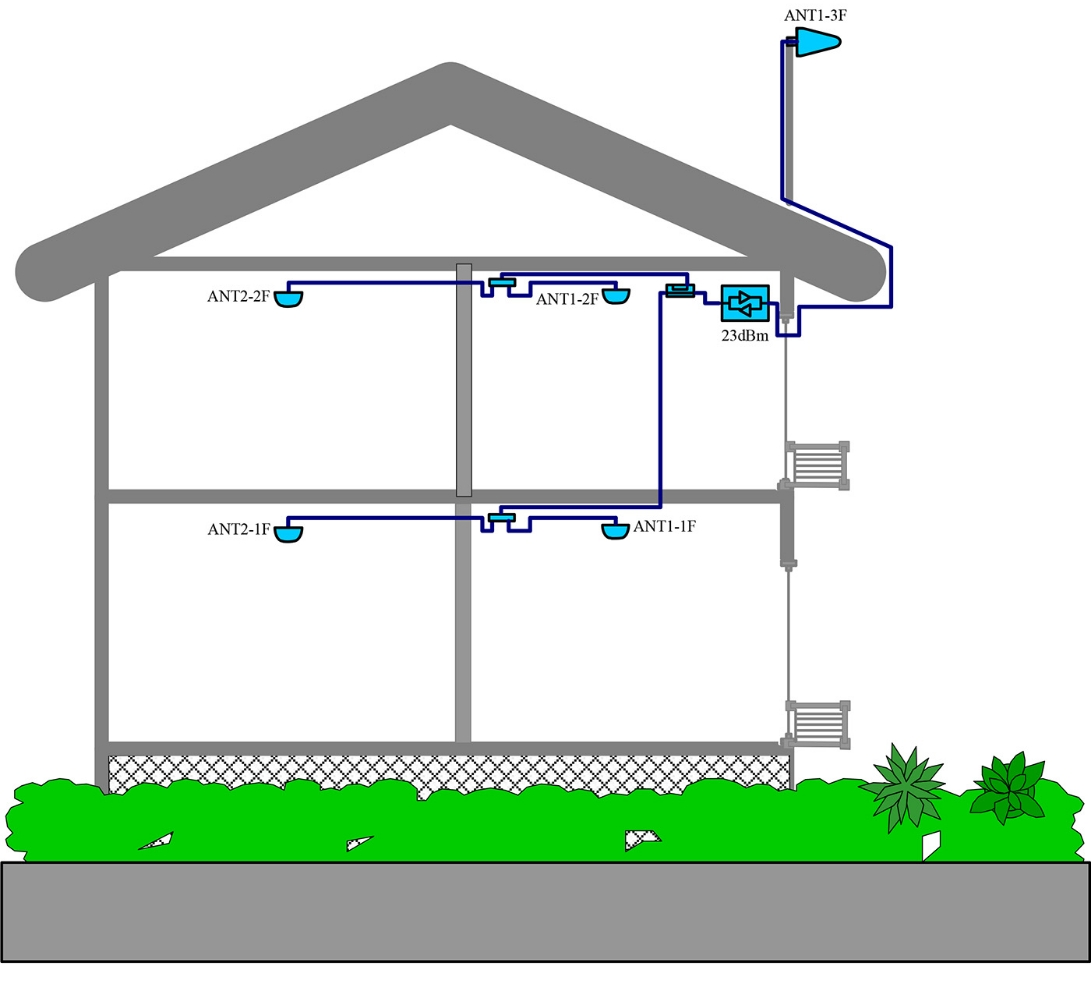

Application diagram:
We take pride in our customer service and aim to provide 5-star support. If you have any questions about our products, feel free to call or email us.
Call 24Hr / 7Days
+86 198-2655-1792A Repeater is an active device used in RF communication systems to amplify and retransmit signals, extending the range and improving the quality of communication between transmitter and receiver. It receives a weak or degraded signal, amplifies it, and then retransmits the signal with increased power and clarity. Applications: Wireless Communication Networks: Repeater devices are commonly deployed in wireless communication networks to enhance signal coverage in areas with weak or fluctuating signal strength, such as remote locations, tunnels, or buildings with thick walls. Advantages of Our Product: Advanced Amplification Technology: Our repeater products feature advanced amplification technology, providing high gain and low noise amplification for improved signal quality and coverage extension.
