l 99% pass customs clearance,Hutsinb have many certificates,such as CE,RoHS,FCC,etc...
l 43dBm 95dB signal booster indoor coverage area upto 15000-23000㎡,outdoor upto 4-8km and waterproof easy to install.
l OLED display of operating status at a glance, easy and convenient Push-button operation.
l Can be controlled and monitored, via USB connects PC for local control, via 3G or 4G modem connects PC for remote control.
l Adjustable frequency and bandwidth.
l Support the uplink quiet noise function, low interference.
l Digital ALC, auto control of output power ensuring stable signal coverage.
l Anti-interference, real time auto ISO detection and Self Oscillation Elimination keeping base station away from interference.
l Manual gain attenuation, attenuation of gain in the range of 1-31dB with 1dB step.
Specifications :
Part No. | 6010100002 |
Model | 6010100002-Bx 6010100002-BxBx 6010100002-BxBxBx |
Frequency Bands | Any one in band 1, 2, 3, 4, 5, 7, 8, 20, 25, 28, 66 @ 6010100002-Bx Any two in band 1, 2, 3, 4, 5, 7, 8, 20, 25, 28, 66 @ 6010100002-BxBx Any three in band 1, 2, 3, 4, 5, 7, 8, 20, 25, 28, 66 @ 6010100002-BxBxBx |
Bandwidth | 0.2~24MHz can be set |
Gain | UL 90dB , DL 95dB |
Output Power | UL 24dBm, DL 43dBm |
Gain Attenuate | 1~31dB, Step of 1dB |
ALC Control Range | ≥30dB |
VSWR | ≤2.0 |
Spurious Emission | ≤-36dBm @ 9KHz~1GHz ≤-30dBm @ 1GHz~12.75GHz |
ACRR | Fully comply with 3GPP |
EVM | Fully comply with 3GPP |
PCDE | Fully comply with 3GPP |
Out of band Gain | Fully comply with 3GPP |
Noise Figure | ≤6dB @ 6010100002-Bx ≤8dB @ 6010100002-BxBx, @ 6010100002-BxBxBx |
Group Delay | ≤9μs |
Power Supply | AC 100~264V / 50Hz |
Dimension | 490x410x190mm @ 6010100002-Bx 490x410x210mm @ 6010100002-BxBx 698x500x225mm @ 6010100002-BxBxBx |
Weight | <25kg @ 6010100002-Bx <28kg @ 6010100002-BxBx <38kg @ 6010100002-BxBxBx |

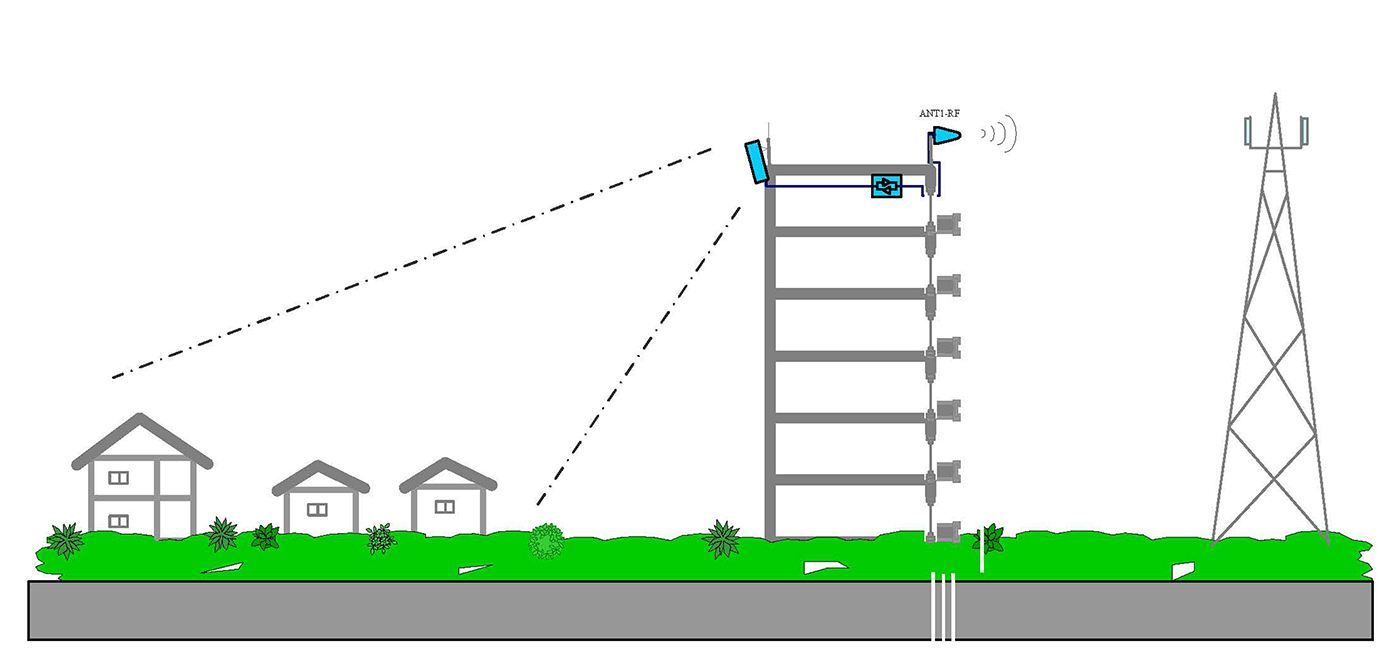

Application diagram:
We take pride in our customer service and aim to provide 5-star support. If you have any questions about our products, feel free to call or email us.
Call 24Hr / 7Days
+86 198-2655-1792A Repeater is an active device used in RF communication systems to amplify and retransmit signals, extending the range and improving the quality of communication between transmitter and receiver. It receives a weak or degraded signal, amplifies it, and then retransmits the signal with increased power and clarity. Applications: Wireless Communication Networks: Repeater devices are commonly deployed in wireless communication networks to enhance signal coverage in areas with weak or fluctuating signal strength, such as remote locations, tunnels, or buildings with thick walls. Advantages of Our Product: Advanced Amplification Technology: Our repeater products feature advanced amplification technology, providing high gain and low noise amplification for improved signal quality and coverage extension.
