l Wide frequency range 694 to 3800 MHZ for 2G/3G/4G/5G applications ·
l Low passive intermodulation 150dBc·
l Low VSWR & insertion loss ·
l Indoor & outdoor use; IP65
l Connector Type N/ 4.3/10 /7-16 DIN Available
Specifications :
Part No. | 9528330250 |
Electrical | |
Frequency range (MHz) | 694-3800 |
VSWR: 694 – 2700 MHz 2700 – 3800 MHz | ≤ 1.3 (Port 1) ≤ 1.4 (Port 1) |
Insertion Loss(dB): 694 – 2700 MHz 2700 – 3800 MHz | 4.8 dB ± 0.4 dB 4.8 dB ± 0.5 dB |
Intermodulation (dBc) | ≤-150dBc (with 2×43dBm) |
Impedance (Ω) | 50 Ω |
Input power (W) | 300 |
Environmental | |
Temperature range | -25°C ~ +55°C |
Phase difference | ≤ 20° |
Application | Indoor or outdoor (IP65) |
Mechanical | |
Connector | 4.3-10-Female |
Color | Grey |
Weight(kg) | 0.52 |
Dimension(mm) | 82.7mm×89.3mm×23.5mm |

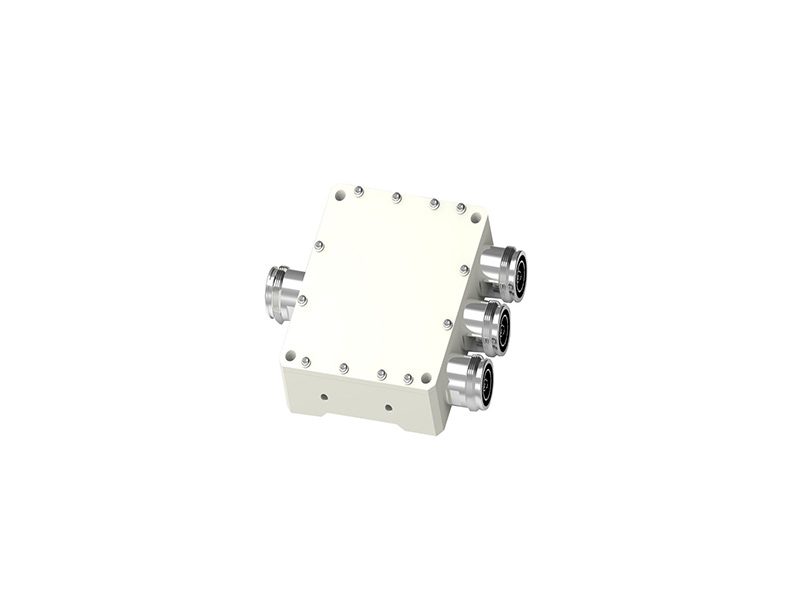

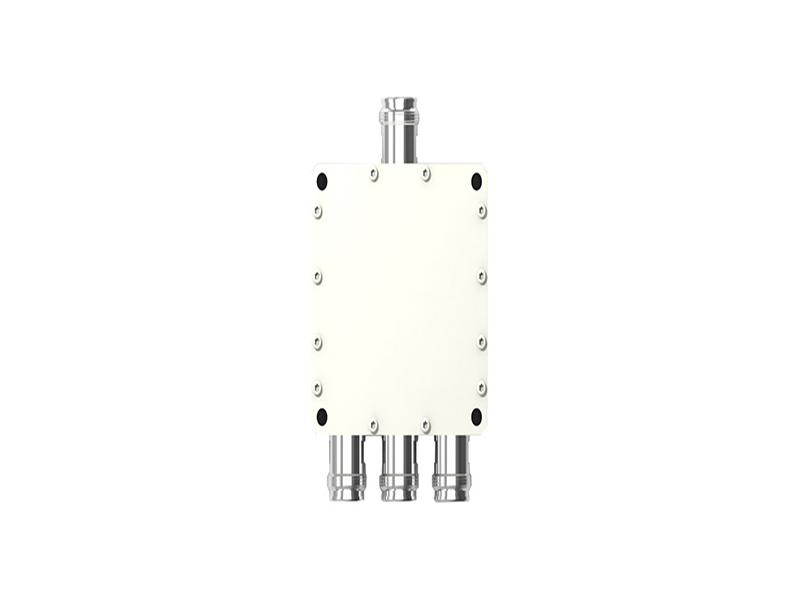

Product Image:

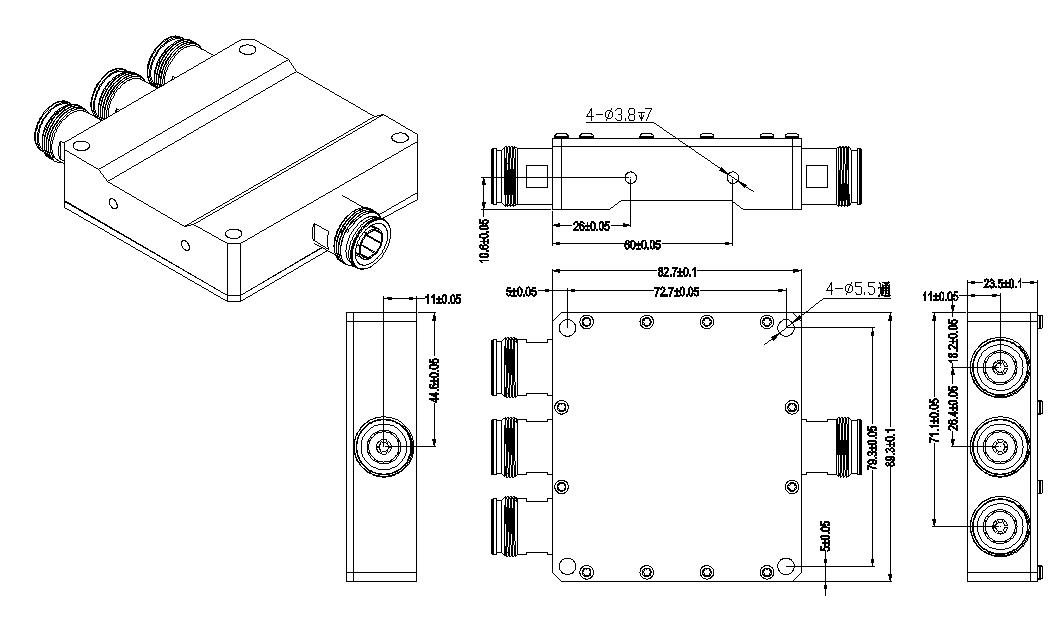

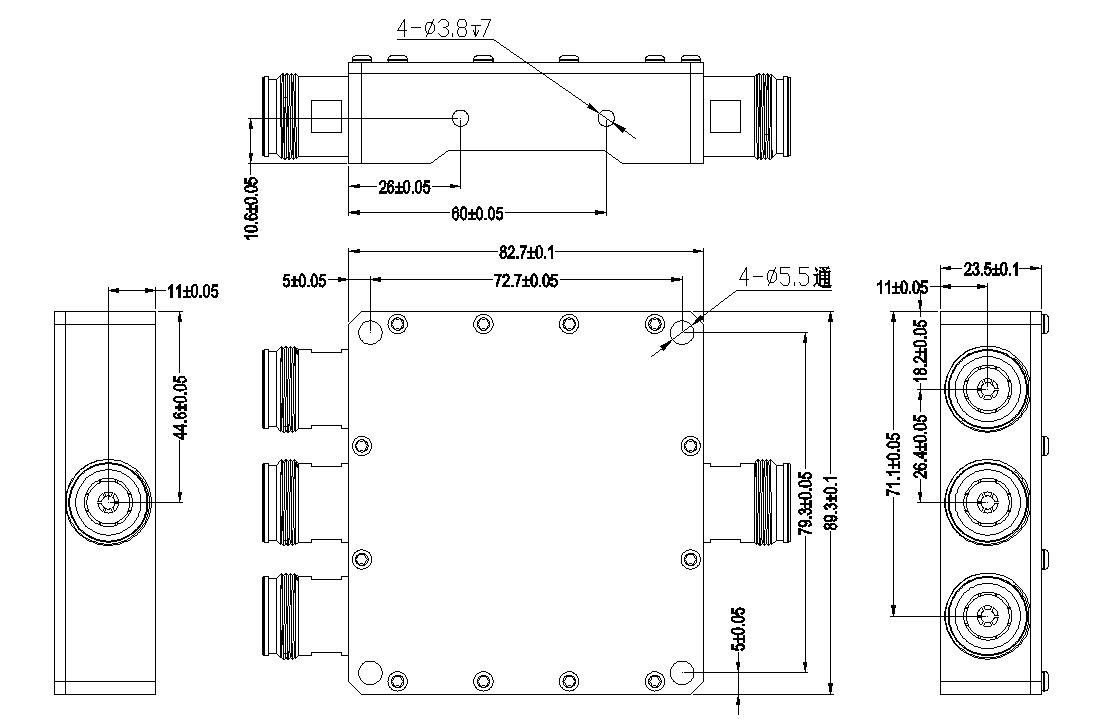

Outline drawing : 3 way
