Electrical

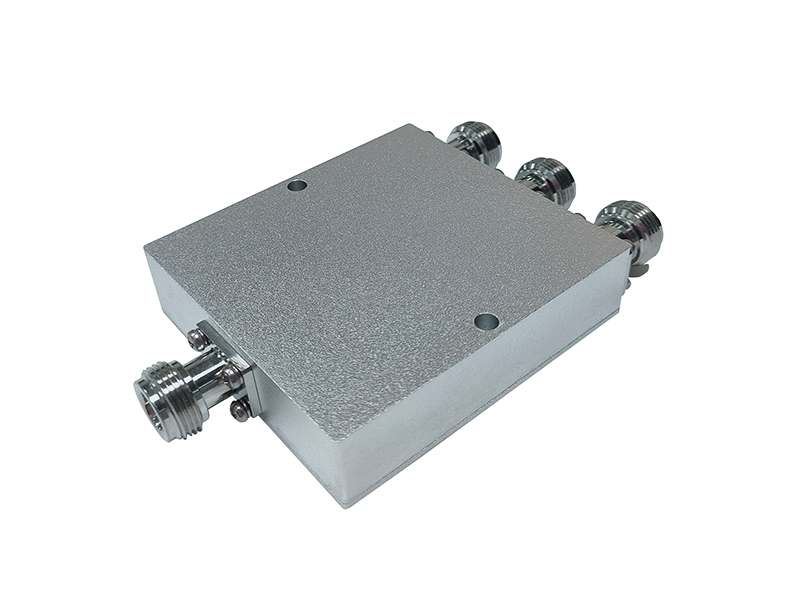

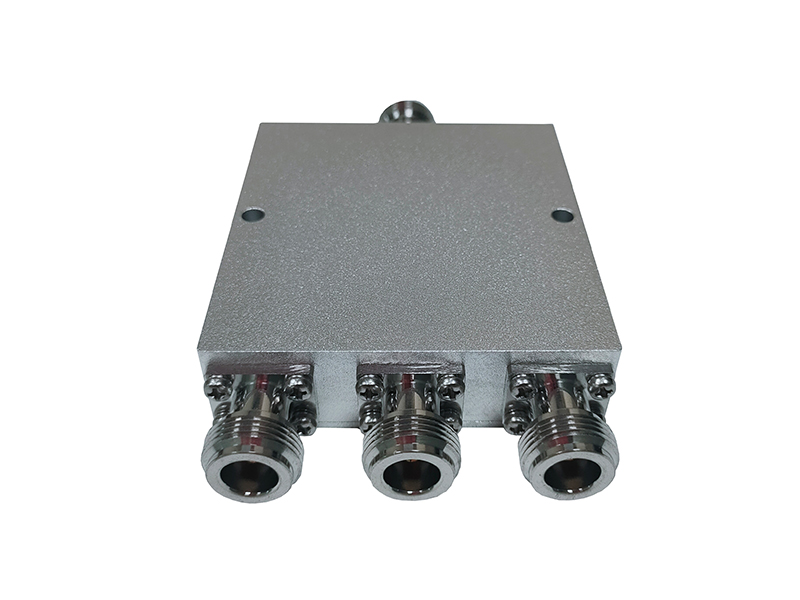

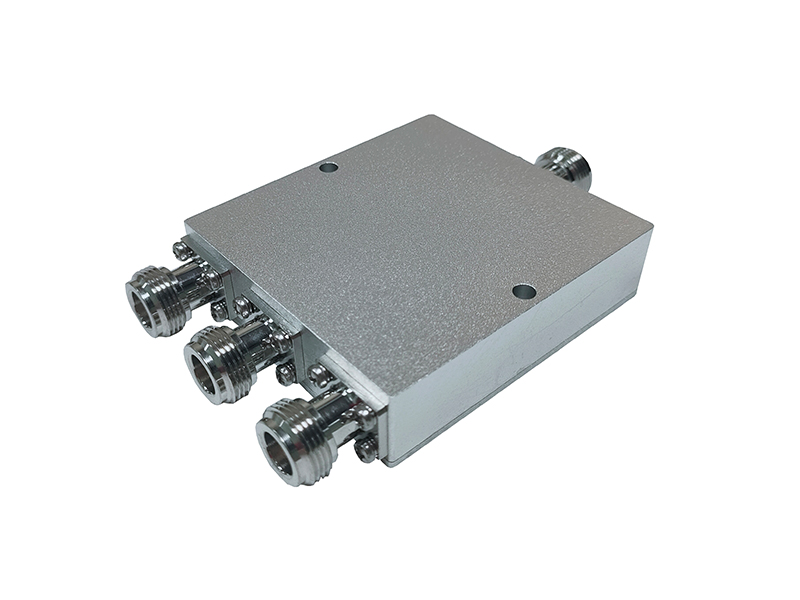

Model No. | HTWPS-3560-02-NF | HTWPS-3560-03-NF | HTWPS-3560-04-NF |
Frequency(MHz) | 3500-6000 | ||
Input Port Number | 1 | ||
Output Port Number | 2 | 3 | 4 |
Split Loss(dB) | 3.0 | 4.8 | 6.0 |
Insertion loss(dB) | ≤0.6 | ≤0.8 | ≤0.8 |
VSWR | ≤1.25 | ≤1.25 | ≤1.25 |
Isolation(dB) | ≥20 | ≥20 | ≥20 |
Amplitude Balance(dB) | ±0.2 | ±0.5 | ±0.3 |
Phase Balance | ±3° | ±5° | ±3° |
Impedance (Ω) | 50 | ||
Power Rating | 30 W (avg.) | ||
Connector | N- Female | ||
Color | black | ||
Weight(kg) | 0.2 | 0.35 | 0.35 |
Dimensions(mm) excl connector | 34*43*20 | 76*70*20 | 49*97*20 |
Environment
Operation temperature |
|
Storage temperature |
|
Relative humidity | 5% - 95% |
Application | Indoor or outdoor (IP65) |
