l Reactive Power Splitter Design ·
l High Power handling 500watts·
l Low PIM Optional,-150dBC~-165dBC@43dBm*2 ·
l Good Flatness
Specifications :
Part No. | HT-PS02-5560-4F |
Operating Frequency ( MHz ) | 550-6000 |
Impedance ( Ohm ) | 50 |
VSWR | ≤ 1.3 |
Split Loss (dB) | ≤ 3.6 |
IM3 (dBc @ 2×43dBm) | -150～-165 |
Application | Indoor & Outdoor |
Degree of Protection | IP65 |
Operating Temperature ( C ) | -40 ~ + 80 |
Interface | 4.3-10 Female |
Handling Power (Watt, max) | 500 |
Peak Power (Watt, max) | 1500 |
Dimension (mm)(L×W×H, excl connector) | 218×25×25 |
Net Weight (g) | 405±5% |

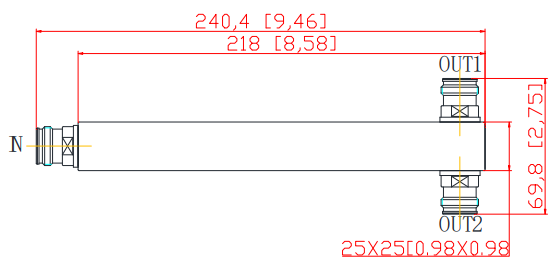

Outline Drawing :
