2000-8000MHz 2 way Power Divider SMA Female
Specification:
Part No. | HT-PD-02-2080-SMA/F |
Frequency range (MHz) | 2000-8500 |
Insertion Loss(dB) | ≤0.6dB |
IN VSWR | Typ1.16/Max1.2 |
OUT VSWR | Typ1.16/Max1.2 |
Isolate | Typ22/Min20 |
Amplitude balance | ≤±0.4 |
Phase balance | ≤±4° |
Impedance(Ω) | 50 |
Power(W) | 20w |
Connector type | SMA-F |
Temperature （℃） | -45~+85 |
Dimensions(mm) | 32*26*11 |

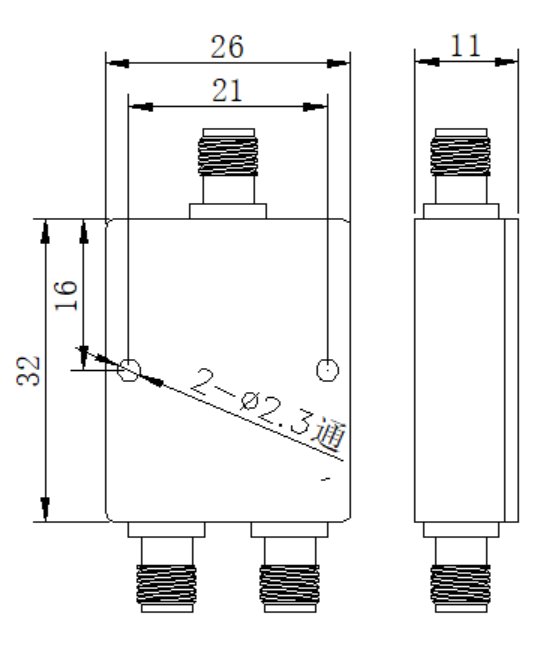

Outline drawing&Product picture:
We take pride in our customer service and aim to provide 5-star support. If you have any questions about our products, feel free to call or email us.
Call 24Hr / 7Days
+86 198-2655-1792A Power Splitter, also known as a power divider, is a passive device used in RF (Radio Frequency) communication systems to split an input signal into multiple output signals with equal or unequal power distribution. This allows for signal distribution to multiple components or antennas from a single source. Functionality: Power splitters divide the input signal power into two or more output signals while maintaining impedance matching and phase coherence. They typically operate across a wide frequency range and are essential components in many RF systems for signal distribution and combining purposes. Applications: 1:Microwave Links: Applied in microwave communication systems for signal splitting and distribution. Advantages of Our Product: 2:Customization: We offer customizable solutions to meet specific requirements, including frequency bands, power levels, and port configurations, providing flexibility for various applications.
