2000-8000MHz 4 way Power Divider SMA Female
Specification:
Part No. | HT-PD-04-2080-SMA/F |
Frequency range (MHz) | 2000-8000 |
Insertion Loss(dB) | ≤1.2dB |
IN VSWR | Typ1.25/Max1.35 |
OUT VSWR | Typ1.15/Max1.3 |
Isolate | Typ22/Min20 |
Amplitude balance | ≤±0.4 |
Phase balance | ≤±4° |
Impedance(Ω) | 50 |
Power(W) | 20 |
Connector type | SMA-F |
Temperature （℃） | -45~+85 |
Dimensions(mm) | 55*50*10 |

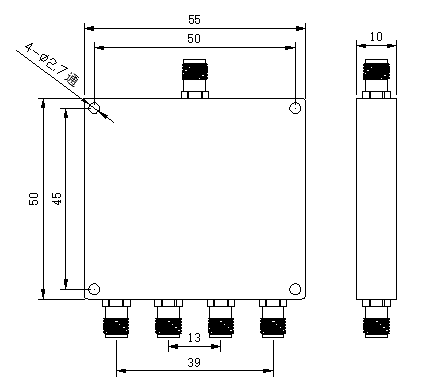

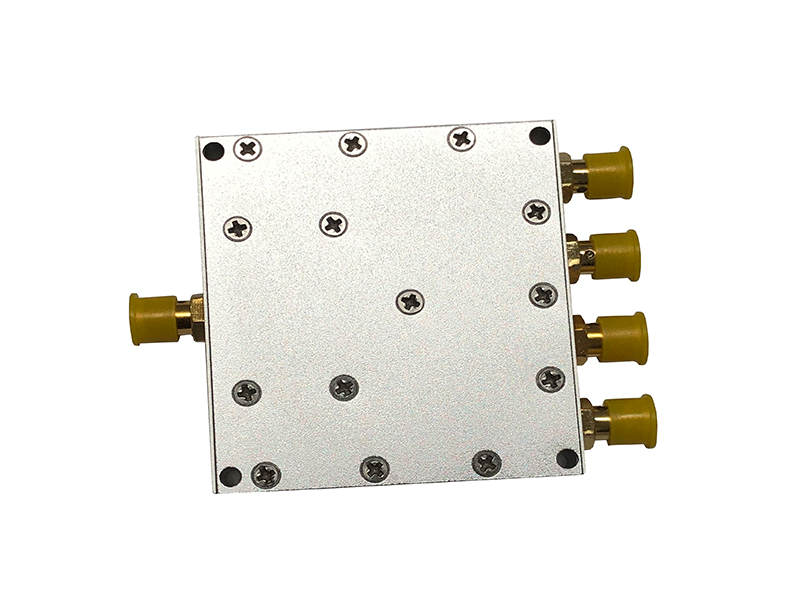

Outline drawing&Product picture:
