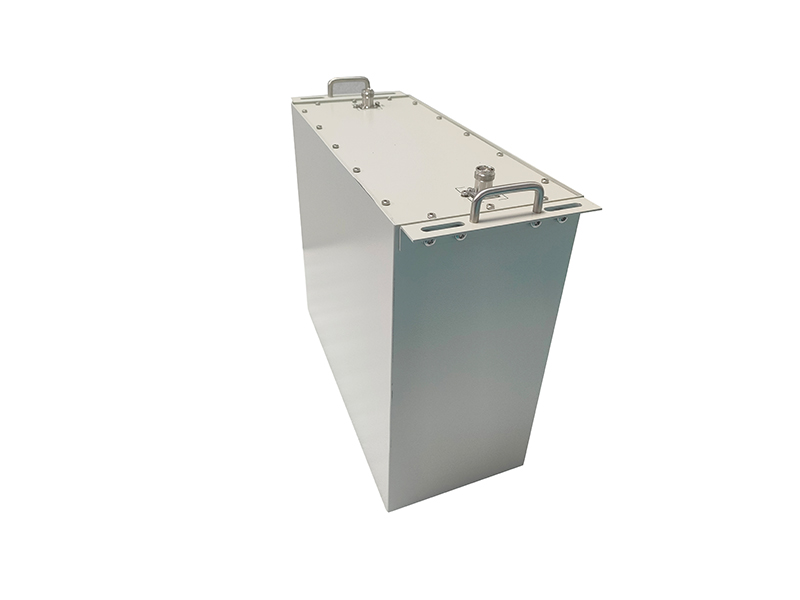

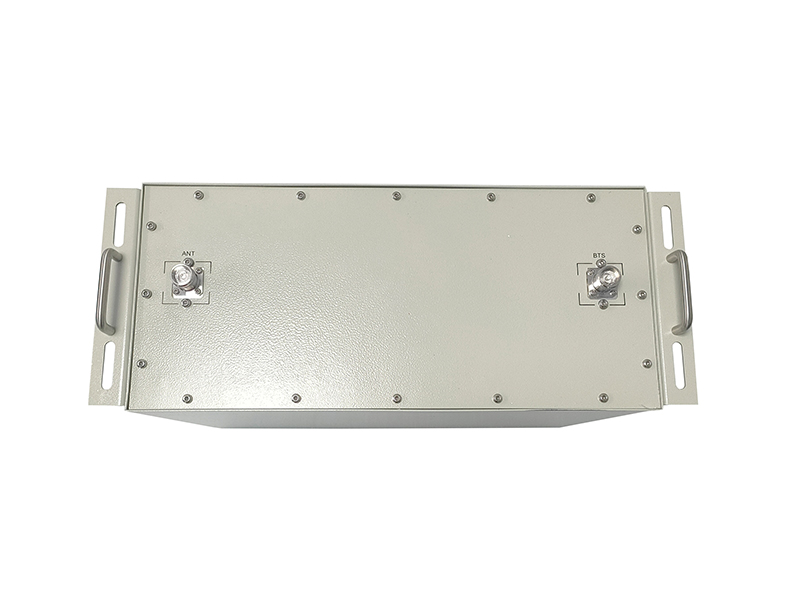

HTFL-0727-PMO

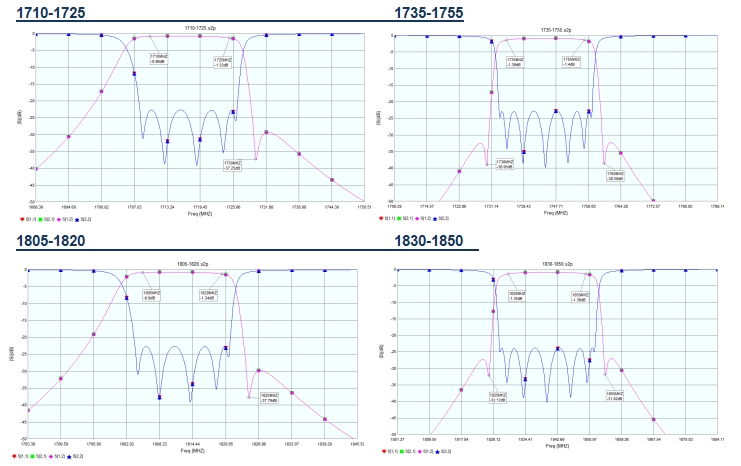

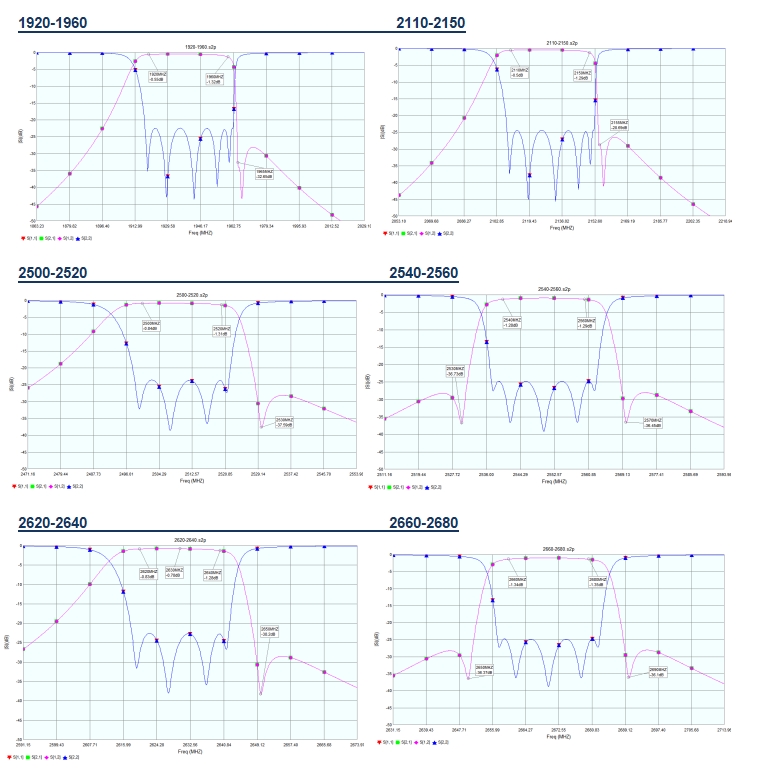

Freq(MHz) | 1710-1725 1735-1755 1805-1820 1830-1850 1920-1960 2110-2150 2500-2520 2540-2560 2620-2640 2660-2680 | 703-803
|
Insertion Loss(dB) | ≤1.5 | ≤1.0 |
Out-of-band inhibition(dB) | ≥25@1730MHz ≥25@1760MHz ≥25@1785MHz ≥25@1830MHz ≥25@1855MHz ≥25@1965MHz ≥25@2155MHz ≥25@2530MHz ≥25@2570MHz ≥25@2650MHz ≥25@2690MHz | |
Return loss/VSWR | ≤-18dB/1.3 | |
Intermodulation (dBc) | ≤-150dBc@2*43dBm (RX Band) | |
Impedance | 50 ohm | |
Input power (W) | 100 W | |
Operation temperature | -0°C to +55°C | |
Storage temperature | -20°C to +75 °C | |
Degree of protection | Indoor | |
Connector | 4310-Female | |
Relative Humidity | 5%-95% | |

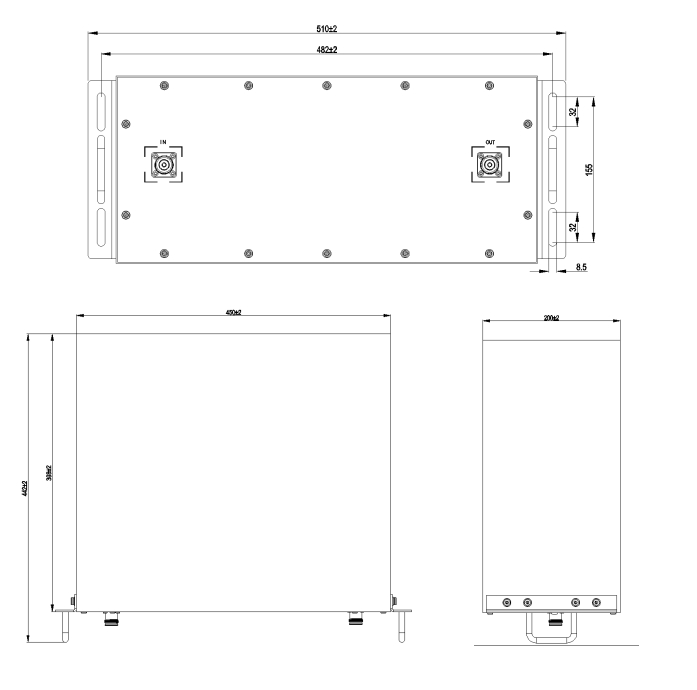

Dimensions(WxHxD) without mounting brackets | 450*398*200mm | |
We take pride in our customer service and aim to provide 5-star support. If you have any questions about our products, feel free to call or email us.
Call 24Hr / 7Days
+86 198-2655-1792Filters are critical components in RF communication systems, serving to selectively pass or reject certain frequencies while attenuating others. Our company specializes in designing and manufacturing high-performance filters tailored to meet the stringent demands of modern RF applications. Function and Role: Signal Clarity: RF filters are designed to pass or block specific frequencies within a signal, allowing the transmission of desired frequencies while reducing unwanted interference and noise. This process ensures cleaner and more reliable communication channels. Advantages of Hustin RF Filters: Superior Performance: Hustin filters offer high selectivity and stop-band attenuation, providing precise filtering for complex frequency environments.
View More
Filters are critical components in RF communication systems, serving to selectively pass or reject certain frequencies while attenuating others. Our company specializes in designing and manufacturing high-performance filters tailored to meet the stringent demands of modern RF applications. Function and Role: Signal Clarity: RF filters are designed to pass or block specific frequencies within a signal, allowing the transmission of desired frequencies while reducing unwanted interference and noise. This process ensures cleaner and more reliable communication channels. Advantages of Hustin RF Filters: Superior Performance: Hustin filters offer high selectivity and stop-band attenuation, providing precise filtering for complex frequency environments.
View More
Filters are critical components in RF communication systems, serving to selectively pass or reject certain frequencies while attenuating others. Our company specializes in designing and manufacturing high-performance filters tailored to meet the stringent demands of modern RF applications. Function and Role: Signal Clarity: RF filters are designed to pass or block specific frequencies within a signal, allowing the transmission of desired frequencies while reducing unwanted interference and noise. This process ensures cleaner and more reliable communication channels. Advantages of Hustin RF Filters: Superior Performance: Hustin filters offer high selectivity and stop-band attenuation, providing precise filtering for complex frequency environments.
View More
The waveguide filter functions as a selective barrier that passes or blocks RF signals based on their frequency. It is essentially a device that separates or combines different frequency signals, ensuring the quality and integrity of the transmitted or received signal. This makes it essential for maintaining signal clarity and efficiency within communication systems. Applications: Hustin waveguide filters are primarily used in antenna distribution systems (like transmitter and receiver systems), indoor coverage systems, and any environment where precise control over RF signals is required. They play a crucial role in wireless communication infrastructures such as telecommunications, broadcasting, military, and satellite communication systems. Advantages: High Performance: Hustin waveguide filters offer superior performance with minimal insertion loss and high rejection capability, ensuring the best possible signal quality.
View More
The waveguide filter functions as a selective barrier that passes or blocks RF signals based on their frequency. It is essentially a device that separates or combines different frequency signals, ensuring the quality and integrity of the transmitted or received signal. This makes it essential for maintaining signal clarity and efficiency within communication systems. Applications: Hustin waveguide filters are primarily used in antenna distribution systems (like transmitter and receiver systems), indoor coverage systems, and any environment where precise control over RF signals is required. They play a crucial role in wireless communication infrastructures such as telecommunications, broadcasting, military, and satellite communication systems. Advantages: High Performance: Hustin waveguide filters offer superior performance with minimal insertion loss and high rejection capability, ensuring the best possible signal quality.
View More
The waveguide filter functions as a selective barrier that passes or blocks RF signals based on their frequency. It is essentially a device that separates or combines different frequency signals, ensuring the quality and integrity of the transmitted or received signal. This makes it essential for maintaining signal clarity and efficiency within communication systems. Applications: Hustin waveguide filters are primarily used in antenna distribution systems (like transmitter and receiver systems), indoor coverage systems, and any environment where precise control over RF signals is required. They play a crucial role in wireless communication infrastructures such as telecommunications, broadcasting, military, and satellite communication systems. Advantages: High Performance: Hustin waveguide filters offer superior performance with minimal insertion loss and high rejection capability, ensuring the best possible signal quality.
View More
Filters are critical components in RF communication systems, serving to selectively pass or reject certain frequencies while attenuating others. Our company specializes in designing and manufacturing high-performance filters tailored to meet the stringent demands of modern RF applications. Function and Role: Signal Clarity: RF filters are designed to pass or block specific frequencies within a signal, allowing the transmission of desired frequencies while reducing unwanted interference and noise. This process ensures cleaner and more reliable communication channels. Advantages of Hustin RF Filters: Superior Performance: Hustin filters offer high selectivity and stop-band attenuation, providing precise filtering for complex frequency environments.
View More
Filters are critical components in RF communication systems, serving to selectively pass or reject certain frequencies while attenuating others. Our company specializes in designing and manufacturing high-performance filters tailored to meet the stringent demands of modern RF applications. Function and Role: Signal Clarity: RF filters are designed to pass or block specific frequencies within a signal, allowing the transmission of desired frequencies while reducing unwanted interference and noise. This process ensures cleaner and more reliable communication channels. Advantages of Hustin RF Filters: Superior Performance: Hustin filters offer high selectivity and stop-band attenuation, providing precise filtering for complex frequency environments.
View More
Filters are critical components in RF communication systems, serving to selectively pass or reject certain frequencies while attenuating others. Our company specializes in designing and manufacturing high-performance filters tailored to meet the stringent demands of modern RF applications. Function and Role: Signal Clarity: RF filters are designed to pass or block specific frequencies within a signal, allowing the transmission of desired frequencies while reducing unwanted interference and noise. This process ensures cleaner and more reliable communication channels. Advantages of Hustin RF Filters: Superior Performance: Hustin filters offer high selectivity and stop-band attenuation, providing precise filtering for complex frequency environments.
View More
Filters are critical components in RF communication systems, serving to selectively pass or reject certain frequencies while attenuating others. Our company specializes in designing and manufacturing high-performance filters tailored to meet the stringent demands of modern RF applications. Function and Role: Signal Clarity: RF filters are designed to pass or block specific frequencies within a signal, allowing the transmission of desired frequencies while reducing unwanted interference and noise. This process ensures cleaner and more reliable communication channels. Advantages of Hustin RF Filters: Superior Performance: Hustin filters offer high selectivity and stop-band attenuation, providing precise filtering for complex frequency environments.
View More
