Specifications :
Part No. | 9508213350 |
Frequency range | 3500-3685MHz |
Insertion loss | ≤1.0dB@3500-3650MHz ≤3.0dB@3685MHz |
Rejection | ≥50dB@3700MHz |
VSWR | ≤1.4 |
Impedance | 50Ω |
Input power | 20W(avg.) |
Operation temperature | -20°C to +65°C |
Storage temperature | -40°C to +85°C |
Application | Indoor or outdoor （IP67） |
Weight | 0.45kg Approx |

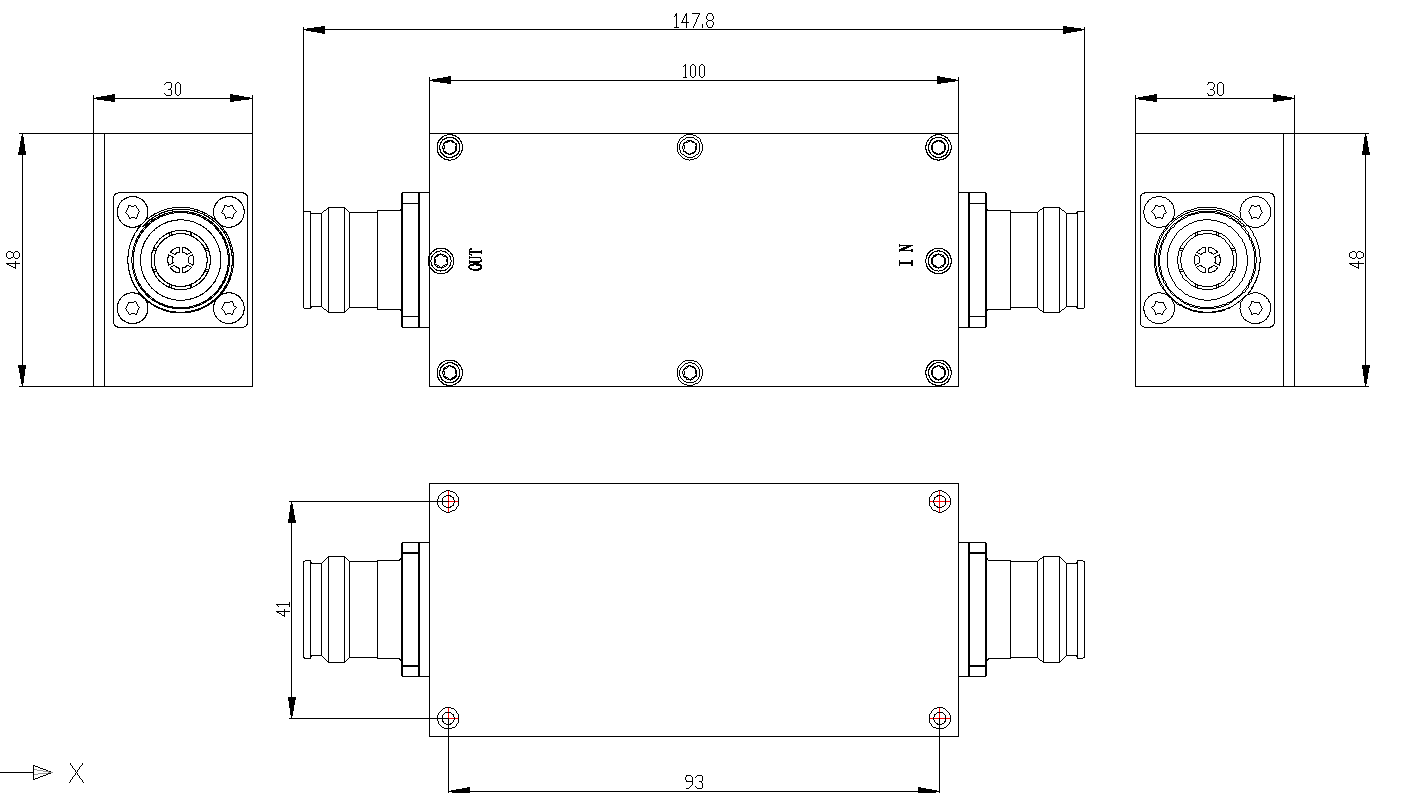

Dimensions | 100*48*30mm（without connector） |
RF Connectors | 4310-Female |
