Specifications :
Part No. | 9608211820 |
Electricals | |
Center Frequency (MHz) | 2595 |
Bandwidth(MHz) | 2570-2620 |
Insertion Loss(dB) | ≤1.0(Full temperature) |
Return Loss(dB) | ≥15(Full temperature) |
Out-of-band Rejection | ≥70 dB @ DC-1300 MHz ≥40 dB @ 1350-2460MHz ≥40 dB @ 2750-4000MHz ≥70 dB @ 4100-8000MHz
|
Power Capacity | 3W (Max.) |
Operating temperature | -40℃~+85℃ |
Mechanicals | |
Connectors | SMA- Female |
Dimensions | 45*18*18mm(Screws included) |
Surface Treatment | Epoxy black paint |
Weight | 35g（Max.） |
Environmental | |
Height (Feet) | 20000 |
Protection Grade | IP67 |
Humidity(℃) | -35 to +95 |
Mould | MIL-STD-810G Method 508.6 |
Vibration | MIL-STD-810G Method 514.6 |
Salt Fog | MIL-STD-810G Method 509.5 |

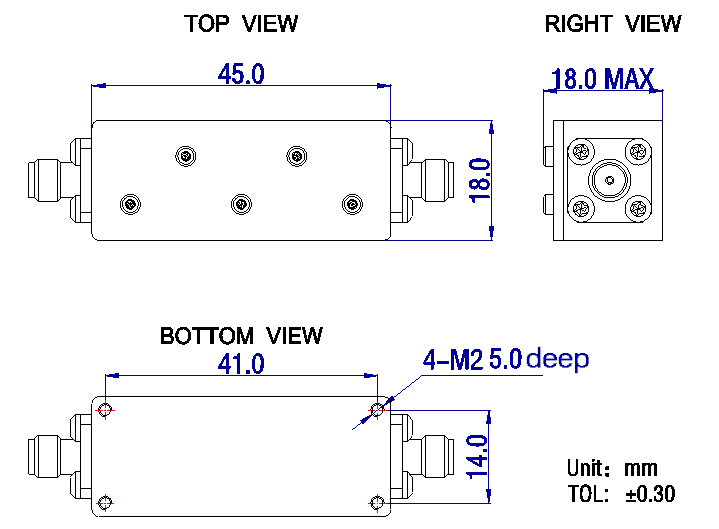

Outline drawing :
We take pride in our customer service and aim to provide 5-star support. If you have any questions about our products, feel free to call or email us.
Call 24Hr / 7Days
+86 198-2655-1792Filters are critical components in RF communication systems, serving to selectively pass or reject certain frequencies while attenuating others. Our company specializes in designing and manufacturing high-performance filters tailored to meet the stringent demands of modern RF applications. Function and Role: Signal Clarity: RF filters are designed to pass or block specific frequencies within a signal, allowing the transmission of desired frequencies while reducing unwanted interference and noise. This process ensures cleaner and more reliable communication channels. Advantages of Hustin RF Filters: Superior Performance: Hustin filters offer high selectivity and stop-band attenuation, providing precise filtering for complex frequency environments.
