Specifications :
Model No. | HT-CON-DC11-NM |
Electrical characteristics | |
According to | IEC60169-16 |
Frequency | DC-11GHz |
Dielectric Withstanding Voltage | ≥2500V RMS,50Hz,at sea level |
Dielectric Resistance | ≥5000MΩ |
VSWR | ≤1.2 |
Insertion Loss(DC-4GHz) | ≤0.1dB |
Impedance | 50 ohm |
Connectors | N-M |
Mechanical | |
Durability | Mating cycles ≥500 cycles |
Material and plating | |
Body | Brass |
Material | plating |
Center conductor Insulator | Brass PTFE |
Environmental | |
Temperature Range | -40℃～+85℃ |
Watertightness | IP68 |
RoHS-compliance | Full RoHS compliance |
Salt-fog test | 96h |
HT Part code | 6008687302 |

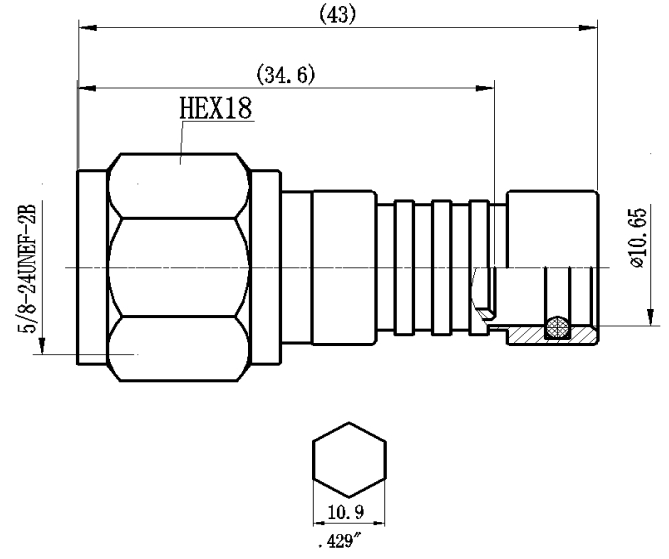

Outline drawing :
