7-16 (DIN) coaxial connectors-high-quality coaxial connector with low attenuation and inter-modution. Tran-smission of medium to high power with radio transmitters and low PIM transmission of received signals such as in mobile phone base stations are typical applications due to their high mechanical stability and best possi-ble weather resistance .
Part No. | 7/16F-1/2HR |
Electrical Performance | |
Characteristic Impedance | 50 ohm |
Frequency Range | DC-3GHz |
VSWR | ≤1.12 (DC-3GHz) |
PIM3 | ≤-155dBc |
Dielectric Withstanding Voltage | ≥4000V RMS,50Hz,at sea level |
Dielectric Resistance | ≥10000MΩ |
Contact Resistance | Center Contact ≤0.4mΩ Outer Contact ≤0.2mΩ |
Durability | Mating cycles ≥500 |
Material and plating | |
Body | Brass, Tri-Alloy plating |
Insulator | PTFE, NATURAL |
Contact PIN | Phosphor Bronze,Ag plating |
Environmental | |
Temperature Range | -40℃～+85℃ |
Waterproof(1m water depth, 24hours) | IP68 |
RoHS | Full RoHS-Compliance |

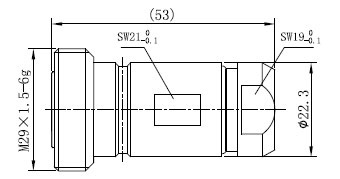

Outline drawing :
