4.3-10 connector system is designed to meet the rising performance needs of mobile network equipment e.g. to connect the RRU to the antenna. The small size and low weight of these connectors do justice to the miniaturization of mobile radio network components. Despite their size, the connectors guarantee excellent return loss and passive inter-modulation performance (PIM) levels.
Three different coupling mechanisms of the plug connectors screw, quick-lock/push-pull and hand-screw types are mateable with all jack connectors. All of the 4.3-10 connectors meet the requirements of IP68 and, because of the excellent properties of materials used, are suitable for temperatures ranging from -40°C up to +85°C. Customized connector designs for use at higher temperatures are also possible on demand .
Part No. | 4.3/10-JW1/2S |
Electrical Performance | |
Characteristic Impedance | 50 ohm |
Frequency Range | DC-6GHz |
VSWR | ≤1.1 (DC-4GHz),≤1.2(4-6GHz) |
PIM3 | ≤-160dBc |
Dielectric Withstanding Voltage | ≥2500V RMS,50Hz,at sea level |
Dielectric Resistance | ≥5000MΩ |
Contact Resistance | Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ |
Durability | Mating cycles ≥500 |
Material and plating | |
Body | Brass, Tri-Alloy plating |
Insulator | PTFE, NATURAL |
Contact PIN | Brass,Ag plating |
Environmental | |
Temperature Range | -40℃～+85℃ |
Waterproof(1m water depth, 24hours) | IP68 |
RoHS | Full RoHS-Compliance |

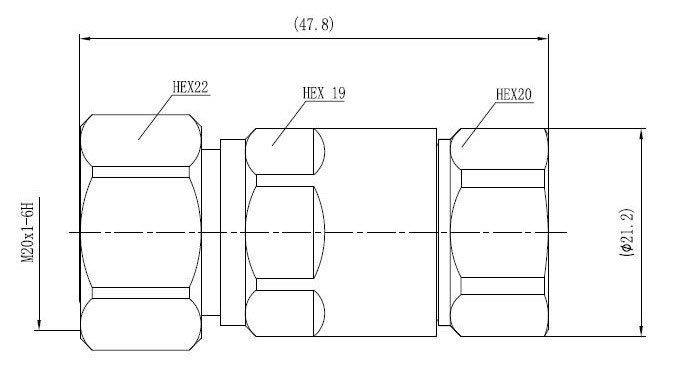

Outline drawing :
