l High RF performance, ultra-competitive price.
l Military, space and commercial applications.
l Custom design available upon request.
Specifications :
Part No. | HT-HC-21-UHF-NF |
Electricals | |
Frequency | 400-470MHz |
Coupling | 3.0dB |
Insertion Loss | ≤0.5dB |
VSWR | ≤1.25 |
Isolation | ≥25dB |
Impedance | 50 ohm |
RF Connector | N-Female |
Power | 200W |
Temperature | -20~+85℃ |
Humidity | 5%-95% |
Color | Black |

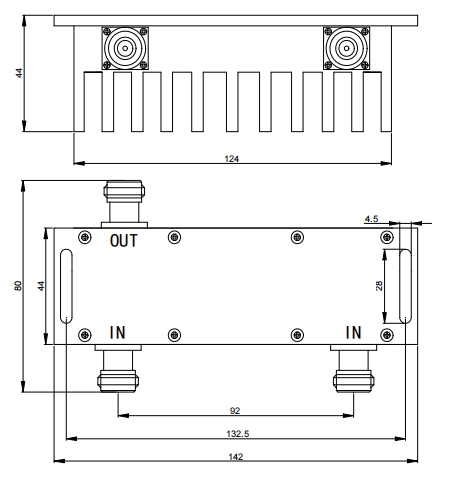

Dimension | 142*80*44mm |
Weight | 0.50kg |
HT Part Code | 6008585001 |

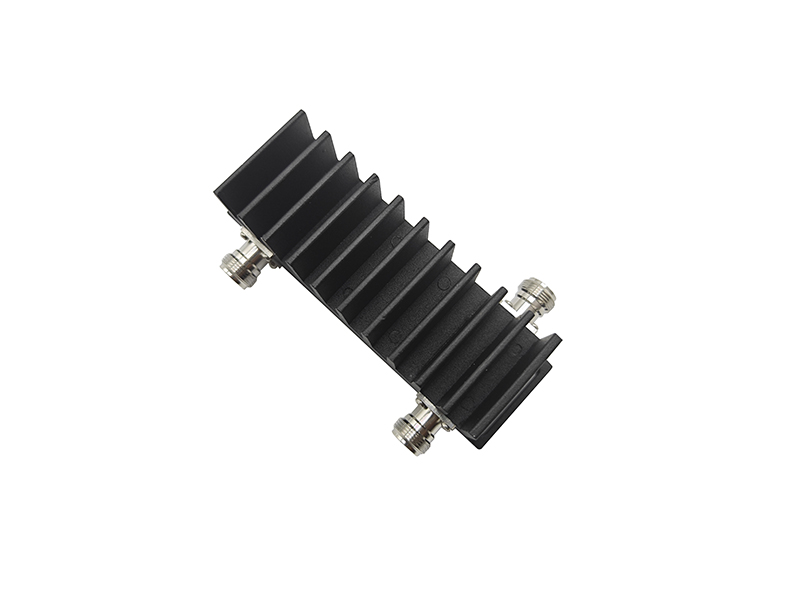

Product Image :
We take pride in our customer service and aim to provide 5-star support. If you have any questions about our products, feel free to call or email us.
Call 24Hr / 7Days
+86 198-2655-1792A directional coupler is a crucial component in RF communication systems, facilitating the measurement of power levels and the separation of signals. It works by coupling a portion of the electromagnetic power passing through it to another port while maintaining the integrity of the main signal path. This allows for monitoring, feedback, or signal distribution without interfering with the main signal flow. Hustin directional coupler excels in several key aspects: 1:Precision Coupling: Hustin couplers ensure accurate and reliable coupling ratios, enabling precise power monitoring and control within the system. 2:Reliability and Durability: Built with high-quality materials and rigorous testing procedures, Hustin couplers ensure long-term reliability and stable operation in demanding environments. Applications of Hustin directional couplers span a wide range of industries and scenarios, including: 1：Telecommunications infrastructure 2：Wireless networking 3：Satellite communication systems
