l Strip-line and air-dielectric design ·
l Wide band frequency 600-4200MHz·
l High isolation and good VSWRs ·
l Low PIM
Specifications :
Part No. | HT-HC33-0642-DF |
Operating Frequency ( MHz ) | 600-4200 |
Impedance ( Ohm ) | 50 |
VSWR | 1.3 |
Coupling (dB) | 5.1 |
Insertion Loss (dB) | ±1.5 |
Isolation (dB) | 20 |
IM3 (dBc @ 2×43dBm) | -160 |
Application | Indoor & Outdoor |
Degree of Protection | IP65 |
Operating Temperature ( C ) | -40 ~ + 80 |
Interface | DIN - Female |
Handling Power (Watt, max) | 500 |
Peak Power (Watt, max) | 1500 |
Dimension (mm)(L×W×H, excl connector) | 264×110×38 |
Net Weight (g) | 2085 |

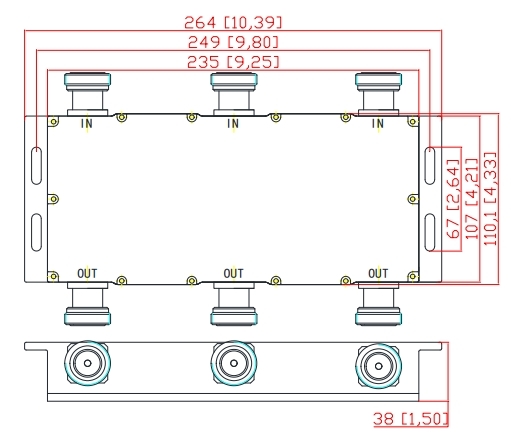

Outline Drawing :
